Conveyor belt laboratory for cooling extrudates
Achieve precise temperature control for high-temperature extrudates with a versatile conveyor belt that integrates cooling systems to ensure product quality and consistency in continuous processing lines.
Cools and Conveys High-Temperature Extrudates

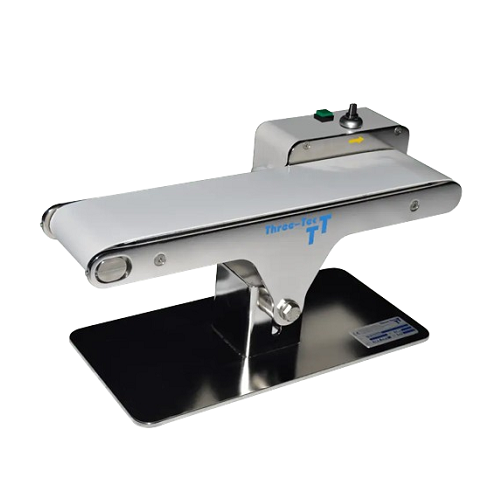

The Conveyor Belt Laboratory from Three-Tec GmbH is designed for precise extrudate cooling in industries such as polymer processing, food, and pharmaceuticals. It features adjustable belt speeds from 0 to 6.5 m/min, capable of handling product temperatures up to 300 °C. Optional cooling systems, utilizing either water or air, enhance thermal management to ensure gentle and efficient cooling. The belt, available in silicone or PTFE, maintains continuous operation temperature resistance from -30 to 150 °C, supporting both short and continuous processes. The adjustable height and angle facilitate seamless integration into existing lines, providing adaptability for extrusion equipment manufacturers and process integrators. With an integrated potentiometer for control, the system assures precision in conveying operations. Suitable for complex laboratory setups or industry-scale production, this equipment can be further customized to meet specific processing needs.
Benefits
- Enhances cooling efficiency with optional water or air systems, ensuring optimal extrudate conditions.
- Adapts to various production line configurations with adjustable height and angle features.
- Supports high-temperature operations up to 300 °C, broadening application potential across industries.
- Facilitates precise conveying with a variable-speed control, optimizing throughput.
- Offers material versatility with silicone or PTFE belts for durability and chemical compatibility.
- Applications
- Extrudates,Rubber products,Food processing,Polymer processing,Pharmaceuticals
- End products
- Granola bars,Thermoplastic elastomers,Polymer film,Gel capsules,Rubber seals
- Steps before
- Extrusion,Shaping
- Steps after
- Cooling,Packaging
- Input ingredients
- extrudate,materials up to 300 °C
- Output ingredients
- cooled extrudate,processed materials
- Market info
- Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.
- Belt speed
- 0 to 6.5 m/min
- Max. product temperature
- 300 °C
- Height
- 160-200 mm (adjustable)
- Length
- 500/1,000/2,000 mm
- Width
- 100 mm
- Angle
- Manually adjustable
- Temperature resistance (continuous operation)
- -30 to 150 °C
- Temperature resistance (short operation)
- -50 to 180 °C
- Voltage
- 100 to 240 VAC
- Frequency
- 50 / 60 Hz
- Control
- Potentiometer
- Material conveyor belt
- Silicone or PTFE
- Belt speed control
- 0 to 6.5 m/min
- Automation level
- Potentiometer / Optional direct control
- Temperature management
- Max product temperature 300 °C
- Cooling method
- Water/air tank cooling option
- Height and angle adjustment
- Manually adjustable
- High temperature resistance
- Up to 300 °C
- Low temperature resistance
- -50 to 180 °C (short operation)
- Durability in continuous operation
- -30 to 150 °C
- Material type
- Silicone or PTFE
- Cooling method
- Water/air cooling tank (optional)
- Machine footprint
- Length 500/1'000/2'000 mm,Width 100 mm,Height 160-200 mm (adjustable)
- Belt material
- Silicone or PTFE
- Belt speed
- 0 to 6.5 m/min
- Max. product temperature
- 300 °C
- Belt angle
- Manually adjustable
- Temperature resistance continuous operation
- -30 to 150 °C
- Temperature resistance short operation
- -50 to 180 °C
- Control panel type
- Potentiometer / Integrated / External
- Cooling system
- Cooling tank / Air cooling
- Conveyor belt material
- Silicone / PTFE
- Belt speed control
- 0 to 6.5 m/min infinitely variable
- Height adjustment
- 160-200 mm
- Belt angle adjustment
- Manually adjustable
- Voltage
- 100 to 240 VAC
- Frequency
- 50 / 60 Hz
