Continuous flow hydrogenation reactor for corrosive reagents

Transform your hydrogenation processes with a reactor engineered for exceptional chemical resistance, enabling safe and efficient handling of corrosive reagents without the need for hydrogen cylinders.

Generates and Mixes Hydrogen for Flow Reactions

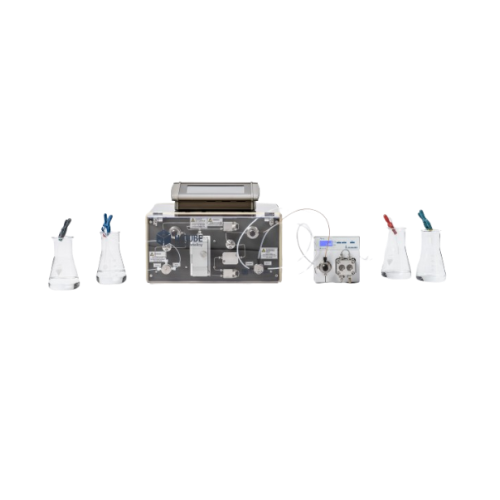

The H-Cube® Pro Hastelloy from ThalesNano is a continuous flow hydrogenation reactor designed for researchers and manufacturers in the pharmaceutical and fine chemical industries. This reactor stands out for its on-demand hydrogen generation from water via electrolysis, eliminating the need for external hydrogen cylinders. Its unique design features Hastelloy C wetted parts, providing superior chemical resistance essential for handling corrosive reagents like mineral acids and bases, as well as oxidizing agents.

Operating within a temperature range of 10 to 150°C and a pressure range up to 100 bar, the H-Cube® Pro Hastelloy efficiently manages hydrogenation processes with fine control over reaction conditions such as pressure, temperature, and flow rate. The integrated microHPLC pump ensures accurate solvent delivery, which, when mixed with hydrogen, supports a stable reaction environment.

Ideal for producing active pharmaceutical ingredients, custom fine chemical compounds, and specialty polymers, this reactor accommodates reactions with variable scales from milligrams to grams. Its pre-packed CatCart® columns simplify catalyst handling, enhancing throughput and reducing downtime. Suitable for bench-top operations, this equipment is a versatile solution for R&D and processing departments seeking reliable performance in complex hydrogenation applications.

Benefits

  • Enhances safety and convenience by generating hydrogen on demand, eliminating cylinder handling.
  • Provides excellent chemical resistance, allowing work with aggressive reagents without equipment degradation.
  • Increases productivity with precise reaction control and high throughput in continuous operations.
  • Simplifies catalyst management and reduces maintenance time with pre-filled CatCart® columns.
  • Adapts to diverse reaction needs with a flexible temperature and pressure range.

General


Applications
Specialty chemicals,Fine chemicals,Petrochemicals,Catalysts,Pharmaceuticals
End products
Custom fine chemical compounds,Active pharmaceutical ingredients,Specialty oxidized organic compounds,Catalytically modified polymers,Hydrotreating catalysts
Steps before
Reagent preparation,Solution mixing,Reactant solution preparation,Solvent preparation
Steps after
Product collection,Product purification,Post-reaction analysis,Solution separation
Input ingredients
corrosive reagents,mineral acids,bases,strong oxidizers,ferric chlorides,cupric chlorides,nitric acid,formic acid,acetic acid,acetic anhydride,wet chlorine,sea water,brine solutions,hypochlorite solutions,chlorine dioxide solutions
Output ingredients
reaction mixture,product in collection vial
Market info
Thalesnano is known for manufacturing advanced flow chemistry solutions, particularly in catalyst and hydrogenation technologies. They are recognized for their expertise in continuous processes, enhancing safety and efficiency in chemical synthesis.

Technical Specifications


Temperature range
10 to 150°C
Pressure range
Atmospheric pressure to 100 bar
Liquid flow rate
0.1 – 3 mL/min
Optimal liquid flow rates
0.5 – 2 mL/min
Maximum hydrogen production rate
60 Nml/min (in 100% Bub. Det. Mode)
Dimensions
Height
Width
37 cm
Depth
51 cm
Weight
23 kg (46.3 lbs)
Power requirements
115-230 VAC
5A/115 VAC
2.5A/230 VAC
47-63 Hz,300 W
Water reservoir capacity
300 mL

Operating Characteristics


Working mechanism
Continuous flow hydrogenation
Hydrogen generation
On-demand from water
Temperature range
10-150°C
Pressure range
Atmospheric to 100 bar
Flow control
PLC-controlled
Scale of reactions
Milligrams to grams
Corrosive reagent handling
Utilizes Hastelloy for chemical resistance
Hydrogen source
Electrolysis of water
Catalyst management
Pre-filled CatCarts®,no manual handling
Process type
Continuous flow

Material Compatibility


Corrosive resistance (e.g. acids)
Yes,compatible with mineral acids and bases,strong oxidizers
Cleanability
Yes,designed for easy use without catalyst handling
Density/particle size
Applicable to a range of particle sizes in CatCarts

Product type Characteristics


Use of heterogenous catalysts
CatCarts®
Handling of corrosive reagents
Ferric and cupric chlorides,mineral acids

Physical Characteristics


Machine footprint
Width
Weight
23 kg (46.3 lbs)
Material of construction
Hastelloy C
Water reservoir capacity
300 mL
Discharge method
Collection vial
Control panel type
Touch screen

Custom Options


Control panel type
Touch screen interface
Compact footprint
Yes
