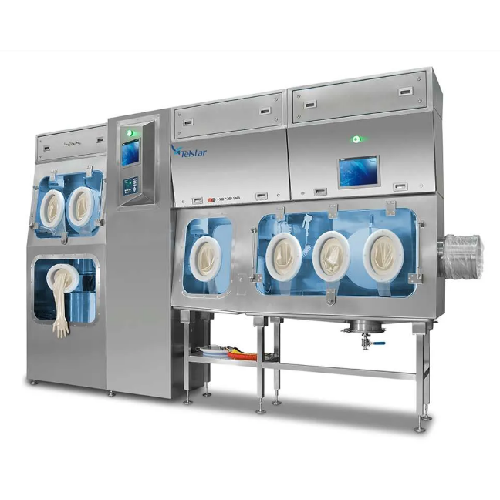

Containment isolators for pharmaceutical and biotech applications

Ensure operator safety and product integrity during the manipulation of hazardous compounds with advanced containment technology tailored for seamless integration within your pharmaceutical production line.

Ensures Safe Containment and Sterility

Telstar’s Containment Isolators are engineered to deliver unparalleled safety and sterility for pharmaceutical and biotech operations. Designed to protect operators and ensure product integrity, these isolators are ideal for handling hazardous materials and sterile injectable drugs. They integrate seamlessly with existing systems and support both stand-alone and continuous operations. Telstar offers customizable designs, including single and multi-chamber options, tailored to client needs. The isolators boast positive and negative pressure capabilities and are constructed from standardized mechanical and electrical components for reliability. With rigorous OEL containment validation to less than 200 picograms/m³ (OEB 8), they comply with GMP and ISO standards, ensuring suitability for cleanrooms of grade D and above. Built in the UK, these isolators feature energy-efficient solutions and ergonomic designs, and they include worldwide maintenance services to support long-term use.

Benefits

  • Enhances operator safety and product sterility with validated containment levels.
  • Customizable configurations ensure seamless integration into existing production lines.
  • Complies with GMP and ISO standards, guaranteeing regulatory adherence.
  • Reduces long-term operational costs with durable, energy-efficient design.
  • Simplifies maintenance and cleaning with user-friendly ergonomic features.

General


Applications
Pharmaceuticals,Active pharmaceutical ingredients (api),Biopharmaceuticals,Biotech,Hazardous materials
End products
Sterile injectable drugs,Cytotoxic compounds,Monoclonal antibodies,Manufactured apis,Oncology drugs,Controlled substances,Protein therapeutics,Vaccine vials,Hazardous chemical intermediates
Steps before
Purification,Emulsification,Grinding
Steps after
Sterility Testing,Packing,Quality Assurance,Calibration
Input ingredients
API products,process tools,hazardous materials
Output ingredients
manipulated API product,processed materials,protected operators
Market info
Telstar is known for specializing in the design, engineering, and manufacturing of advanced vacuum and aerospace solutions, gaining a strong reputation for their innovative and customized equipment in pharmaceutical, medical, and scientific research sectors.

Technical Specifications


Pressure Type
Positive/Negative
Containment Level
Less than 200 picograms/m³ (OEB 8)
Components
Standardized mechanical and electrical
Operation Environment
Cleanrooms grade D and above
Design Approach
Ergonomic
Integration
With OEM / third-party equipment
Construction Location
UK based

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
Air pressure control
Positive/Negative Pressure
Operator safety
Ergonomic Design
Containment level
Less than 200 picograms/m3 (OEB 8)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


GMP Compliance
Yes
ISO Standards
Yes
Good Manufacturing Practice
Yes

Physical Characteristics


Machine footprint
Customized to client requirements
Chamber structure
Single-chamber to Multi-chamber
Control panel type
Ergonomic design
Pressure options
Positive/Negative pressure
Customization level
Standard and bespoke solutions
Integration capability
OEM / Third Party equipment

Custom Options


Pressure Options
Positive/Negative pressure
Integration Capabilities
OEM / Third party equipment integration
Isolator Type
Stand-alone / Integrated
Size Options
Single-chamber / Multi-chamber
Ergonomic Design Options
Advanced ergonomic design
Construction Location
UK based
Green Technology
Extensive use
