Compact water temperature control unit

Achieve precise temperature control in cramped production spaces, enabling consistent product quality and efficient operations for high-stakes manufacturing processes.

Controls Water Temperature for Precise Manufacturing

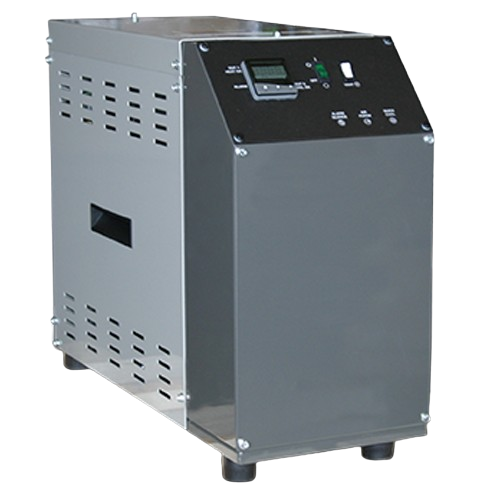

The TrueTemp™ Mini Series Water Temperature Control Unit from AEC is designed for precision temperature regulation in constrained production environments, making it ideal for plastic, automotive, and electronics manufacturing. This compact unit features a microprocessor-based PID controller that delivers exact temperature control with a leave-water temperature range of 32°F to 250°F. It integrates seamlessly into production lines with optional features like remote start/stop and RS232/RS485 communications. Available in heater configurations of 3kW, 6kW, or 9kW, it ensures efficient energy use and supports a range of applications from medical syringes to automotive dashboards. Built with non-ferrous construction for durability, it is equipped with a pressure switch and safety thermostat to maintain optimal operating conditions. Compliance with UL/cUL standards and availability in various voltage options make it versatile for global operations, while caster options enhance mobility within your facility.

Benefits

  • Enhances product quality with precise temperature regulation.
  • Optimizes energy efficiency through configurable heater capacities.
  • Increases operational flexibility with compact, mobile design.
  • Reduces maintenance time with easy-access removable panels.
  • Improves safety with built-in high-temperature and pressure controls.

General


Applications
Food and beverage packaging,Medical devices,General manufacturing,Injection molding,Packaging,Plastic manufacturing,Electronics,Automotive parts
End products
Medical syringes,Automotive dashboards,Household appliance parts,Beverage bottles,Plastic containers,Food packaging films,Plastic toys,Electronic casings
Steps before
Material Handling,Pre-heating,Blending
Steps after
Cooling,Packing,Quality Inspection
Input ingredients
water,electrical power
Output ingredients
heated water,temperature controlled water
Market info
AEC (ACS Group) is known for manufacturing industrial equipment such as cooling, heating, and conveying solutions, serving various industries with a reputation for high-quality engineered-to-order systems and reliable customer support.

Technical Specifications


Operating Temperature Range
32°F to 250°F (0°C to 121°C)
Heater Configurations
3kW,6kW,9kW
Maximum Operating Pressure
150 psig
Process Pump Power
1/2 – 3/4 hp
Electrical Enclosure Type
NEMA 1
Controller Type
1/16 DIN microprocessor based PID
Operating Voltages
208/3/60,230/3/60,400/3/50,575/3/60
Connection Size
3/4"
Safety Thermostat
Independent high temperature

Operating Characteristics


Operating temperature range
32°F to 250°F (0°C to 121°C)
Heater configuration
3kW,6kW,9kW
Control type
Microprocessor-based PID controller
Pressure tolerance
150 psig
Automation level
RS232,RS485,RS485-SPI communications
Safety features
Independent high temperature safety thermostat
Water flow control
Pressure regulator/relief valve
Pump capacity
1/2 - 3/4 hp process pumps

Material Compatibility


Corrosive resistance (e.g. acids)
Non-ferrous construction
Cleanability
Easily removable panels

Physical Characteristics


Compact footprint
Yes
Control panel type
1/16 DIN microprocessor based PID controller
Discharge method
3/4” connections
Operating temperature range
32°F to 250°F (0°C to 121°C)
Heater configurations
3kW,6kW,9kW
Portability
Casters available
Construction material
Non-ferrous construction
Process pump
1/2 – 3/4 hp with silicone carbide seals

Custom Options


Control panel type
1/16 DIN microprocessor based PID controller
Integration possibilities
RS232,RS485,RS485-SPI communications
Construction material
Non-ferrous construction
Mobility
Casters available in lieu of rubber feet
Heater configuration
3kW,6kW,or 9kW
Safety features
Independent high temperature safety thermostat
Cooling options
Quick cool switch
Water purge method
Auto system water purge (mold purge)
Pressure control
Pressure regulator/relief valve
Power supply
208/3/60,230/3/60,400/3/50,575/3/60 voltages
