Compact seed coating system for small production

Efficiently scale your seed processing with a reliable system designed for small batch production, ensuring precise coating, priming, and drying for optimal seed quality.

Coats, Dries, and Primes Seed Batches Efficiently

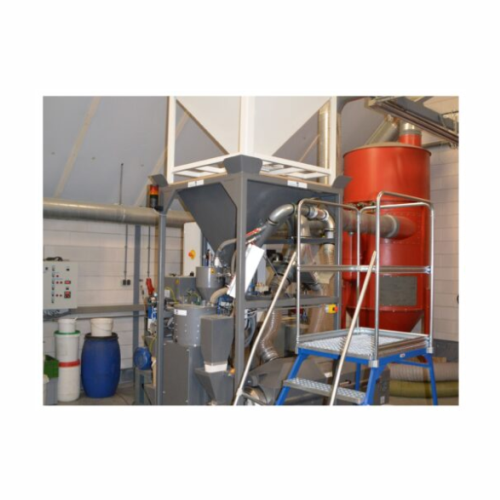

The IRCD HR350 with RFBD300 from Hoopman Equipment & Engineering offers a streamlined solution for seed coating, drying, and priming in small batch processes. Utilizing a rotary coating line coupled with a rotary fluid bed dryer, this system ensures uniform application of coatings and efficient moisture removal, ideal for research and development environments. With production capacities of up to 75-100 kg/hr, it allows for rapid piloting and transition to production. The system seamlessly integrates into your existing operations, with automated controls for precise processing. Engineered for energy efficiency, it features variable-speed motors that reduce electrical consumption. Constructed with corrosion-resistant materials, it supports a range of seed types including vegetable, corn, and grain, with potential application in agricultural and seed processing industries. This equipment is particularly suited for laboratories and R&D departments needing reliable performance for experimental and small-scale commercial batches.

Benefits

  • Enhances product quality with consistent coating and uniform drying.
  • Increases operational efficiency by reducing energy consumption through optimized motor controls.
  • Facilitates R&D innovation with a flexible system suitable for small-batch testing and pilot production.
  • Minimizes labor involvement with a fully automated process, improving productivity.
  • Supports diverse seed processing applications, offering adaptability in various agricultural and horticultural sectors.

General


Applications
Seed disinfection,Small batch production,Liquid coating,Agricultural products,Seed priming,Powder coating,Seed coating
End products
Small batch herb seeds,Coated corn seeds,Disinfected wheat seeds,Liquid-coated grain seeds,Primed vegetable seeds,Powder-coated flower seeds
Steps before
Disinfection,Priming,Conditioning,Sorting
Steps after
Drying,Coating
Input ingredients
Output ingredients
Market info

Technical Specifications


Production Capacity
75-100 kg/hr
System Type
Automated
Compact Design
Yes
Coating Line Base
HR350
Rotary Fluid Bed Dryer
RFBD300
Coating Method
Rotary
Application
Small Trials/Production

Operating Characteristics


Automation level
Manual / PLC
Batch vs. continuous operation
Batch
Energy efficiency
Not specified
Cleaning method
Manual

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
CIP Compatible
Corrosive resistance (e.g. acids)
Stainless Steel
Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Machine footprint
Compact design
System type
Automated
Production capacity
75-100 kg/hr
Coating line
HR350 with RFBD300
Discharge method
Rotary Fluid Bed Dryer integration

Custom Options


Control panel type
Touchscreen HMI / PLC
Integration possibilities
Seamless integration with larger systems
Compact footprint
Yes
Discharge method
Automated or manual
Coating method
Rotary or Fluid Bed
