Combined air water rinser for bottles and jars
Optimize your bottling process with an integrated solution for rinsing and blowing, ensuring every bottle and jar meets contamination-free standards before filling.
Blows and Rinses Bottles Internally

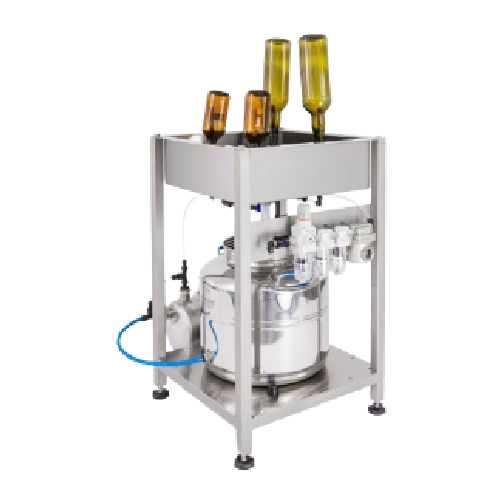

The Easyclean from Tenco is a versatile combined water and air bottle rinser designed to efficiently sanitize a wide range of containers. It employs dual-function rinsing and blowing to ensure thorough internal cleaning, crucial in industries like beverages and pharmaceuticals. With configurations accommodating up to 600 bottles per hour, the Easyclean’s flexibility is evident in its multiple injector options, catering to various mouth diameters and container heights. Users can choose between models with or without an electric pump, enabling direct connection to water mains or recirculation systems, conserving resources. Engineered for ease of integration, this rinser suits manual and semi-automatic operations, delivering reliable decontamination for products such as wine bottles, chemical reagent bottles, and olive oil jars. Constructed with attention to durability, it offers low maintenance requirements while ensuring compatibility with plastic and PET bottles under specific conditions, following customer-supplied testing to avoid deformation.
Benefits
- Enhances cleaning efficiency with combined water and air rinsing, ensuring thorough decontamination.
- Offers resource conservation through optional recirculation or mains connection, minimizing water usage.
- Accommodates diverse container types with interchangeable injectors, optimizing flexibility.
- Supports cost-effective operations by integrating into existing manual or semi-automatic lines.
- Ensures reliable use in varied industries, from beverages to pharmaceuticals, by handling diverse container specifications.
- Applications
- Food,Beverages,Chemicals,Cosmetics,Pharmaceuticals
- End products
- Pill bottles,Wine bottles,Essential oil vials,Olive oil bottles,Dietary supplement jars,Vinegar glass jars,Perfume bottles,Chemical reagent bottles,Spirits bottles,Cleaning solution containers
- Steps before
- Bottle Preparation,Container Selection,Initial Cleaning
- Steps after
- Sterilization,Filling,Capping,Labeling,Packing
- Input ingredients
- air,water,sanitizing solution,ethyl alcohol,chemical agents
- Output ingredients
- clean bottles,clean jars,residue-free containers
- Market info
- Production capacity
- Up to 600 b/h
- Power supply
- 220V - 50 Hz single-phase,110-60 Hz single-phase,220V - 60 Hz single-phase and pneumatic
- Dimensions
- 500x800x1200H
- Weight
- 48 kgs
- Power
- 0.55KW
- Standard injector inside mouth diameter
- From 12 to 26mm
- Minimum container height standard injector
- 150mm
- Mignon injector inside mouth diameter
- From 7.5 to 26mm
- Injector for jars mouth internal diameter
- From 12 to 140mm
- Automation level
- Manual / Pneumatic
- Cleaning method
- Air and Water Rinse
- Batch vs. continuous operation
- Batch
- Changeover time
- Depending on injector type
- Energy efficiency
- 0.55 kWh
- CIP/SIP
- Manual rinsing system
- Cleanability
- Yes,easy to clean
- Corrosive resistance (e.g. acids)
- Stainless steel construction
- Density/particle size
- Compatible with various bottle sizes
- Container size
- From 150mm height
- Container shape
- Cylinder and square
- Container material
- Glass / PET
- Viscosity
- N/A
- Heat sensitivity
- Recommended for certain spirits
- Foaming
- Use air pump for spirits
- Abrasiveness
- N/A
- Machine footprint
- 500x800x1200H mm
- Weight
- 48 kgs
- Power
- 0.55KW
- Standard injector inside mouth diameter
- 12 to 26 mm
- Minimum container height (standard injector)
- 150 mm
- Mignon injector inside mouth diameter
- 7.5 to 26 mm
- Minimum container height (mignon injector)
- None
- Injector for jars mouth internal diameter
- 12 to 140 mm
- Minimum container height in the jar injector
- None
- Configurations
- With 2 injectors / With 4 injectors / With electric pump / Without electric pump / With pneumatic pump
- Packaging container types
- Cylinder and square glass bottles,glass ladies,mignon bottles,cylindrical and square rigid PET bottles,glass jars
- Injector Configuration
- 2 or 4 injectors
- Electric Pump Option
- With or without electric pump
- Pneumatic Pump Option
- With pneumatic pump
- Mignon Injector Option
- Mignon injectors available
- Jar Injector Option
- Injectors for jars available
- Water Recirculation Option
- Recirculation pump / Direct connection to mains
