Cleanroom condensation particle counter for nanoparticle detection
Ensure nanoparticle-free environments with precision condensation particle counting, essential for detecting ultrafine particle contamination in high-purity cleanrooms and gas systems.
Detects and Monitors Nano-scale Particle Contamination

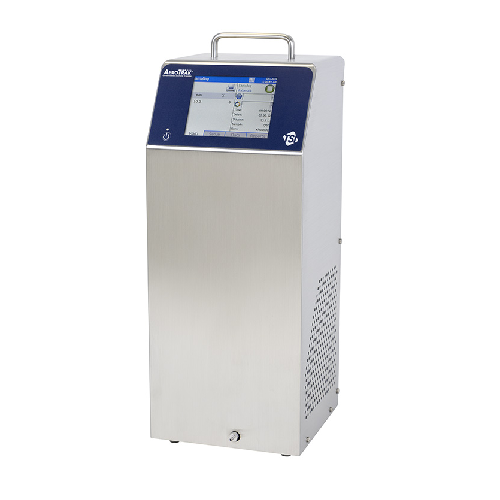

The AeroTrak Cleanroom Condensation Particle Counter 9001 from TSI Incorporated offers a robust solution for detecting and monitoring nano-scale particle contamination. The instrument is uniquely equipped with a laminar flow design and a high flow rate of 0.1 CFM (2.83 L/min), providing 10 nm sensitivity crucial for ISO Class 1 and 2 environments. By utilizing a water-based working fluid, it avoids the use of alcohol or chemicals, making it optimal for cleanroom settings.
This particle counter is designed especially for semiconductor manufacturing and electronics industries, where it contributes to the production of microprocessors and integrated circuits by tracking down sources of contamination. It is adept at handling applications related to clean environments and high-pressure compressed gas systems, ensuring high-purity in production lines.
Moreover, the AeroTrak 9001 integrates seamlessly within automated processes, offering features such as data storage for 250 zones and 10,000 samples, and extensive connectivity with USB and Ethernet data transfer options. The stainless steel enclosure and optional AeroTrak High Pressure Diffuser Model 7950 enhance its capability to measure high-pressure gases such as CDA, N2, and Ar. Its easy-to-use touch screen operation and industry-leading audible alarm system ensure both operational simplicity and reliability in rapid response scenarios.
Benefits
- Ensures product quality by precisely detecting nano-scale particles as small as 10 nm.
- Enhances operational efficiency with rapid, reliable data collection in high-purity environments.
- Minimizes risk of contamination by utilizing alcohol-free, water-based working fluids.
- Simplifies integration into existing systems with comprehensive data connectivity options.
- Reduces maintenance costs through easy touch screen operation and robust design.
- Applications
- Semiconductor manufacturing,Nanoparticles,High-pressure compressed gas systems,Cleanroom environments
- End products
- Nano-scale electronic components,Nanoparticle-contaminated gas detection equipment,Microprocessors,High-purity compressed gas cylinders,Critical environment monitoring equipment,Integrated circuits
- Steps before
- Purification,Filtration,Gas Compression
- Steps after
- Contamination Control,Nanoparticle Filtration,Semiconductor Assembly
- Input ingredients
- Ultra-Pure water,DI water,process gases,high-pressure compressed gas systems,CDA,N2,AR
- Output ingredients
- 10 nm particle detection,particle concentration measurements,nanoparticle contamination data
- Market info
- Particle size sensitivity
- 10 nm
- Flow rate
- 0.1 CFM (2.83 L/min)
- False count rate
- < 0.07 count/ft³
- Data storage capacity
- 250 zones,999 locations,10,000 samples
- Data transfer options
- USB,USB storage device,Ethernet
- Enclosure material
- 316L stainless steel
- Alarm type
- Audible
- Working fluid
- Ultra-Pure or DI water
- Automation level
- Manual / PLC
- Batch vs. continuous operation
- Inline continuous
- Cleaning method
- Manual
- Energy efficiency
- Low energy consumption
- ISO Cleanroom Standards
- ISO Class 1 / ISO Class 2
- Sample flow rate
- 0.1 CFM (2.83 L/min)
- Enclosure material
- 316L stainless steel
- Touch screen operation
- Icon-driven
- Footprint
- Compact
- Data transfer options
- USB,USB storage device,Ethernet
- Control panel type
- Touchscreen
- Integration possibilities
- Ethernet,USB
- Data Storage customizability
- 250 zones,999 locations,and 10,000 samples
- External reporting
- TrakPro™ Lite Secure Software
- Recipes and zone configuration
- Storage and recall enabled
