Claryfing agent dosing station for beverage production

Ensure precise clarifying agent dosing in beverage production with minimal space and seamless integration to your existing depectinisation tanks, enhancing product clarity and quality.

Doses and Mixes Clarifying Agents Precisely

The Clarifying Agent Dosing Station from Bucher Unipektin is engineered for the precise addition of clarifying agents in the beverage and food industry. It features a fully automatic operation with a user-friendly SIEMENS SIMATIC HMI control panel and optional touch screen visualization. This station excels in applications such as fruit juice concentrates, clarified fruit juices, and gelatinous beverages, offering a seamless integration with your production line for continuous dosing and mixing processes.

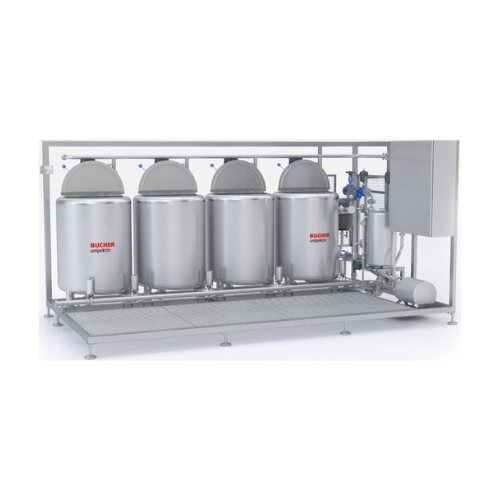

Equipped with four tanks, the station accommodates various preparation needs: bentonite solution in two tanks, sol in the third, and gelatinous solution in the fourth, which includes a circulation pump and heat exchanger for optimal temperature control. With tank capacities adaptable to specific requirements, it ensures precise dosing and a compact footprint.

The system is designed for energy efficiency, using a circulation pump with a capacity of up to 10 m³/h and an optional electrical heating system, which enhances operational efficiency. Constructed from AIS! 304/316L stainless steel, it offers excellent corrosion resistance, suitable for demanding processing environments.

Moreover, this dosing station supports adherence to HACCP standards by archiving dosing data, ensuring compliance with food safety regulations. Customization options such as bentonite feeding systems and concentrated enzyme dosing enhance its versatility, making it an integral component for producers aiming for high-quality, clarified end-products.

Benefits

  • Enhances product quality with precise dosing and mixing, ensuring consistent end-product results.
  • Lowers maintenance burdens through a fully automatic, easy-to-manage control system.
  • Saves space in your facility with a compact, efficient design.
  • Supports compliance with food safety standards through comprehensive data archiving.
  • Adapts to varying production needs with customizable tank capacities and additional feed systems.

General


Applications
Beverages,Food industry,Concentrates
End products
Fruit juice concentrates,Pectin-free juice,Wine clearings,Gelatinous beverages,Clarified fruit juices,Protein infused drinks
Steps before
Preparation of product formulation,Concentration of ingredients
Steps after
Depectinisation,Quality control,Archiving production data
Input ingredients
bentonite solution,sol,gelatine solution,water
Output ingredients
clarifying agent solution,depectinisation process
Market info
Bucher Unipektin is known for producing advanced equipment and systems for the food and beverage industry, specializing in juice processing and filtration technologies with a reputation for innovative solutions and reliable, high-quality products.

Technical Specifications


Capacity
Up to 900 L
Automation
Fully automatic control
Control panel
SIEMENS SIMATIC HMI
Pump capacity
Up to 10m³/h
Heating system
Electric / Water heating jacket
Heat exchanger type
JAD tubular
Tanks
Four with agitators
Dosing type
Precise dosing

Operating Characteristics


Automation level
Fully automatic with visualisation
Dosing control
Precise dosing
Dosing mechanism
Fully automatic control
Process integration
Connection to depectinisation tanks
Space requirement
Little space required

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless Steel 304/316L
Cleanability
CIP-compatible
Biological compatibility
Food Grade

Physical Characteristics


Tank shape and size
Four tanks,varying capacities
Equipment footprint
Compact,little space required
Control panel type
SIEMENS SIMATIC HMI
Base type
Adjustable legs
Discharge method
Set the dose,specify the amount of water,select the process tank
Optional features
Touch screen visualisation

Custom Options


HMI type
SIEMENS SIMATIC
Control panel type
HMI control panel
Integration possibilities
Connection to depectinisation tanks
Automation level
Fully automatic control
