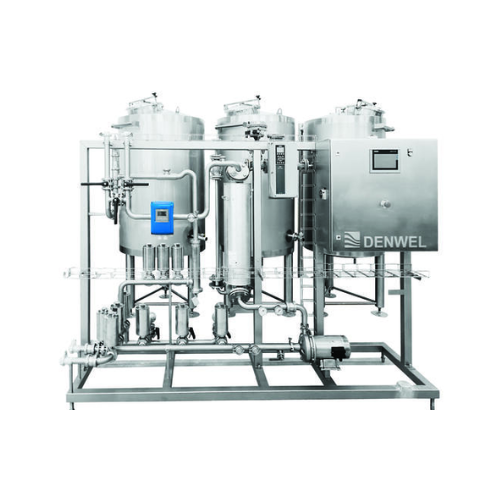

Cip compact unit for brewery cleaning

Streamline your brewery’s cleaning operations with an all-in-one compact unit that handles pipe and tank sanitization with optimal efficiency, ensuring your brewing equipment maintains peak performance.

Cleans and Sanitizes Pipes and Tanks

The CIP compact unit from Bucher Unipektin is specifically engineered for breweries aiming to enhance their cleaning and sanitation processes. This unit is distinguished by its ability to service multiple cleaning lines, effectively handling both pipes and tanks through automatic sequencing. It operates efficiently with customizable vessels aimed at thorough cleaning using caustic, acid, and water solutions. The intuitive user interface allows for precise control over sanitation parameters such as temperature and flow, crucial for maintaining consistent cleaning standards.

Ideally suited for the beverage, food, and pharmaceutical industries, its applications include cleaning and sanitizing equipment used in the production of various beer styles and food processing. The compact unit’s flexible processing capacity supports pipelines up to 600 meters and tanks up to 4.8 meters in diameter, ensuring robust throughput across different facility sizes. Automation is seamlessly integrated, with PLC control allowing for easy integration into existing operations and remote monitoring.

Designed with energy efficiency in mind, the unit includes separate vessels for caustic, acid, and water recovery, minimizing resource consumption and operational costs. Constructed from durable Stainless Steel 304, the unit offers resistance to corrosion, ensuring longevity and reliability in demanding brewery environments. Configuration options and engineering support are available to tailor the system to specific production needs, further enhancing its application versatility.

Benefits

  • Increases operational efficiency by automating cleaning sequences, reducing manual intervention.
  • Enhances resource conservation through caustic, acid, and water recovery systems.
  • Provides flexible integration with customizable vessel configurations to meet specific brewery needs.
  • Optimizes cleaning performance with precise control over sanitation parameters.
  • Minimizes cleaning-related downtime, ensuring consistent production flow.

General


Applications
Brewery,Sanitation systems,Pipe cleaning,Beverage,Food processing equipment,Cleaning solutions,Tank cleaning
End products
Sanitation of brewing equipment,Pilsner,Brewery equipment cleaning,Lager,Food processing tanks cleaning,Non-alcoholic beer,Stout,Beverage containers cleaning,Beer,Wheat beer,Ale
Steps before
Preparation,Ingredient Mixing,Pipe Installation,Tank Installation
Steps after
Fermentation,Storage,Bottling,Distribution
Input ingredients
acid,caustic,disinfectants,water
Output ingredients
clean pipes,clean tanks,clean equipment
Market info
Bucher Unipektin is known for producing advanced equipment and systems for the food and beverage industry, specializing in juice processing and filtration technologies with a reputation for innovative solutions and reliable, high-quality products.

Technical Specifications


Automation
Automatic CIP sequencing
Temperature Range
0 to 90 °C
Pressure Range
1 to 4 barg
Flow Rate
40 to 400 hl/h
Dimensions
Height 1,8 m
Width 4,5 m
Depth 1,5 m
Weight
From 500 kg
Material
Stainless Steel 304
Connection Type
Tri-clamp
Cleaning Method
CIP
Dosing
Simultaneous concentrate dosing
Vessels
Insulated caustic,ambient acid,recovery water
Heating Power
115 to 460 kW
Pipe Size
DN 40 to DN 80

Operating Characteristics


Automation level
Automatic CIP sequencing
CIP Method
Automatic CIP
Batch vs. Continuous Operation
Batch
Cleaning Method
CIP
Temperature Control
0 to 90 °C
Pressure Control
1 to 4 barg
Flow Rate
40 to 400 hl/h
User Interface
Intuitive and Simple

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless Steel 304

Product type Characteristics


Cleaning purpose
Brewery tanks,pipes,process equipment

Physical Characteristics


Machine footprint
Height 1.8 m,Width 4.5 m,Depth 1.5 m
Weight
From 500 kg
Material
Stainless Steel 304
Connection type
Tri-clamp
Heating power per vessel type (DCP100C)
115 kW
Heating power per vessel type (DCP150C)
175 kW
Heating power per vessel type (DCP300C)
345 kW
Heating power per vessel type (DCP400C)
460 kW
Vessel insulation
Insulated caustic,uninsulated acid,and water-recovery vessels
Pipe cleaning capacity (DCP100C)
DN 40,up to 600 m
Pipe cleaning capacity (DCP150C)
DN 50,up to 550 m
Pipe cleaning capacity (DCP300C)
DN 65,up to 600 m
Pipe cleaning capacity (DCP400C)
DN 80,up to 500 m
Vessel cleaning capacity (DCP100C)
Up to diam. 2 m
Vessel cleaning capacity (DCP150C)
Up to diam. 3.2 m
Vessel cleaning capacity (DCP300C)
Up to diam. 3.8 m
Vessel cleaning capacity (DCP400C)
Up to diam. 4.8 m

Custom Options


Control panel type
Intuitive user interface
Integration possibilities
Automatic CIP sequencing
Vessel setup
Custom (insulation,volume,size)
Connection type
Tri-clamp
Other connections upon request
