Chub packing system for chemical emulsions
Effectively pack and fill chemical emulsions with precision to enhance the safety and efficiency of your explosive production processes.
Packs and Fills Chemical Emulsions Continuously

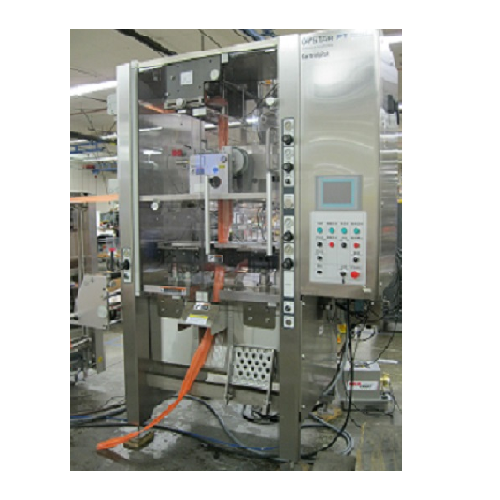

The KartridgPak CHX-50 from R.A Jones is a chub packing solution tailored for the chemical and explosives industries. This machine efficiently handles the filling and packaging of chemical emulsions, detonating cords, and explosive matrices with a continuous operating mode. It supports a flexible packing range with diameters from 44 to 152 mm and lengths from 229 to 1829 mm, accommodating varied batch sizes with precision. Featuring a rapid product changeover between 5 to 10 minutes and a size changeover of 5 to 15 minutes, it seamlessly integrates into any production line. Constructed for reliability and energy efficiency, the CHX-50 incorporates rollstock plastic film packaging, ensuring durability and reduced material costs. With comprehensive engineering support, this equipment is customizable to meet specific production needs, and its construction is designed to withstand harsh, explosive-dust environments.
Benefits
- Enhances production efficiency with continuous operation, minimizing downtime.
- Reduces material costs through durable rollstock plastic film packaging.
- Accelerates product and size changeovers, optimizing line flexibility and responsiveness.
- Customizable for specific production needs, ensuring adaptability to diverse applications.
- Built for explosive-dust environments, ensuring safety and regulatory compliance.
- Applications
- Chemical emulsions,Explosives
- End products
- Chemical gel emulsions,Detonating cord,Emulsion matrix for explosives
- Steps before
- Emulsification
- Steps after
- Packing
- Input ingredients
- chemical emulsions,explosives
- Output ingredients
- packaged chemical emulsions,packaged explosives,packed products in rollstock plastic film
- Market info
- R.A Jones (Coesia Group) is known for its expertise in designing and manufacturing packaging equipment and automation solutions, specializing in cartoning, pouching, and high-speed filling, with a strong reputation for innovation and reliability in the industry.
- Filling volume
- 348 ml – 33000 ml
- Machine depth
- 1622 mm
- Machine height
- 2874 mm
- Machine length
- 2304 mm
- Machine weight
- 1800 kg
- Max pack diameter
- 152 mm
- Min pack diameter
- 44 mm
- Max pack length
- 1829 mm
- Min pack length
- 229 mm
- Packaging material
- Rollstock plastic film
- Operating mode
- Continuous
- Product changeover
- 5 - 10 min
- Size changeover
- 5 - 15 min
- Speed
- 50 ppm
- Working mechanism
- Continuous
- Integrated steps
- Chub packing of chemical emulsions
- Batch vs. continuous operation
- Continuous
- Automation level
- Manual
- Cleaning method
- Manual
- Energy efficiency
- Not specified
- Changeover time
- 5 - 15 min
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Packaging material
- Rollstock plastic film
