Chub packer for resin bolt packages
Optimize high-speed packaging of liquid resin products with precise filling and wrapping capabilities, ensuring seamless integration into your continuous production line.
Packs and Wraps Resin Products Continuously

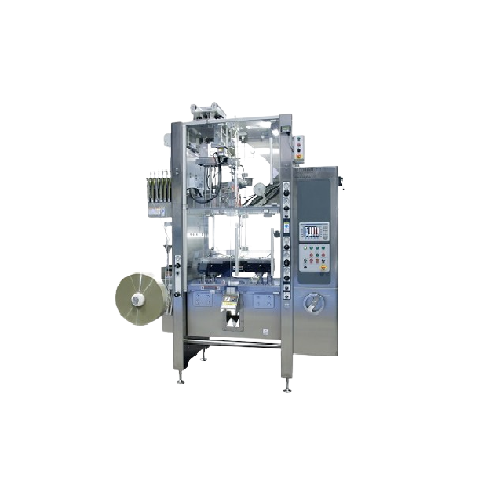

The KartridgPak CHR-120 from R.A Jones specializes in high-speed, continuous chub packing tailored for the chemicals industry. Utilizing a robust continuous packing process, it adeptly fills and wraps liquid resin products, such as epoxy resin tubes and silicone caulk cartridges, into resilient rollstock plastic film packaging. With a throughput of up to 120 packages per minute and a seamless changeover within 30 minutes, this machine integrates smoothly into existing production lines. Engineered for optimal energy efficiency, its design minimizes downtime and resource consumption. Constructed from corrosion-resistant materials, it meets stringent industry standards, ensuring durability and compliance while offering customization and engineering support for specific line requirements.
Benefits
- Increases packaging efficiency with continuous operation at 120 packages per minute.
- Minimizes operational costs through rapid 15-30 minute size changeovers.
- Enhances product integrity with durable rollstock plastic film packaging.
- Supports versatile production demands with adjustable filling volumes.
- Ensures long-term reliability in chemically aggressive environments with corrosion-resistant construction.
- Applications
- Resin products,Specialty chemicals,Industrial chemicals
- End products
- Polyurethane resin packs,Adhesive chemical chubs,Polyester resin sticks,Epoxy resin tubes,Industrial sealant rolls,Silicone caulk cartridges
- Steps before
- Mixing,Formulation,Batching
- Steps after
- Labeling,Distribution,Quality Control
- Input ingredients
- resin,bolt packages
- Output ingredients
- chub packages,two-compartment round packages
- Market info
- R.A Jones (Coesia Group) is known for its expertise in designing and manufacturing packaging equipment and automation solutions, specializing in cartoning, pouching, and high-speed filling, with a strong reputation for innovation and reliability in the industry.
- Max filling volume
- 6000 ml
- Min filling volume
- 78 ml
- Operating mode
- Continuous
- Product changeover time
- 1 - 2 h
- Size changeover time
- 15 - 30 min
- Max pack diameter
- 50 mm
- Min pack diameter
- 18 mm
- Max pack length
- 3000 mm
- Min pack length
- 152 mm
- Packaging material
- Rollstock plastic film
- Packaging Type
- Two-compartment round
- Machine depth
- 1581 mm
- Machine height
- 2956 mm
- Machine length
- 2562 mm
- Machine weight
- 1588 kg
- Operating mode
- Continuous
- Product changeover time
- 1 - 2 h
- Size changeover time
- 15 - 30 min
- Batch vs. continuous operation
- Continuous
- Max filling volume
- 6000 ml
- Min filling volume
- 78 ml
- Max pack diameter
- 50 mm
- Min pack diameter
- 18 mm
- Max pack length
- 3000 mm
- Min pack length
- 152 mm
- Machine depth
- 1581 mm
- Machine height
- 2956 mm
- Machine length
- 2562 mm
- Machine weight
- 1588 kg
- Packing range - Max pack diameter
- 50 mm
- Packing range - Min pack diameter
- 18 mm
- Packaging range - Max pack length
- 3000 mm
- Packaging range - Min pack length
- 152 mm
- Packaging material
- Rollstock plastic film
- Packaging type
- Two-compartment round
- Control panel type
- Touchscreen Interface
- Integration possibilities
- Compatible with existing production lines
