Centrifugal dryer for efficient liquid product and solvent drying

Achieve precise solvent and liquid product drying with this centrifugal dryer, tailored for efficient concentration and separation processes, ensuring your high-purity requirements are consistently met in diverse operational settings.

Concentrates and Dries Solvents Efficiently

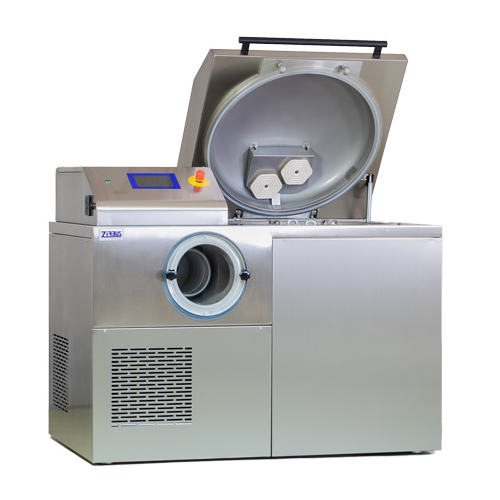

The ZT Series centrifugal dryers from ZIRBUS technology GmbH offer a tailored solution for efficiently concentrating and drying solvents and liquid products in diverse industrial applications. Engineered with horizontal and vertical loading options, these dryers accommodate varied processing needs in pharmaceutical, chemical, and biotech sectors. Each unit, either the ZT-H6 or ZT-V12, features solvent-resistant materials like 316TI and 316L stainless steel, ensuring longevity and compatibility with substances such as DMSO, acetonitrile, and formic acid. Equipped with an advanced IR heating system and double stock motor, these dryers optimize energy use while maintaining high drying performance. With a robust design compliant with GMP standards, the ZT Series models support HPLC and DNA extraction processes, offering configurable gondola sizes and capacities to fit your specific production requirements. Their -75°C ice condenser function adds versatility to solvent recovery applications, while a visualized process control system ensures precise operational management.

Benefits

  • Enhances solvent recovery efficiency in high-performance liquid chromatography applications.
  • Minimizes energy consumption with precise IR heating and double stock motor integration.
  • Offers flexibility with customizable configurations for varied production scales.
  • Ensures long-term durability with corrosion-resistant stainless-steel construction.
  • Supports GMP compliance, aligning with stringent pharmaceutical industry standards.

General


Applications
Solvents,Hplc applications,Chemical solutions,Liquid products
End products
Analytical reagents,Pharmaceutical intermediates,Formic acid,Dna extraction solvents,Acetonitrile,Dimethyl sulfoxide (dmso),High-performance liquid chromatography solvents
Steps before
Purification,Grinding
Steps after
Packing
Input ingredients
liquid products,solvents,DMSO,acetonitrile,formic acid
Output ingredients
concentrated liquids,dried solvents,dried products
Market info
Zirbus is known for manufacturing high-quality autoclaves, freeze dryers, and customized sterilization equipment, with a strong reputation for reliability and precision in industrial and laboratory applications.

Technical Specifications


Number of gondolas
6 pce / 12 pce
Dimensions of the gondolas
160 x 280 mm / 130 x 90 mm
Capacitance Capacitor
15 kg
Ice condenser temperature
-45 or -75°C
Heat output
6 x 250 W
Base speed
Max 220 rpm
G-number
Max 6 G
Infrared radiators
6 positioned in rotor
Horizontal chamber dimensions (ZT-H6)
Width
Vertical chamber dimensions (ZT-V12)
Width
Weight (ZT-H6)
Approx. 800 kg
Weight (ZT-V12)
500 kg

Operating Characteristics


Working Mechanism
Centrifugal with swing-out rotor
Automation level
Manual / PLC
Batch vs. continuous operation
Batch
Cleaning method
Manual / CIP
Energy efficiency
Moderate kWh/kg moisture
Integrated steps
Drying and solvent condensation
Temperature control
Infrared heating

Material Compatibility


Solvent resistance
DMSO,acetonitrile,formic acid
Corrosion resistance
316TI stainless steel,316L

Product type Characteristics


Container size and shape
Various nacelles,ASV-Mikrotitter-Deepwell-Gislon-Knaur


GMP Compliance
Yes
Solvent Resistance Certification
Yes

Physical Characteristics


Machine Footprint
ZT-H6
Machine Footprint
ZT-V12
Weight
ZT-H6
Weight
ZT-V12
Gondola Size
ZT-H6
Gondola Size
ZT-V12
Number of Gondolas
ZT-H6
Number of Gondolas
ZT-V12
Loading Method
Horizontal / Vertical
Heating System
Infrared Heater
Rotor Type
Swing-out rotor,2 levels

Custom Options


Loading orientation
Horizontal / Vertical
Rack configuration
Customizable
Material construction
316TI / 316L Stainless Steel
Infrared heater placement
Directly on liquid surface
Condenser type
2-stage refrigeration compressor
Ex-protection version
Available
Product racks
ASV-Mikrotitter / Deepwell / Gilson-Knaur
