Cell culture isolator for regenerative medicine

Ensure aseptic conditions for cell and gene therapy by maintaining a contamination-free environment with precise control over decontamination and material handling processes. Ideal for labs focusing on stem cell therapies and biologic drug development.

Maintains Aseptic Conditions for Cell Culturing

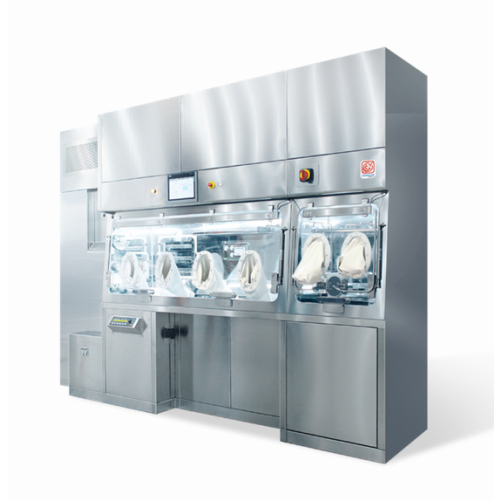

The Cell Culture Isolator from Comecer is expertly designed to maintain sterile environments essential for regenerative medicine and tissue engineering. This isolator features a fully PLC-controlled system offering automated decontamination through a Vapor Phase Hydrogen Peroxide (VPHP) generator, ensuring a safe and clean workspace for handling sensitive cell cultures and biologic drugs. Equipped with laminar airflow and positive pressure maintenance, it provides an ideal setting for laboratory-scale operations in pharmaceutical and biotech industries. The isolator includes a high-grade stainless steel construction with a fully welded chamber, enhancing durability and corrosion resistance. Compliant with GMP guidelines, the system supports processes such as centrifuging and material introduction, vital for applications like stem cell therapies and CAR-T cell treatments. Integration into existing production lines is seamless thanks to its friendly HMI interface, while its compact design allows for easy cleaning and low-maintenance operation, ensuring optimal functionality and longevity.

Benefits

  • Enhances product safety by maintaining strict aseptic conditions.
  • Minimizes contamination risk with automated VPHP decontamination.
  • Supports flexible operations with seamless integration into existing workflows.
  • Extends equipment lifespan with robust stainless steel construction.
  • Ensures regulatory compliance with GMP guidelines.

General


Applications
Regenerative medicine,Biopharmaceuticals,Pharmaceutical products,Cell and gene therapy,Tissue engineering
End products
Monoclonal antibodies,Gene-edited cells,Stem cell therapies,Biologic drugs,Car-t cell treatments
Steps before
Material Introduction,Preparation
Steps after
Decontamination,Sterilization
Input ingredients
cell cultures,sterile products,materials introduced via pre-chamber
Output ingredients
analyzed cell cultures,handled sterile products
Market info
Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.

Technical Specifications


Automation
Fully PLC-controlled
Software Compliance
GAMP 5
Decontamination System
Vapor Phase Hydrogen Peroxide (VPHP)
Material
Stainless steel AISI 316L internally,AISI 304 externally
Pressure
Positive pressure relative to the laboratory
Chamber Design
Fully welded chamber with 20 mm radius
Centrifuge Integration
Integrated
Material Introduction
Quick material introduction mousehole

Operating Characteristics


Automation level
Fully PLC controlled
Airflow type
Laminar airflow
Positive pressure operation
Yes
Decontamination method
Vapor Phase Hydrogen Peroxide (VPHP)
Material introduction method
Quick material introduction mousehole
Integrated features
Integrated centrifuge
User Interface
Friendly operator interface (HMI)

Material Compatibility


Biological compatibility
Compliant with GMP guidelines
Cleanability
Integrated decontamination system (Vapor Phase Hydrogen Peroxide)
Corrosive resistance (e.g. acids)
High grade stainless steel AISI 316L internally


21CFR Part 11
Available upon request

Physical Characteristics


Chamber Material
High grade stainless steel AISI 316L internally and AISI 304 externally
Chamber Design
Fully welded chamber with 20 mm radius
Control Panel Type
Friendly operator interface (HMI)
Integrated Decontamination System
Vapor Phase Hydrogen Peroxide
Footprint
Compact
Pre-chamber Design
For material introduction
Main Chamber Design
For cell culture handling
Airflow
Laminar airflow

Custom Options


Control panel type
Friendly operator interface (HMI)
Integration possibilities
PLC controlled,GAMP 5 compliant software
Customization of decontamination system
Integrated Vapor Phase Hydrogen Peroxide system
Material introduction mechanism
Quick material introduction mousehole
Chamber construction
Fully welded chamber with 20 mm radius
Material type for construction
High grade stainless steel AISI 316L internally and AISI 304 externally
