Cartoning system for coffee capsules

Optimize your production line with a space-saving cartoning system designed specifically to streamline the packaging process for coffee and tea capsules, ensuring efficient handling and flexibility in configurations.

Cartons Coffee and Soluble Beverage Capsules

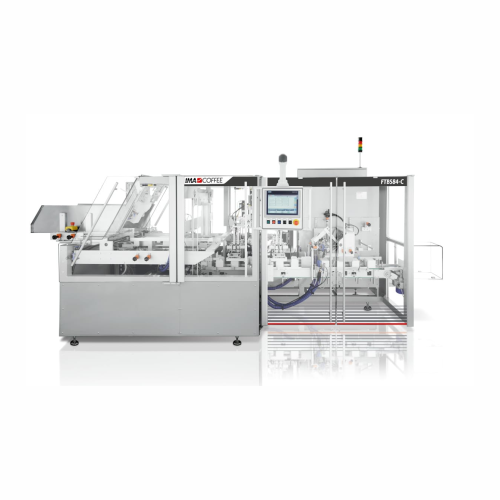

The FTB584-C from IMA Group’s Coffee Hub is a flexible, servo-driven cartoning machine designed for coffee and soluble beverage capsules. Engineered for continuous operation, it aligns seamlessly with filling and sealing equipment, efficiently handling production ranges up to 25 ppm. The space-saving design incorporates a fully automated process, from capsule feeding and overturning to carton forming and closing. This machine supports sustainability by processing compostable and recyclable materials and minimizing energy consumption with shared kinetic energy during braking. With high blank capacity and swift size changeovers, the FTB584-C offers minimal maintenance needs, ensuring reduced downtime. Ideal for coffee manufacturers, tea producers, and beverage companies, it enhances operational efficiency and production flow.

Benefits

  • Optimizes floor space usage, reducing facility costs.
  • Enhances production efficiency with high-speed, continuous operation.
  • Facilitates eco-friendly packaging with support for compostable materials.
  • Minimizes downtime with quick size changeovers and low maintenance needs.
  • Reduces energy waste through shared kinetic energy during braking.

General


Applications
Soluble beverages,Tea,Coffee capsules
End products
Espresso coffee capsules,American coffee capsules,Green tea capsules,Instant coffee powders,Soluble milk powders,Hot chocolate sachets,Chamomile tea capsules
Steps before
Filling,Sealing
Steps after
Packing,End of Line Processing
Input ingredients
coffee capsules,tea,soluble beverages,carton flat blanks
Output ingredients
cartoned coffee capsules,cartoned tea,cartoned soluble beverages
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Production Range (Length)
90-200 mm
Production Range (Width)
60-110 mm
Production Range (Height)
30-90 mm
Production Speed
Over 25 ppm
Average Power Consumption
10 kW
Operating Pressure
6 bar
Maximum Air Consumption
200 Nl/min
Weight
3,000 Kg
Automation
Fully servo-driven
Capsule type
Coffee Capsules
Material Compatibility
Compostable/Recyclable Materials

Operating Characteristics


Working mechanism
Fully servo-driven
Batch vs. continuous operation
Inline Continuous
Automation level
Flexible
Changeover time
Quick size changeover
Energy efficiency
Kinetic energy sharing
Cleaning method
Minimal maintenance
Footprint
Compact
User interface
User-friendly
Product layer configuration
Extreme flexibility

Product type Characteristics


Capsule Type
American / Espresso
Material Type
Compostable / Recyclable

Physical Characteristics


Machine footprint
Compact
Weight
3,000 Kg
Discharge method
Frontal flap closing system
Control panel type
User-friendly operator interface

Custom Options


Control panel type
User-friendly operator interface
Footprint
Compact
Integration possibilities
In line with filling and sealing equipment
Product layer configuration flexibility
Extreme flexibility
