Cartoning solution for tube applications

Streamline your cartoning operations with a machine designed for flexible size changes and integrated safety features, ensuring efficient packaging of diverse products from liquid soaps to cosmetics.

Packs and Cartons Various Product Sizes

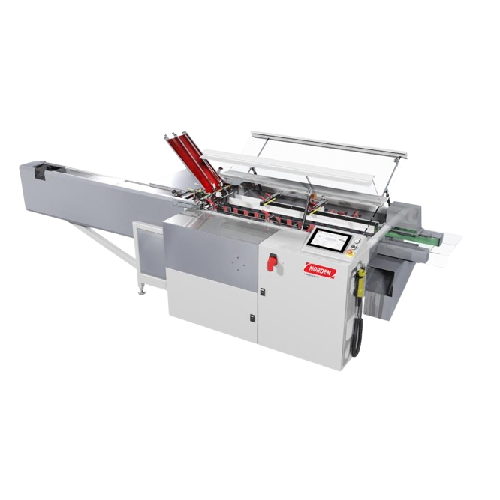

The NP 702 from Norden is a versatile cartoning machine designed for seamless integration into packaging lines across home care, personal care, food, and chemical industries. It operates in both intermittent and continuous modes, efficiently handling up to 140 units per minute, making it ideal for varied product sizes. The Norden EasyWare control system optimizes production by providing alarms and real-time statistics, while facilitating quick size changeovers with predefined format recipes. The NP 702 also incorporates optional features for code marking and vision inspection, enhancing product safety. Designed to support fifth panel carton production, it ensures products are retail-ready and visually appealing. Meeting various industry regulations, this machine complies with CFR Title 21 and relevant EN and IEC standards. Its compact design and flexible operation make it a valuable asset for manufacturing processes involving dishwashing liquids, shower gels, olive oils, and more.

Benefits

  • Increases packaging flexibility with rapid size adjustments for diverse product lines.
  • Enhances production efficiency by processing up to 140 units per minute.
  • Ensures product safety with optional code marking and vision inspection features.
  • Streamlines operations with seamless integration into existing production lines.
  • Complies with industry regulations, ensuring reliable and safe packaging processes.

General


Applications
Personal care products,Deodorants,Fats,Men's shaving products,Toothpaste,Cosmetics,Chemical products,Oils,Home care products,Food products,Skin care products,Sun care products,Hair care products,Liquid soaps
End products
Olive oil,Hair conditioner,Sunscreen lotion,Dishwashing liquid,Antiperspirant spray,Hand cream,Shaving foam,Margarine,Shower gel
Steps before
Tube Filling,Product Formulation,Mixing
Steps after
Packing,Labeling,Distribution
Input ingredients
tube applications,pre-folded cartons,paperboard
Output ingredients
cartoned tubes,fifth panel cartons,packaged products
Market info
Norden Machinery, part of the Coesia Group, is renowned for its expertise in designing and manufacturing advanced tube filling machines, particularly for the pharmaceutical, cosmetics, and food industries, emphasizing precision and high-speed performance.

Technical Specifications


Speed
80–140 units/min
Automation
Equipped with Norden EasyWare control system
Operating Mode
Intermittent/Continuous
Product Changeover
Easy size changeovers with predefined format recipes
Packaging Orientation
Horizontal
Max Pack Height
70 mm
Min Pack Height
15 mm
Max Pack Length
210 mm
Min Pack Length
70 mm
Max Pack Width
70 mm
Min Pack Width
20 mm
Footprint (Depth x Height x Length)
1050 mm x 1700 mm x 4550 mm
Weight
1200 kg
Tuck-in
Tuck
Packaging Type
Prefolded Carton

Operating Characteristics


Working mechanism
Intermittent and continuous modes
Production speed
Up to 140 units/minute
Product changeover
Easy size changeovers
Automation level
Norden EasyWare control system
Safety features
Code reading and vision inspection
Operation mode
End Load/Side Load
Integrated steps
Code marking and product safety features integration

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product size flexibility
Easy size changeovers


Food Regulations
CFR Title 21,1935/2004/EC,2023/2006/EC
Safety Regulations
EN ISO 13732-1,2009/105/EC,94/9/EC,97/23/EC,EN ISO 10218-2,EN ISO 11161,EN ISO 12100,EN ISO 13849-1,EN ISO 13849-2,EN ISO 13850,EN ISO 13855,EN ISO 13857,EN ISO 14119,EN ISO 14122 -1 -2 -3 -4,EN ISO 4414,EN ISO 7010,EN 349,EN 415-4,EN 547-1 -2 -3,EN 614-1 -2,EN 619,EN 953,IEC 60204-1,IEC 60529,IEC 60825-1,IEC/TS 62046,ISO/TR 14121-2,2014/30/UE,2006/42/EC,2014/35/UE

Physical Characteristics


Machine depth
1050 mm
Machine height
1700 mm
Machine length
4550 mm
Machine weight
1200 kg
Max pack height
70 mm
Min pack height
15 mm
Max pack length
210 mm
Min pack length
70 mm
Max pack width
70 mm
Min pack width
20 mm
Packaging orientation
Horizontal
Packaging Type
Prefolded Carton

Custom Options


Control panel type
Norden EasyWare control system
Integration possibilities
Code reading and vision inspection
Product size flexibility
Easy size changeovers with predefined format recipes
Fifth panel carton production
Yes
Production mode options
Intermittent and continuous working modes
