Cart drying system for non-threshed corn and seeds

Simplify your seed drying process with a flexible system designed for non-threshed corn and small seed lots that ensures precise airflow and temperature control, enhancing the drying efficiency without compromising seed integrity.

Dries and Regulates Airflow for Seed and Corn

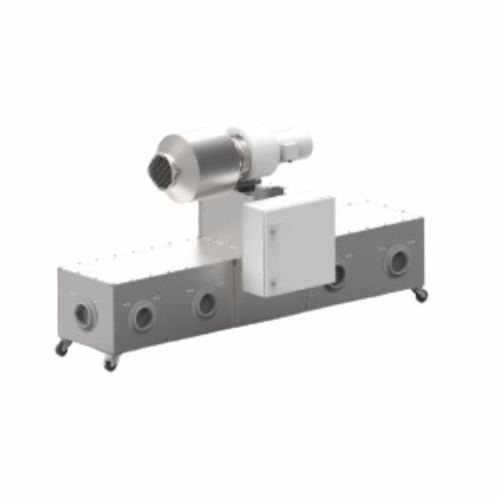

The CDS Cart Drying System from Hoopman Equipment & Engineering is designed for flexible and efficient drying of seeds and non-threshed corn ears. This system is notable for its ability to integrate seamlessly into various agricultural and seed processing operations. By incorporating a frequency-controlled fan and a thyristor-regulated heating system, it ensures precise airflow and temperature control, optimizing the drying process while minimizing energy use. With a capacity to accommodate up to 10 individual carts for batch processing, the system is equipped with an automatic connection closing feature to prevent airflow loss when a cart is removed. This flexible dryer is particularly useful in the agriculture and seed processing industries, supporting the production of sweet corn seeds, hybrid corn seeds, garden flower seeds, and more. Designed with mobility in mind, it features a fan and plenum mounted on swivel wheels, allowing for easy integration into your production line and effective pre-processing, processing, and final conditioning of various seeds and granules.

Benefits

  • Enhances drying efficiency with precise airflow and temperature control, ensuring high-quality seed output.
  • Offers flexibility in operations with the ability to handle diverse seed types and batch sizes.
  • Minimizes energy consumption through the use of a frequency-controlled fan system.
  • Streamlines workflow with its automatic connection closing system, preventing unnecessary airflow loss.
  • Facilitates easy integration and mobility within production lines thanks to its swivel-mounted design.

General


Applications
Non-threshed corn,Small seed lots,Seeds
End products
Grass seeds,Sweet corn seeds,Vegetable seeds,Non-threshed corn ears,Popcorn kernels,Hybrid corn seeds,Garden flower seeds
Steps before
Harvesting,Seed Collection
Steps after
Conditioning,Sorting,Coating
Input ingredients
non-threshed corn ears,non-threshed seeds,smaller seed lots
Output ingredients
dried corn ears,dried seeds
Market info

Technical Specifications


Heating System
6 kW
Process Fan
2.2 HP
Automatic Connection Closing System
Yes
Control Type
PI electronic thermostat
Fan Speed Control
Frequency controller
Noise Level
Very low noise with optional air-inlet noise reducer
Mobility
Mounted on 4 swivel wheels

Operating Characteristics


Working mechanism
Modular cart-based drying
Automatic closing system
Yes
Automation level
Frequency controller for fan speed
Temperature control
PI electronic thermostat
Noise level
Low noise with optional air-inlet noise reducer
Flexibility
Mobile,swivel-wheeled system
Heating element
Thyristor regulated heating system

Material Compatibility


Non-threshed corn ears
Compatible
Non-threshed seeds
Compatible
Smaller seed lots
Compatible
Temperature-sensitive materials
Compatible
Bio-materials
Compatible
Movable containers
Compatible

Physical Characteristics


Machine footprint
Compact,with 4 swivel wheels
Mobility
Moveable with swivel wheels
Connection capacity
10 individual carts
Discharge method
Automatic connection closing system
Heating System
Integrated 6 kW
Fan specifications
Integrated process fan (2.2 HP)

Custom Options


Control panel type
PI electronic thermostat
Fan speed control
Frequency controller
Heating system
Thyristor regulated
Portability
Mounted on swivel wheels
Cart connection system
Automatic closing valve
