Carbonated beverage can filler - 4 spout open fill

Optimize canning carbonated beverages while minimizing CO2 loss with this efficient 4-spout open fill system designed for bench-top operations, offering consistent level sensing and easy adaptability for various can sizes in a batch processing setup.

Fills and Purges Carbonated and Still Beverages

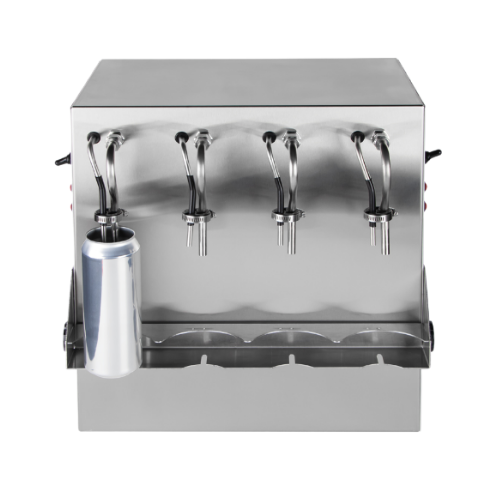

The XF4400 from XpressFill Systems, LLC is a manual bench-top can filler designed for small to medium-sized beverage producers, offering precise liquid level control for both carbonated and still beverages. Utilizing an open fill system, it efficiently processes drinks by employing purge cycles before filling to minimize oxygen intake, thereby preserving product integrity. Tailored for breweries, kombucha producers, and craft beverage facilities, its versatility accommodates an array of end products, including craft beer, sparkling water, and cold brew coffee in various can sizes. With a throughput capacity of 600 cans per hour for 12-ounce cans, this equipment ensures efficient batch operations.

Built with stainless steel for durability and ease of cleaning, the XF4400 maintains lightweight construction for simple integration into existing workflows without the need for extensive setup. It operates under optimal conditions of temperature and pressure to reduce CO2 loss and unwanted foaming, crucial for maintaining carbonation quality. While not certified as explosion-proof, it requires operation in well-ventilated environments and is unsuitable for use with volatile solvents. Engineered in California, its straightforward design provides both reliability and adaptability, supported by XpressFill’s technical service team directly from the factory. Lead times for build-to-order units range between four to six weeks, offering potential customization upon request.

Benefits

  • Minimizes CO2 loss and preserves carbonation quality with optimized purge cycles.
  • Provides consistent fill levels through adjustable height and level sensing, reducing product waste.
  • Enhances operational efficiency with a throughput of 600 cans per hour, ideal for batch processing.
  • Simplifies maintenance and cleaning with stainless steel construction and minimal setup.
  • Supports diverse production needs by accommodating both carbonated and still beverages.

General


Applications
Carbonated beverages,Soda,Teas,Still products,Coffee,Carbonated water,Juices,Kombucha,Beer
End products
Craft beer cans,Flavored soda cans,Hard seltzer cans,Cold brew coffee cans,Kombucha cans,Still water cans,Fresh fruit juice cans,Sparkling water cans,Iced tea cans,Canned iced herbal infusions
Steps before
Carbonation,Cooling,Gas Purging
Steps after
Seaming,Labeling,Packaging
Input ingredients
carbonated beverages,beer,kombucha,presurized source,keg,brite tank,still products,CO2,nitrogenated products
Output ingredients
filled cans,beer cans,kombucha cans,carbonated beverage cans,still product cans
Market info
Xpressfill is known for manufacturing affordable, high-quality bottle filling machines suitable for small to medium-sized production. They specialize in versatile, easy-to-use equipment that serves industries like wine, beverage, and cosmetics, earning a reputation for reliability and customer service.

Technical Specifications


Filling speed
600 cans/hr
Capacity
12 oz cans
Weight
34 lbs
Dimensions
16" wide x 17.0" high x 15.5" deep
Automation
Manual with sensor probe
Can size compatibility
Most can sizes
Construction
Stainless steel
Purge time
Adjustable
Temperature and pressure
Optimal for minimal CO2 loss

Operating Characteristics


Working mechanism
Level fill unit with gas purge cycle
Integrated steps
Pre-fill CO2 purge
Automation level
Sensor probe for fill height control
Batch vs. continuous operation
Batch
Cleaning method
Easy to clean
Changeover time
Quick adjustment for different can heights
Energy efficiency
Effective fill with minimum CO2 loss

Material Compatibility


Cleanability
Easy to clean
Corrosive resistance
Stainless steel construction
Density/particle size
Most can sizes
Temperature tolerance
Optimum conditions for filling

Product type Characteristics


Versatility
Suitable for still products

Physical Characteristics


Compact footprint
Light,table-top construction
Dimensions
16" wide x 17.0" high x 15.5" deep
Weight
34 lbs
Discharge method
Open fill system
Can accommodate most can sizes
Yes
Control panel type
Plug-and-play,no assembly required

Custom Options


Height adjustment
Adjustable for different can heights
Level sensor
Adjustable for consistent level filling
