Capsule sorter elevator for encapsulation processes

Ensure uninterrupted encapsulation by efficiently removing defective capsules, streamlining your production line with precision sorting and automated integration.

Sorts and Elevates Capsules for Encapsulation

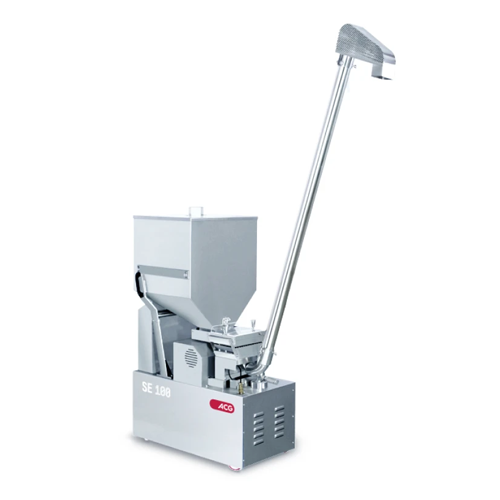

The Sorter Elevator SE 100 and SE 200 from ACG are engineered to enhance efficiency in capsule production lines. By connecting directly to the encapsulation machine’s empty capsule hopper, they resolve the issue of defective capsules by performing a diametric sort early in the process. This integration allows manufacturers in the pharmaceutical and nutraceutical industries to maintain high throughput, optimizing lines with a capacity of up to 220,000 capsules per hour. Operating at high-speed, these sorter elevators prevent encapsulation downtime, ensuring a continuous and automated workflow. Compact in design, they fit seamlessly into existing setups, saving valuable floor space. Additionally, their robust construction offers long-term durability, adaptable to various capsule types, including gelatin and plant-based capsules. Ensuring cleanliness and compliance, they support stringent GMP standards, essential for maintaining product integrity throughout the encapsulation process.

Benefits

  • Increases production efficiency by sorting up to 220,000 capsules per hour.
  • Minimizes process interruptions through effective removal of defective capsules.
  • Saves floor space with a compact design, ideal for crowded production environments.
  • Streamlines operations with seamless integration into existing encapsulation lines.
  • Ensures regulatory compliance with GMP standards for pharmaceutical applications.

General


Applications
Pharmaceutical capsules,Nutraceutical capsules,Pharmaceuticals
End products
Acetaminophen capsules,Gelatin capsules,Plant-based capsules,Multivitamin capsules,Herbal supplement capsules,Ibuprofen capsules,Probiotic capsules,Fish oil capsules,Vitamin d soft gels,Omega-3 capsules
Steps before
Empty capsule manufacturing,Granulation,Capsule filling preparation
Steps after
Capsule filling,Encapsulation,Automated capsule loading,Tablet coating,Packing
Input ingredients
empty capsules,defective capsules
Output ingredients
sorted capsules
Market info
ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.

Technical Specifications


Output
Up to 220,000 capsules/hr
Output for SE 100
Up to 100,000 capsules/hr
Output for SE 200
Up to 220,000 capsules/hr
Automation
Complete automation with ACG connection
Integration
Integrates with ACG encapsulation machines
Footprint
Small footprint

Operating Characteristics


Automation level
Automatic / Integrated with encapsulation machine
Output rate
Up to 220,000 capsules/hr
Integration capability
Integrates with ACG encapsulation machines
Sorter efficiency
Diametric sorting of defective capsules
Small footprint
Space-saving design
Continuous operation
Ensures smooth operation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Small
Integration
With ACG encapsulation machines
Output Capacity
Up to 220,000 capsules per hour

Custom Options


Control Panel Type
Touchscreen/HMI
Integration Compatibility
ACG Encapsulation Machines
Automation Level
Full Automation
Footprint
Compact/Small
Checkweigher Integration
Compatible
