Capsule filling system for pharmaceutical production
Efficiently fill and lock capsules of various sizes with exceptional accuracy, ensuring consistency in pharmaceutical and nutraceutical production.
Fills and Locks Capsules Efficiently

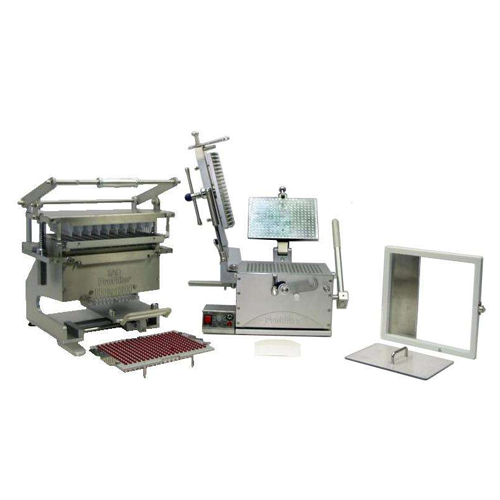

The ProFiller 3800 Capsule Filler from Adelphi Manufacturing streamlines the process of accurately filling, orienting, and locking capsules for pharmaceutical and nutraceutical applications. This benchtop solution excels in filling up to 9,000 capsules per hour, accommodating sizes 00 to 4 with high precision—achieving ± 1-3% accuracy in weight using the USP/EP method. Its rugged 316L stainless steel construction ensures durability and compliance with GMP standards, making it suitable for processing paracetamol, omega-3, multivitamins, and protein powders. Facilitating entry-level automation, it integrates seamlessly into manual operations with optional powder vibrators and various change parts available for customization. Designed for easy operation, it is ideal for pharmaceutical manufacturers and research laboratories seeking efficient, precise capsule filling.
Benefits
- Increases production efficiency by filling up to 9,000 capsules per hour.
- Ensures high precision and reduces material waste with ± 1-3% weight accuracy.
- Complies with GMP standards for reliable pharmaceutical quality.
- Durable construction using 316L stainless steel for long-lasting performance.
- Offers flexible output customization with interchangeable parts and optional accessories.
- Applications
- Pharmaceutical capsules,Supplements,Vitamins,Nutraceutical capsules,Pharmaceutical powder,Nutraceutical powder
- End products
- Omega-3 fish oil capsules,Vitamin d capsules,Paracetamol capsules,Ibuprofen powder,Protein powder,Multivitamin supplements
- Steps before
- Capsule Selection,Powder Blending
- Steps after
- Capsule Counting,Packaging,Labeling
- Input ingredients
- empty capsules,bulk powder,pharmaceutical powder
- Output ingredients
- filled capsules,sealed capsules
- Market info
- Capsule filler speed
- Up to 9,000 capsules per hour
- Capsule capacity per fill cycle
- 300 capsules
- Filling accuracy
- ±1-3% of the average weight
- Construction material
- 316L pharmaceutical grade stainless steel
- Capsule sizes
- 00 - 4
- Filling method
- Orients,separates,fills and fully locks capsules
- Working mechanism
- Orients,separates,fills and locks capsules
- Integrated steps
- Orientation,separation,filling,locking
- Batch vs. continuous operation
- Batch
- Automation level
- Manual
- Changeover time
- Fast changeover with size parts
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- GMP Compliance
- Yes
- Pharmacopoeia Quality Compliant
- USP/EP
- 316L Pharmaceutical Grade Stainless Steel
- Yes
- Material Construction
- 316L pharmaceutical grade stainless steel
- Output Capacity
- Up to 9,000 capsules per hour
- Capsule Sizes Supported
- Sizes 00 - 4
- Efficiency
- 35% faster than similar capsule fillers
- Filling Accuracy
- ± 1-3% of the average weight
- Optional accessories
- Powder vibrators
- Material
- 316L pharmaceutical grade stainless steel
