Cannabis and hemp short path distillation system
Achieve optimal cannabinoid purification with continuous high-volume distillation, ensuring up to 99% cannabinoid content in your distillates through precise feed and discharge control.
Processes and Purifies Cannabis and Hemp Oils

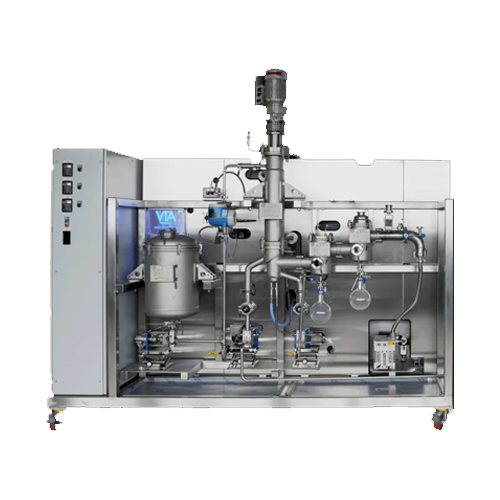

The VKS 125 from Root Sciences is a specialized wiped-film short path distillation system tailored for the cannabis and hemp industries. Utilizing a fully jacketed, continuous feed design, it allows for precise control over distillation and purification processes, producing high-purity cannabinoid distillates like CBD and THC. With a maximum feed rate of 20 L/h and typical throughput of 15 L/h, it efficiently handles high-volume processing needs. This system is GMP-ready, with integrated pumps for true continuous operation, and includes optional upgrades like a dispensing gear pump for series connections. Constructed with 316 stainless steel and borosilicate glass, it offers durability and resistance to corrosive materials. The VKS 125 is compliant with UL standards and is suitable for processors seeking reliable, high-capacity distillation solutions in industrial settings.
Benefits
- Maximizes distillate purity with continuous feed operation.
- Enhances production efficiency, handling up to 20 L/h of crude oil.
- Complies with international GMP standards, ensuring quality assurance.
- Reduces labor requirements through precise automation and control.
- Ensures durability with corrosion-resistant construction materials.
- Applications
- Cannabis oil,Hemp,Hemp oil,Cannabis,Cannabinoids
- End products
- Cannabis tinctures,Broad-spectrum hemp oil,Hemp tinctures,Cbd distillate,Vape cartridges,Cannabis concentrates,Cannabis-infused edibles,Full-spectrum hemp oil,Thc distillate,Hemp-infused topicals
- Steps before
- Extraction,Crude Oil Processing,Purification
- Steps after
- Distillate Formulation,Product Packaging,Quality Assurance,Cannabinoid Testing,Distribution
- Input ingredients
- cannabis crude oil,hemp crude oil
- Output ingredients
- cannabinoid distillate,finished distillate,99% total cannabinoids
- Market info
- Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.
- Throughput Capability
- Typical 15 L/h,Maximum 20 L/h
- Finished Distillate Potency
- Up to 99% total cannabinoids
- Feed Rate
- Maximum 20 L/h
- Evaporator Surface Area
- 0.20 m²
- Power Requirements
- 3Φ 230 V,60 Hz / 3Φ 460 V,60 Hz
- Stages
- Single
- Dimensions
- 8.7’ x 4.1’ x 9.5’
- Materials Used
- 316 stainless steel,borosilicate glass,graphite wiper blocks
- Options
- 50 L Feed vessel,Separate heater,Degassing stage,Additional distillation stages,Vacuum system upgrade
- Continuous Operation
- True continuous feed with integrated pumps
- Working mechanism
- Wiped-film short path distillation
- True continuous feed
- Integrated pumps for continuous operation
- Feed and discharge rates control
- Precise operator control via integrated pumps
- Automation level
- Manual / Automated (Operator controlled)
- Cleaning method
- CIP / Manual
- Batch vs. continuous operation
- Continuous
- Energy efficiency
- High,optimized for non-stop production
- Corrosive resistance (e.g. acids)
- 316 stainless steel
- GMP Compliance
- Optional GMP package includes FAT,SAT,IQ,OQ
- UL Certification
- UL ready (all necessary individual components are UL listed)
- Machine Footprint
- 8.7’ x 4.1’ x 9.5’
- Evaporator Surface Area
- 0.20 m²
- Material
- 316 stainless steel,borosilicate glass,graphite wiper blocks
- Feed/Discharge Method
- True Continuous Feed with integrated pumps
- Stages
- Single
- Optional Upgrade
- Dispensing gear pump
- Control panel customization
- Customizable HMI to client specifications
- Integration with existing systems
- Compatible with existing extraction systems for high-volume processing
- GMP Compatibility
- Optional GMP package including FAT,SAT,IQ,OQ
- Series Connection
- Capability to connect multiple machines in series with dispensing gear pump
- Heating System
- Fully jacketed system with heated transfer hose option
