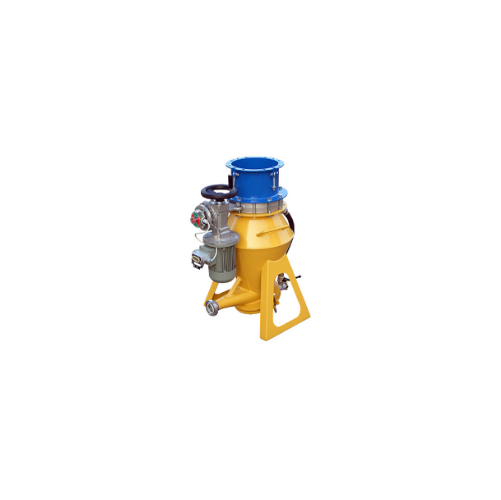

Butterfly valves for dry powder and granule flow interception
Ensure precise control over material flow in your processing line with these robust butterfly valves, designed for efficient handling of dry powders and granules.
Intercepts and Controls Bulk Solids Flow
The VW Butterfly Valves from WAMGROUP are engineered for precise material interception in bulk solids handling scenarios across diverse industries such as building materials, food, and heavy industries. These valves, crafted from robust die-cast aluminum with a choice of carbon or stainless steel discs, ensure durability and compatibility with aggressive materials. Specially designed for both pneumatic and gravity-fed systems, they efficiently handle powders and granules with operating pressures up to 2.5 bar. With interchangeable discs and a replaceable elastomer seal, the valves promise easy maintenance and minimal downtime. Their adaptability to manual, pneumatic, or electric actuation facilitates seamless integration into automated production lines. Available in sizes complying with DIN and ISO standards, they cater to a variety of specific industrial needs, ensuring smooth operation in processing facilities producing cement, various glass products, and metallurgical outputs.
Benefits
- Ensures precise material control, optimizing production efficiency.
- Minimizes maintenance with interchangeable components and easy-to-replace gaskets.
- Accommodates various industry standards, offering seamless integration across systems.
- Handles high-pressure applications, enhancing safety and reliability.
- Reduces operational costs with quick installation and low component count.
- Applications
- Foundry products,Coking products,Iron and steel processing,Building materials,Drymix building materials,Flour milling,Glass processing
- End products
- Castings,Metallurgical coke,Soda lime glass,Cast iron,Wheat flour,Ready-mix plaster,Cement
- Steps before
- Grinding,Drying
- Steps after
- Packing,Coating
- Input ingredients
- gravity-fed dry powders,gravity-fed granules,pneumatically conveyed dry powders,pneumatically conveyed granules
- Output ingredients
- intercepted dry powders,intercepted granules
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Body Material
- Die-cast aluminium
- Disc Material
- Carbon steel/stainless steel
- Seal Material
- Elastomer
- Operating Temperature
- -20 °C ~ 90 °C (-4 °F ~ 194 °F)
- Operating Pressure
- Max. 2.5 bar (36.3 PSI)
- Coupling Flanges
- DIN 2501 PN 2.5 / 6 / 10 / 16
- ANSI B 16.5,class 150
- Gauge Standard
- EN 558 Series 20
- ISO 5752
- API 609
- Flange Surface Design
- DIN 2526,form A
- Valve Identification
- DIN EN 19
- Leak Test Standard
- EN 12 266-1,EN 12 266-2,A grade
- Working Mechanism
- Manual/Actuated
- Batch vs. Continuous Operation
- Batch / Inline Continuous
- Automation Level
- Manual / PLC / SCADA
- Actuation Type
- Pneumatic/Electric
- Cleaning Method
- Replaceable Gasket
- Changeover Time
- Quick Maintenance
- Material Interception
- Gravity-fed/Pneumatic
- Abrasion resistance
- Highly abrasion-resistant
- Corrosive resistance (e.g. acids)
- Carbon steel or stainless steel disc
- Density/particle size
- Suitable for dry powders or granules
- EN 12 266-1,EN 12 266-2 Leak test
- A grade
- Valve Type
- Butterfly Valve
- Body Material
- Die-cast Aluminium
- Disc Material
- Carbon Steel/Stainless Steel
- Seal Material
- Elastomer
- Actuator Type
- Adjusting lever,pneumatic,or electric actuator
- Size Range (Diameter)
- DIN 100 ~ DIN 400
- Flange Compatibility
- DIN 2501 PN 2.5 / 6 / 10 / 16
- ANSI B 16.5,class 150
- Operating Temperature Range
- -20 °C ~ 90 °C (-4 °F ~ 194 °F)
- Operating Pressure
- Max. 2.5 bar (36.3 PSI)
- Differential Pressure
- Max. 2.5 bar (36.3 PSI)
- Interchangeable Components
- Discs,Drive Shaft
- Disc Material
- Carbon Steel / Stainless Steel
- Seal Material
- Elastomer
- Drive Shaft Interchangeability
- DIN 5482 / ISO 5211
- Actuator Type
- Pneumatic / Electric
- Coupling Flange Type
- EN ISO 5211 / DIN 5482
- Flange Size Compatibility
- DIN 100 ~ DIN 400
- Surface Design
- DIN 2526,Form A
