Brine injector for red meat production

Ensure even marinade distribution and consistent flavor profiles in your meat products with precision brine injection, tailored to streamline large-scale processing while minimizing waste.

Injects and Tenderizes Meat, Poultry, Fish

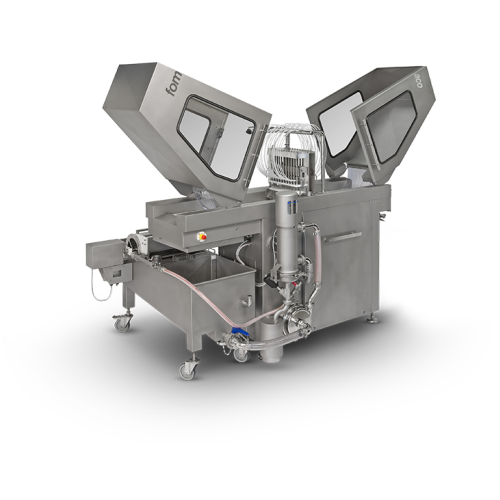

The Fomaco M2 Injector from Fomaco A/S is designed for precise injection and tenderizing in meat, poultry, and fish processing. It minimizes return brine through a unique needle head valve activation system, injecting only when necessary. Equipped with a centrifugal pump, it ensures consistent brine distribution, accommodating various product sizes and needle arrangements. The M2 features easy-to-clean stainless steel and approved plastic construction, with IP 68-protected electrical components for hassle-free maintenance. It integrates seamlessly into high-speed, continuous production lines, offering user-friendly control over pump pressure and production speed, essential for marinated and cured products like ham slices and smoked salmon fillets. Customization options, like the self-cleaning FM 80 protein filter, enhance performance, maintaining brine purity and improving product quality.

Benefits

  • Ensures uniform marination by achieving consistent brine distribution.
  • Minimizes production losses with reduced return brine.
  • Decreases cleanup time with tool-free component removal and IP 68 protection.
  • Enhances product quality by preventing needle blockages with optional self-cleaning filters.
  • Increases operational efficiency with intuitive, user-friendly control panel.

General


Applications
Red meat,Meat products,Poultry,Fish
End products
Marinated pork chops,Corned beef,Processed turkey breast,Marinated chicken breast,Cured sausages,Smoked salmon fillets,Brined whole chicken,Fish fillets in brine,Ham slices,Pork belly for bacon
Steps before
Brine Mixing,Needle Head Configuration,Product Tumbling
Steps after
Product Transport,Brine Distribution Verification,Clean-up and Maintenance
Input ingredients
meat,poultry,fish,brine,marinade
Output ingredients
injected meat,injected poultry,injected fish,marinated meat,marinated poultry,marinated fish
Market info
Fomaco is known for manufacturing advanced injection and marinating equipment for the food processing industry, specializing in high-quality machines that ensure uniformity and precision, enhancing product flavor and texture. They have a solid reputation for innovation and reliability.

Technical Specifications


Accuracy
±0.5–2%
Needle Strokes per Minute
20-90 strokes/min
Number of Needles
26 single,double or quadro
Brine Pressure
Constant due to centrifugal pump
Transport System Width
350 mm / 575 mm / 700 mm
Product Movement per Stroke
30 mm and 50 mm
Maximum Stroke Height
230 mm
Maximum Product Height
200 mm
Cleaning Method
Manual with quick-release system
Weight
700 kg / 780 kg / 850 kg
Filtration Type
F-80 cartridge type filter

Operating Characteristics


Needle control
Maximum needle control minimizes injection errors
Needle operation
Activates needle head valves individually
Brine distribution
Consistent with high performance centrifugal pump
Brine temperature monitoring
Constant read-out for precise production
Equipment cleaning method
Stainless steel and food-approved materials
Conveyor cleaning
Easily removable conveyor with quick-release system
User Interface
User-friendly operator panel
Automation level
Intuitive settings of pump pressure and production speed
Cleaning process
Quick and thorough due to special features

Material Compatibility


Cleanability
Stainless steel,food-grade plastic
Corrosive resistance (e.g. acids)
Stainless steel


CE marking
Yes
FDA materials
Food grade
IP 68 rating
Electrical components
GMP Compliance
Yes

Physical Characteristics


Machine footprint
Based on conveyor width
Weight
700 kg,780 kg,850 kg
Needles per head
26,44,or 54 based on configuration
Needle configuration
Single,double or quadro
Max Product Height
200 mm
Stroke Height
230 mm
Product movement per stroke
30 mm and 50 mm
Materials
Stainless steel,food approved plastic
Conveyor type
Stainless steel or plastic (PEHD,Intralox)
Cleaning advantages
Tool-less removal,quick-release system
Control panel type
User friendly operator panel

Custom Options


Control panel type
User-friendly operator panel
Needle Options
Single,double,or quadro
Conveyor Type
Stainless steel or plastic (PEHD,Intralox)
Configuration Options
Needle heads,tenderizer heads,filters
Cleaning system
Quick-release for easy cleaning
Filter Type
F-80 cartridge type filter,FM 80 self-cleaning
