Blow/fill/seal packaging for large bottles

Need a high-speed solution for producing sterile liquid formulations in large volumes? This system streamlines blowing, filling, and sealing operations to maintain product integrity and accelerate your packaging line.

Packages Liquid Formulations with Blow/Fill/Seal Process

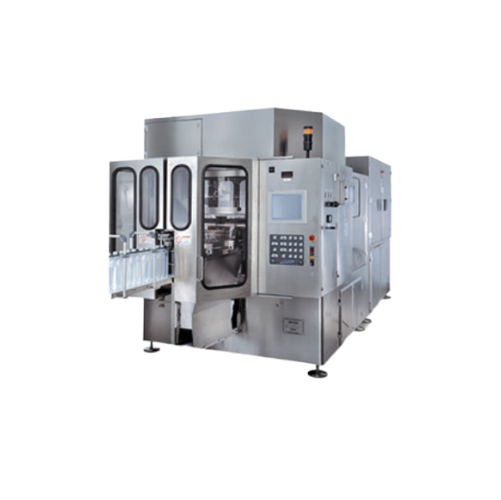

The ASEP-TECH® Model 660 from Weiler Engineering, Inc. is an engineered-to-order blow/fill/seal packaging machine that streamlines the production of liquid pharmaceuticals and nutraceuticals. Its servo-controlled fill motion system enables precise control and consistent filling rates, making it ideal for large-scale production environments. Capable of producing containers ranging from 100 mL to 2000 mL, it accommodates a wide variety of applications, including injectables, ophthalmics, respiratory therapies, and liquid supplements such as saline solutions and vitamin syrups.

The machine efficiently integrates into existing production lines, offering high-speed operation with up to 5,000 containers per hour, dependent on container design and product characteristics. Designed for robust industrial use, it supports continuous operation and reduces changeover times, thanks to its innovative stepped-base design. With capabilities for producing large bottle packages, the Model 660 complies with current Good Manufacturing Practices (cGMP) and can be tailored to meet specific production requirements, ensuring optimal performance and reliability in demanding manufacturing environments.

Benefits

  • Maximizes production efficiencies with high-speed operation up to 5,000 containers per hour.
  • Ensures product sterility and quality with integrated blow/fill/seal process.
  • Offers flexibility with wide container size range from 100 mL to 2000 mL.
  • Reduces downtime and maintenance with easy-to-change stepped-base design.
  • Complies with cGMP standards, supporting pharmaceutical quality assurance.

General


Applications
Ophthalmics,Liquid formulations,Nutraceuticals,Respiratory therapy,Injectables
End products
Saline solutions,Vitamin supplements,Cough syrups,Eye drops,Nebulizer solutions
Steps before
Steps after
Input ingredients
100mL to 2000mL containers,materials for container production,products for packaging
Output ingredients
produced containers,packaged products,finished bottles
Market info
Weiler Engineering is known for designing and manufacturing advanced aseptic processing technologies, particularly its innovative Blow/Fill/Seal (BFS) systems, which provide efficient and sterile liquid packaging solutions for the pharmaceutical and healthcare industries.

Technical Specifications


Production Speed
1850 - 5000 containers/hour
Number of Cavities
10,14,16,16,20
Container Size
100mL to 2000mL
Container Range
1000,500,250,100 mL
Automation
Servo controlled fill motion
Design Type
Stepped-base for easy maintenance and changeover

Operating Characteristics


Working mechanism
Blow/Fill/Seal process
Integrated steps
Blow,Fill,Seal
Automation level
Servo controlled fill motion
Stepped-base design
Easy maintenance and changeover
Container production range
100mL to 2000mL
Output capacity
1850 to 5000 containers/hour

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size
100mL to 2000mL
Container type
Wide range container production

Physical Characteristics


Container Size
100mL to 2000mL
Number of Cavities
10,14,16,20
Machine Type
Blow/Fill/Seal Packaging Machine
Design
Stepped-base design

Custom Options


Maintenance Ease
Stepped-base design
