Blister packaging leak tester
Ensure airtight integrity in your blister packaging with precise vacuum and dye penetration tests, safeguarding your pharmaceutical tablets and packaging materials from potential leaks and contamination.
Performs Leak and Density Testing

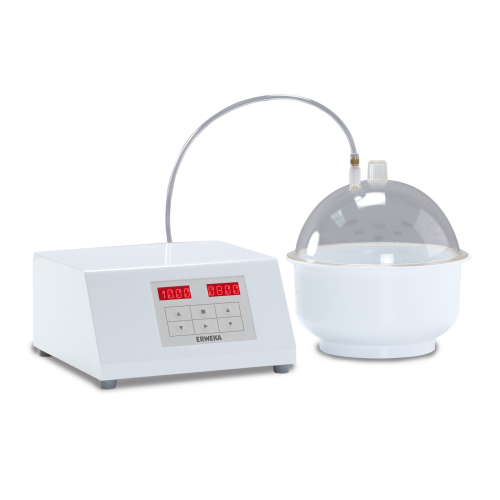

The VDT/S from ERWEKA GmbH is a versatile benchtop solution designed for precise leak and density testing of blister packaging and other materials in the pharmaceutical and packaging industries. By employing a vacuum-generated methylene blue dye test, it accurately detects imperfections in sealed packaging. The vacuum is maintained with an integrated pump, adjustable up to 100 mbar, and can be continuously monitored via an LED display. For accurate documentation and analysis, test parameters can be captured through a USB interface or printer. The VDT/S is especially suited for quality control laboratories, offering customization with different container sizes and an optional validation toolkit for calibration. Its manual operation ensures flexibility and reliability in diverse laboratory settings.
Benefits
- Enhances packaging integrity by detecting leaks that compromise product safety.
- Offers flexible testing with customizable container sizes to suit various packaging formats.
- Simplifies documentation and analysis with USB connectivity for parameter tracking.
- Ensures precision and reliability through an integrated and recalibratable vacuum pump.
- Optimizes testing efficiency in quality control environments with easy-to-set vacuum parameters.
- Applications
- Blister packaging,Packaging materials,Pharmaceutical tablets
- End products
- Steps before
- Packaging preparation,Calibration of vacuum pump
- Steps after
- Inspection,Packing
- Input ingredients
- blisters,packaging forms,methylene blue solution
- Output ingredients
- leak-free blister packs,test results,documented test run parameters
- Market info
- ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.
- Maximum vacuum
- Up to 100 mbar
- Vacuum hold time
- Adjustable via keypad
- Container diameter options
- 150 mm,200 mm,250 mm,300 mm
- Documentation method
- USB interface/printer
- Vacuum display
- LED display
- Working mechanism
- Vacuum leak test
- Test method
- Methylene blue dye test
- Automation level
- Manual with keypad
- Integrated steps
- Vacuum generation,pressure maintenance,penetration process
- Pressure range
- Up to 100 mbar
- Data documentation
- USB or printer interface
- Container options
- 150–300 mm diameter
- Validation options
- Recalibration kit
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container diameter
- 150 mm / 200 mm / 250 mm / 300 mm
- Machine footprint
- Compact
- Control panel type
- Symbol keypad
- Display type
- LED display
- Vacuum system
- Integrated vacuum pump
- Container size
- 150 mm / 200 mm / 250 mm / 300 mm diameter
- Control panel type
- Symbol keypad
- Integration option
- USB interface / connected printer
- Validation options
- Validation tool kit,certified
