Biomass digester feeding system

Efficiently integrate biomass into your biogas production process with a system that seamlessly conveys, lifts, and injects materials, optimizing your renewable energy yields.

Transfers and Injects Biomass into Digesters

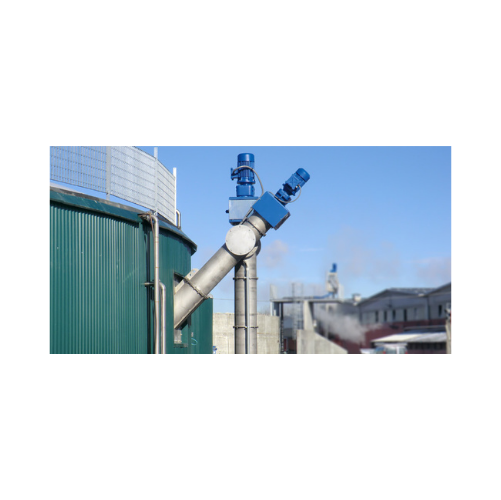

The Bulk Biomass Digester Feeding System TCB by WAMGROUP is an essential component for biogas plant operators seeking efficient material handling solutions. This system combines a BFS Horizontal Screw Feeder, BVS Vertical Screw Conveyor, and BIS Injector Screw to transfer biomass seamlessly from mixers to digesters, optimally charging it below liquid levels. Its robust design ensures versatility in handling various organic matters, such as livestock manure and agricultural by-products, ultimately producing biogas, bioethanol, and organic fertilizers. Capable of continuous, high-capacity operation, it integrates seamlessly with existing automated systems, featuring superior energy efficiency through precision motor control. The equipment is available in durable stainless steel, providing excellent corrosion resistance for long-term use in harsh environments. With its standardized modular design, the TCB system supports easy maintenance and inspection, bolstered by WAMGROUP’s engineering support for personalized configuration to suit specific operational needs.

Benefits

  • Enhances operational efficiency with a continuous, automated biomass feeding process.
  • Adapts to various organic inputs, strengthening biogas and renewable fuel production.
  • Minimizes maintenance downtime through inspection-friendly modular components.
  • Maximizes durability and lifespan with corrosion-resistant stainless steel construction.
  • Integrates with existing plant systems to optimize resource use and lower operational costs.

General


Applications
Agricultural crops,Organic household waste,Agricultural by-products,Biomass,Livestock manure,Biogas digestate,Livestock by-products
End products
Animal bedding,Organic fertilizers,Bioethanol,Green energy,Biogas,Renewable fuels,Slurry treatment products,Soil amendments,Biodiesel,Compost
Steps before
Mixing,Hopper Loading
Steps after
Digestion in Biogas Plant
Input ingredients
biomass,organic matter,mixer
Output ingredients
biogas,digestate,processed biomass
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Material Transfer Type
Screw conveyor system
Vertical Conveyance
Yes,via BVS Vertical Screw Conveyor
Horizontal Conveyance
Yes,via BFS Horizontal Screw Feeder
Injector Screw
Yes,BIS Injector Screw
System Compatibility
Standard connection for mixer/hopper
Load-bearing Structure
Vertical screw conveyor with load-bearing structure
Material of Construction
Highly resistant steel
Modular Design
Standardised modular industrial equipment
BFS Screw Feeder Features
Optional inlet spouts to fit common mixers
BVS Vertical Screw Conveyor Features
Lifts biomass to appropriate height
BIS Injector Function
Injects below liquid level of digester
Bridge Breaker Option
Available on inlet spout for mixer/hopper
Adjustable Feet
304 SS for BVS
Support Structure
304 SS for BFS

Operating Characteristics


Working mechanism
Screw conveyor system
Integrated steps
Feeding,lifting,and charging into digester
Batch vs. continuous operation
Continuous
Maintenance ease
Inspection and maintenance-friendly
Automation level
Standardised modular industrial equipment

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Suitable for biomass
Cleanability
Easy to maintain and clean
Density/particle size
Handles variable densities and sizes

Product type Characteristics


Vertical conveyor type
Screw

Physical Characteristics


Compact footprint
Small footprint
Discharge method
Injector Screw below liquid level
Control panel type
Inspection and maintenance-friendly
Load-bearing structure
Extra-thick heavy-duty helicoid flighting
Material of construction
Highly resistant steel
Standardized equipment
Modular industrial equipment

Custom Options


Adjustable feet for BVS
304 SS
Support structure for BFS
304 SS
