Beverage deaeration, carbonation and mixing system

Streamline your beverage production process with an efficient solution for deaeration, carbonation, and precise mixing, ensuring consistent quality and flavor across both carbonated and non-carbonated drinks.

Deaerates, Carbonates, and Mixes Beverages

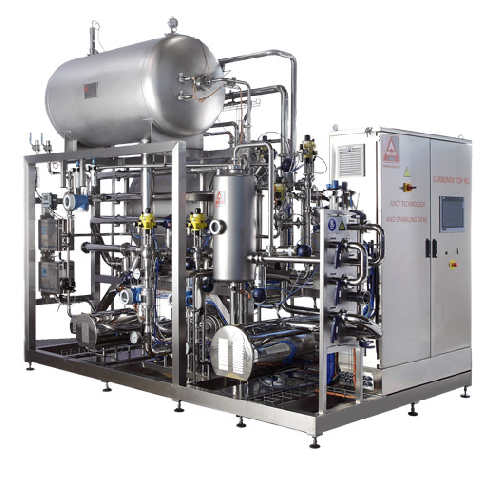

The EASY.Carbomix from A Due S.p.A. is an automated system that excels in precision beverage carbonation and mixing. Designed for beverage manufacturers, it addresses challenges in maintaining consistent Brix levels and CO2 content, making it suitable for a wide array of applications including soft drinks, flavored waters, juices, and non-alcoholic beers. Through its continuous and high-speed automatic operations, EASY.Carbomix employs a multi-stage process that includes CO2 and syrup dosage, deaeration, and mixing, followed by storage under pressure.

This unit offers flexible configurations with a nominal production capacity ranging from 5,000 to 60,000 liters per hour, ensuring it meets the demands of diverse processing lines. Equipped with mass flow meters and using feedback systems, it continuously monitors and corrects Brix and CO2 levels, ensuring the highest product consistency. EASY.Carbomix also supports energy efficiency through optimized variable flow rates which minimize syrup waste during operational transitions.

Integrating seamlessly into existing lines, it features remote monitoring capabilities via modem connection, allowing for real-time operational oversight. The unit adheres to rigorous industry standards, making it a reliable choice for high-quality beverage production.

Benefits

  • Ensures consistent beverage quality by accurately maintaining Brix and CO2 levels.
  • Reduces syrup waste during production changes, lowering material costs.
  • Offers flexible production capacities to align with varying demand and operational needs.
  • Enhances operational efficiency with real-time remote monitoring and control capabilities.
  • Minimizes energy usage through optimized flow rate management and process automation.

General


Applications
Carbonated beverages,Non-alcoholic beer,Non-carbonated beverages,Hard seltzers,Fantasy drinks,Still mineral water,Juices,Soft drinks,Carbonated mineral water,Flavored water
End products
Orange soda,Tonic water,Still bottled water,Raspberry hard seltzer,Cherry fantasy beverage,Apple juice,Lemon hard seltzer,Orange juice,Lemon-lime soda,Ginger ale,Grape soda,Sparkling water,Lemon flavored water,Blue raspberry fantasy beverage,Cola,Strawberry kiwi flavored water,Non-alcoholic lager
Steps before
Water filtration,Water clarification,Water disinfection,Sugar dissolving,Syrup preparation,Ingredient management
Steps after
Beverage thermal treatment,Aseptic storage,Bottling,Packing
Input ingredients
water,syrup concentrates,CO2,N2,various liquid ingredients,natural mineral water,non-carbonated beverages
Output ingredients
carbonated soft drinks,carbonated mineral water,non-carbonated soft drinks,still mineral water,CSD drinks,wine,finished drink with controlled Brix-degree and CO2 content
Market info
A Due is known for designing and manufacturing beverage processing equipment, specializing in water treatment, syrup preparation, and complete automation solutions for the beverage industry, with a strong reputation for innovation and quality engineering.

Technical Specifications


Flow rate
5,000 to 60,000 l/h
Accuracy
± 0.1 volumes CO2
Temperature for CO2 solubilization
2° to 4° C
Pressure for CO2 solubilization
6 bars
CO2 content range
4 to 8 gr/l
Deaeration efficiency
Maintained from 30% to 100% of nominal flow rate
Oxygen content
0.2 ppm in deaerated water
Automation
Automatic adjustment of °Bx and CO2 content
Brix variation (steady production)
σ=0.02 °Brix
CO2 Vol/l variation (steady production)
σ=0.08 Vol/l

Operating Characteristics


Automation level
Automatic / Easier.Carbomix / Easier.CarboV
Batch vs. continuous operation
In-line continuous
Cleaning method
CIP compatible
Control parameters
Brix,CO2,pH,Temperature,Pressure,Flow rates
Product Changeover
Quick with minimal waste
Deaeration stages
Single-stage / Double-stage
Syrup mixing ratio adjustment
Automatic with feedback correction
Gas injection compatibility
CO2 / N2 for water deaeration
Remote control capability
Modem connection for remote operation
Syrup waste reduction
Minimal during start-up and product changeover

Material Compatibility


Abrasion resistance
Not specified
Biological compatibility
Food-safe materials
Cleanability
CIP cleaning compatible
Corrosive resistance (e.g. acids)
Stainless steel construction

Product type Characteristics


Container type
Glass / PET

Physical Characteristics


Machine footprint
Compact
Tank shape
Cylindrical
Discharge method
Automatic
Control panel type
Touchscreen
Compact footprint
Yes

Custom Options


Control panel type
HMI / Touchscreen
Integration possibilities
Remote control via modem
Flow rate range
5,000 to 60,000 l/h
Gas injection system
CO2 / N2 dosing system
Saturation column
Insulated,stainless steel
Automation level
Automatic adjustment of Bx and CO2 content
