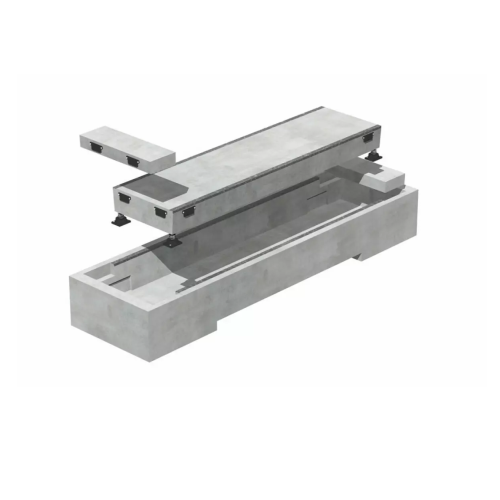

Axle load weighing system for trucks and construction machinery

Ensure accurate and reliable axle load measurements for trucks and construction machinery, enhancing weight management and preventing overload issues at key operational entry and exit points.

Measures Axle and Total Loads for Vehicles

The ALS Axle Load Scales with DISOMAT® Tersus from Schenck Process offers a highly efficient solution for dynamic and static axle load measurement, crucial for construction, transport, and yard logistics. Designed to meet the specific needs of trucks, construction machinery, and agricultural tractors, these scales ensure precision and reliability across diverse applications. Integrated with robust ring torsion load cells and pre-fitted concrete foundations, the system simplifies on-site installation and minimizes construction work. The dynamic weighing capability allows for real-time data management via the Disoware “S” software, facilitating overload prevention and compliance at logistics entry and exit points. Engineered for flexibility, the system can be relocated with minimal effort, accommodating shifting operational demands. This ensures operational efficiency, safety, and regulatory compliance in industries such as construction, heavy machinery, and transport.

Benefits

  • Enhances operational efficiency by providing real-time axle load data for transport safety and compliance.
  • Minimizes site preparation and installation time with pre-assembled, robust components.
  • Ensures adaptability with easy relocation to meet various site demands.
  • Streamlines overload prevention at logistics points, safeguarding against regulatory fines.
  • Supports comprehensive data management and reporting through integrated software solutions.

General


Applications
Construction machinery,Trucks,Tractors,Entrance and exit logistics,Total loads,Axle loads,Overload prevention
End products
Vehicle axle load measurements,Freight weight monitoring systems,Agricultural tractors,Earthmoving machinery,Aggregate trucks,Logistics entry and exit measurement systems,Construction site transport vehicles
Steps before
Excavation,Site Compaction,Foundation Preparation
Steps after
Data Management,Weighing Communication Setup,Overload Prevention
Input ingredients
trucks,construction machinery,multi-axle vehicles
Output ingredients
axle loads,total loads,weights
Market info
Schenck Process is known for its expertise in material handling, weighing, feeding, and automation solutions. The company has a strong reputation for delivering high-quality engineered-to-order equipment for diverse industries, backed by innovative technology and customer-centric service.

Technical Specifications


Installation Size
Compact and flat
Weighing Type
Static or Dynamic
Foundation Size
Precast,around 4m wide and around 1m long
Material
High-quality precast concrete
Load Cells
Pre-fitted robust ring torsion load cells
Software
Disoware “S” and “Hermes” software
Weighing Terminal
Disomat® Tersus
Mobility
Easy to move and reinstall
Construction Work
Minimal required on-site

Operating Characteristics


Installation simplicity
Pre-assembled
Mobility
Easy to relocate
Weighing mode
Static / Dynamic
Use in non-legal-for-trade environments
Yes
Multi-axle vehicle compatibility
Supported
Minimized construction requirement
Minimal
Automation level
Integration with Disomat Tersus

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Type of Vehicle
Trucks,construction machinery
Weighing Application
Non-legal-for-trade

Physical Characteristics


Compact footprint
Yes
Machine footprint
4m x 1m
Installation dimensions
Flat
Precast concrete platform
Integrated
Load cells
Preassembled,robust ring torsion
Mobility
Easy to relocate

Custom Options


Installation Dimensions
Compact and flat
Mobility
Easy relocation
Pre-assembly
Fully pre-assembled
Installation Type
Precast concrete platform
Software Compatibility
Disomat® Tersus with Hermes software
Data Management Software
Disoware “S”
Load Cell Type
Ring torsion load cells
Load Cell Bearings
Pre-fitted,robust
