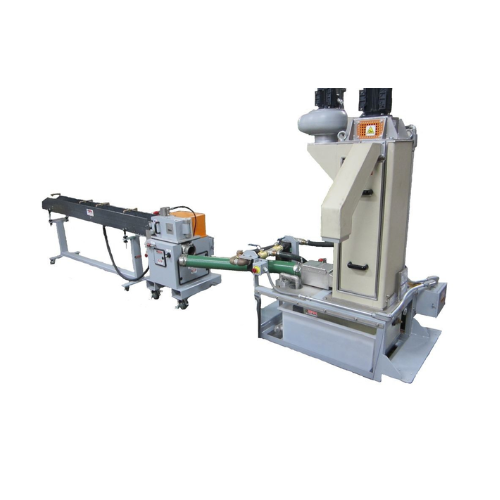

Automatic wet cut strand pelletizer for thermoplastic pellet production

Streamline your polymer pellet production with this advanced pelletizing system, offering efficient wet cutting, low noise operation, and automated features to ensure continuous, uninterrupted processing for high-quality thermoplastic pellets.

Processes Thermoplastic Strands into Cooled Pellets

The WS Series Strand Pelletizers from Bay Plastics Machinery excel in transforming thermoplastic strands into uniform pellets, ideal for various plastics and polymer applications. These machines utilize an automated start-up process with re-threading capabilities, allowing for seamless operation without manual intervention. Designed to work alongside reactors, autoclaves, and extruders, the WS series ensures efficient wet cut strand pelletizing, providing precise cooling and reducing operational noise. With inverter-driven models ranging from the WSD 200 to WSD 1000, they accommodate varying capacities with significantly reduced energy consumption. Cooling is achieved efficiently as cut pellets are reintroduced into a water trough, promoting additional cooling. The system handles up to 28,775 lb/hr with minimal dust generation, making it an optimal choice for polyethylene, polypropylene, and other polymer pellets. Engineered to support high-speed, continuous processes, the WS series is compact and conserves space, ensuring easy integration into existing production lines.

Benefits

  • Enhances efficiency with automated start-up and re-threading, minimizing manual intervention.
  • Ensures product quality by reducing dust and maintaining consistent pellet sizing.
  • Lowers noise pollution with quiet operational design for a safer work environment.
  • Optimizes space usage with a compact, integrated design suitable for cramped production areas.
  • Increases cooling efficiency with recirculated water cooling, reducing the risk of thermal degradation.

General


Applications
Polymers,Extruded plastics,Industrial polymers,Plastics,Thermoplastics,Polymer pellets
End products
Polycarbonate pellets,Thermoplastic elastomer (tpe) pellets,Polyamide pellets,Polyethylene pellets,Acrylonitrile butadiene styrene (abs) pellets,Nylon pellets,Polyvinyl chloride (pvc) pellets,Polystyrene pellets,Polyethylene terephthalate (pet) pellets,Polypropylene pellets
Steps before
Extrusion,Strand Die Attachment
Steps after
Cooling,Final Pellet Handling,Additional Cooling in Trough Water
Input ingredients
thermo-plastic strands,reactor output,autoclave output,extruder output
Output ingredients
thermo-plastic pellets,dust-free pellets
Market info
Bay Plastics Machinery is known for manufacturing pelletizing equipment and systems, recognized for their innovation and quality in the plastics industry. They specialize in developing customized solutions for polymer processing, focusing on efficiency and reliability.

Technical Specifications


Work Width
8″ (200mm) - 40″ (1000mm)
Drive
Inverter
Horsepower (HP)
15 HP (11 kW) - 60 HP (45 kW)
Number of Strands
40 - 200
Strand Speed
90-385 ft/min
Cooling Length
5-16 ft (1.5-5m)
Cooling Water
52 gpm or 12 m³/h - 255 gpm or 63 m³/h
Throughput
5,750 lb/hr – 28,775 lb/hr

Operating Characteristics


Automation level
Automated start-up
Operation type
Automatic
Re-threading capability
Automatic re-threading of broken strands
Noise level
Low operating noise level
Space efficiency
Compact and space saving design
Cooling process
Cut pellets reintroduced to water trough for cooling

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Compact and space-saving design
Work Width
8″ (200mm) to 40″ (1000mm)
Drive Type
Inverter
Number of Strands
40 to 200
Strand Speed
90-385 ft/min
Cooling Length
5-16 ft (1.5-5 m)
Cooling Water Requirement
52 gpm to 255 gpm

Custom Options


Integration possibilities
Reactor,Autoclave,Extruder
