Automatic tube filling for multi-color products

Achieve precision in multi-color product packaging with seamless co-extrusion and high-speed tube filling, ideal for large batch production.

Fills and Co-Extrudes Multi-Color Products

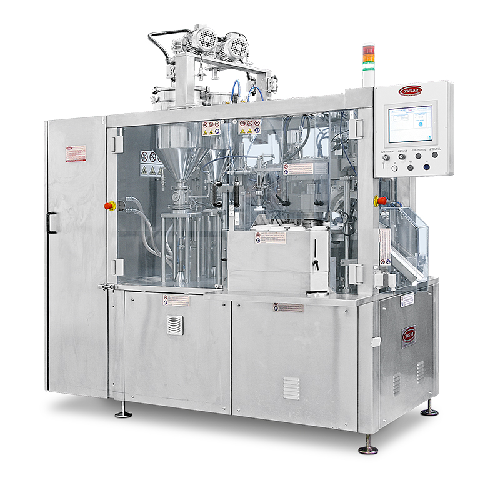

The P300 from TGM – TECNOMACHINES is an automatic tube filling machine designed to handle co-extrusion of 2-3 color products efficiently. This machine is a versatile solution ideal for cosmetics, pharmaceuticals, and personal care manufacturers producing items such as toothpaste, ointments, and topical creams. It features a robust, ergonomic feeder and operates at high speeds of up to 6,000 tubes per hour, making it suitable for large batch production. The P300 integrates seamlessly into existing production lines, offering an optimized workflow with automatic controls. Available in configurations to accommodate metal and plastic pipes with diameters ranging from 10 to 50 mm and lengths from 50 to 240 mm. Constructed to meet industry standards, it provides reliable performance with easy maintenance through its clean-in-place (CIP) capabilities. Custom engineering support is available to tailor the machine to specific operational requirements.

Benefits

  • Enhances production efficiency with a capacity of up to 6,000 tubes per hour.
  • Supports product diversity with multi-color co-extrusion capability.
  • Integrates smoothly into existing lines, reducing installation and operational transition costs.
  • Lowers maintenance time through clean-in-place (CIP) technology.
  • Customizable configurations meet specific manufacturing requirements, ensuring optimal performance.

General


Applications
Personal care,Chemicals,Cosmetics,Food and beverage,Pharmaceuticals
End products
Ketchup,Hair gel,Gelatin capsules,Chocolate syrup,Lotion,Topical creams,Toothpaste,Ointments,Shampoo,Face cream,Mustard,Liquid soaps
Steps before
Emulsification,Mixing
Steps after
Cartoning,Bundling,Case Packing
Input ingredients
metal pipes,plastic pipes
Output ingredients
co-extruded 2-3 colors,2 concentric colors,deep-stripes products
Market info
TGM - TECNOMACHINES srl is known for manufacturing customized, engineered-to-order packaging machinery, specializing in designing and producing high-quality, efficient equipment tailored to specific customer needs in various industries.

Technical Specifications


Filling speed
Up to 6000 Tubes/Hour
Tube diameter
Metal
Tube length
50 - 240 mm
Filling capability
Co-extruded 2-3 colors and 2 concentric colors
Automation
Automatic

Operating Characteristics


Automation Level
Fully Automatic
Color Capability
2-3 Coextruded Colors
Production Capacity
Up to 6000 Tubes/Hour
Batch Size
Large Batches
Compact Design
Yes
Versatility
High
Tubing Material Compatibility
Metal and Plastic

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact design
Feed method
Ergonomic feeder
Tube diameter range
10–42 mm (metal),10–50 mm (plastic)
Tube length range
50–240 mm

Custom Options


Control panel type
Ergonomic
Color extrusion options
2-3 colors,2 concentric colors
Material compatibility
Metal,Plastic
