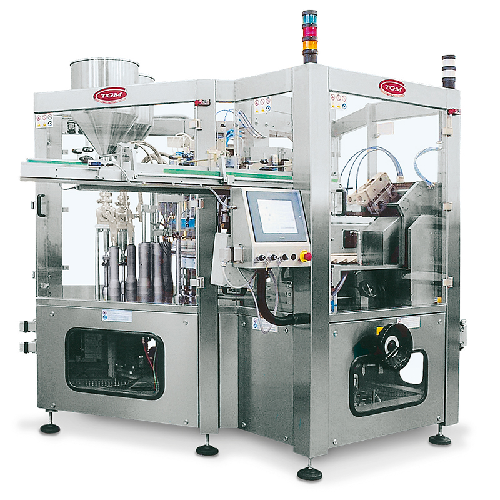

Automatic tube filler for co-extruded products
Achieve precise multicolor co-extrusion filling with high-speed accuracy, optimizing your production line for personal care and cosmetic products.
Processes Multicolor and Coextruded Tube Filling
The T242 from TGM Tecnomachines is an automatic high-speed tube filling machine designed specifically for the cosmetics, personal care, and pharmaceutical industries. What sets it apart is its capability to efficiently process three tubes simultaneously, making it an optimal solution for handling large batches of multicolor and coextruded products. Utilizing advanced coextrusion technology, the T242 fills tubes with 2-3 colors, achieving intricate surface and deep-stripe designs with precision. Operating at speeds of up to 14,000 tubes per hour, this machine is suitable for a range of liquid products, including toothpaste, haircare products, and skin creams. Integrated with a large ergonomic feeder, it facilitates seamless operation in high-demand production environments. Its automatic operation is complemented by PLC controls, ensuring seamless integration within existing production lines. Built to cater to demanding applications, the T242 features robust construction options for extended durability and minimal maintenance, ensuring continuous and reliable performance in dynamic manufacturing settings.
Benefits
- Enhances production efficiency by processing three tubes simultaneously.
- Reduces color variation with precise coextrusion capabilities for multicolor products.
- Minimizes operational costs through high-speed output of up to 14,000 tubes per hour.
- Integrates seamlessly with existing production lines via PLC-controlled automation.
- Facilitates large batch production, ideal for scaling cosmetic and pharmaceutical manufacturing operations.
- Applications
- Multicolor pasting,Personal care products,Coextruded products,Toothpaste,Cosmetics,Skin creams,Haircare products,Pharmaceuticals
- End products
- Steps before
- Mixing,Emulsification
- Steps after
- Cartoning,Bundling,Case Packing
- Input ingredients
- metal pipes,plastic pipes,2-3 color co-extruded products,2-3 color deep-stripes products
- Output ingredients
- filled tubes,surface stripes products
- Market info
- TGM - TECNOMACHINES srl is known for manufacturing customized, engineered-to-order packaging machinery, specializing in designing and producing high-quality, efficient equipment tailored to specific customer needs in various industries.
- Speed
- Up to 14000 Tubes/Hour
- Tube Diameter Range
- 10 - 40 mm (Metal Pipes),10 - 50 mm (Plastic Pipes)
- Tube Length Range
- 50 - 240 mm
- Automation
- Automatic
- Working mechanism
- Automatic tube filling
- Integrated steps
- Feeding,filling,co-extrusion
- Batch vs. continuous operation
- Batch
- Color capability
- 2-3 colors
- Tube handling capacity
- Three tubes at a time
- Maximum production rate
- Up to 14000 tubes/hour
- Tube diameter range
- 10 mm - 50 mm
- Tube length range
- 50 mm - 240 mm
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Color variations
- 2-3 colors
- Surface design options
- Deep-stripes / Surface stripes
- Machine Footprint
- Compact
- Tube Capacity
- 3 tubes simultaneously
- Color Filling Capability
- 2-3 color co-extrusion
- Ergonomic Feeder Type
- Very large ergonomic feeder
- Tube Diameter Range
- 10 - 50 mm
- Tube Length Range
- 50 - 240 mm
- Material Compatibility
- Metal and Plastic Pipes
- Throughput
- Up to 14,000 tubes/hour
- Control panel type
- Touchscreen HMI
- Integration possibilities
- Industry 4.0 Compatible
- Color options for tubes
- 2-3 Color Co-extrusion
- Tube size range
- Metal
- Production capacity
- Up to 14000 Tubes/Hour
