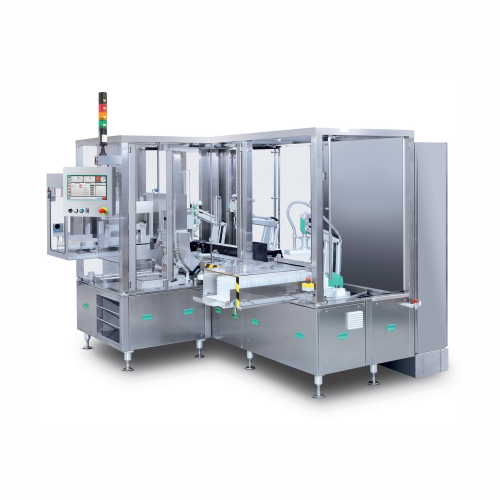

Automatic system for arranging inspected syringes in rondo-trays

Streamline syringe handling and packaging with this high-speed, continuous operation system designed for precise loading, inspection, and tray arranging, ensuring seamless integration in pharmaceutical processing lines.

Re-Arranges and Inspects Pharmaceutical Syringes

The NEXTRA T25 from Marchesini Group is an automatic machine engineered to optimize the handling and re-arranging of pharmaceutical syringes. This equipment stands out due to its capability to streamline the process of loading, inspecting, and re-traying pre-filled syringes with precision and efficiency. Its working principle includes a walking-beam continuous re-traying system, facilitated by robotic automation that ensures syringes are gently handled with horizontal orientation in rondo-trays. It is widely applied in the production of pre-filled insulin syringes, single-use sterile vaccine syringes, and similar medical devices. With a throughput of up to 24,000 syringes per hour, the NEXTRA T25 integrates seamlessly into high-speed production lines, offering full automation through its PLC-controlled system and vision technology to ensure tray completeness. Minimizing energy consumption, it is available in a no glass-to-glass contact version, safeguarding product integrity while meeting industry standards. Designed for the pharmaceutical and biotech industries, it provides ease of maintenance and can be tailored with various configurations to meet specific operational needs.

Benefits

  • Enhances productivity with high-speed re-traying up to 24,000 syringes per hour.
  • Increases operational efficiency by seamlessly integrating into existing production lines.
  • Minimizes product damage through gentle handling and no glass-to-glass contact options.
  • Ensures product safety and quality with precise inspection and automatic rejection of incomplete trays.
  • Lowers maintenance downtime with easy-to-configure system and robust design.

General


Applications
Medical devices,Pharmaceutical syringes,Injectable drugs
End products
Reconstituted lyophilized drug syringes,Heparin injection syringes,Pre-filled insulin syringes,Single-use sterile vaccine syringes,Pre-filled adrenalin auto-injectors
Steps before
Inspection,Syringe Filling,Syringe Stoppering
Steps after
Tray Stacking,Packaging,Sterilization
Input ingredients
inspected syringes,empty trays
Output ingredients
re-arranged syringes,rondo-trays
Market info
Marchesini is renowned for manufacturing high-quality packaging machinery for the pharmaceutical and cosmetics industries, offering innovative, customized solutions with advanced automation and technology.

Technical Specifications


Syringe Capacity
0.5 to 20 ml
Output Speed
Up to 24,000 syringes/h
Automation
Automatic loading of trays
Rejection System
Automatic rejection of incomplete trays
Tray Handling
Rondo-Tray
No Glass-To-Glass Contact
Available
Vision System
Tray completeness check

Operating Characteristics


Automation level
Automatic with robotic integration
Tray loading mechanism
Automatic loading of stacked empty trays
Re-traying method
Walking-beam continuous re-traying by robot
Orientation control
All arranged with the same orientation
System rejection capability
Automatic rejection of incomplete trays
Contact method
No Glass-To-Glass Contact version available
Vision system
Vision system to check tray completeness

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Syringe handling
Gentle loading

Physical Characteristics


Discharge method
Automatic Loading of stacked empty Trays

Custom Options


Control Panel Type
Touchscreen HMI
Integration Possibilities
Robotic automation
No Glass-To-Glass Contact Version
Available
Vision System
Tray completeness check
Tray Handling
Rondo-Tray style
