Automatic reverse osmosis water treatment plant

Ensure high-purity water by seamlessly integrating this reverse osmosis treatment plant into your production line, providing efficient filtration and purification for various types of consumable and industrial liquids.

Purifies and Filters Water for Bottling

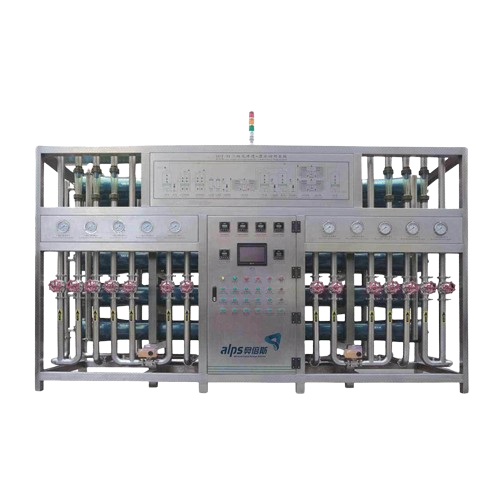

The Automatic Reverse Osmosis Water Treatment Plant, RO-5T from Alps Machinery, offers a robust solution for creating purified water, ideal for beverage manufacturers and water bottling companies. This plant utilizes a high-efficiency semipermeable membrane to remove ions, molecules, and larger particles through a reverse osmosis process, ensuring the production of pure, mineral, and spring water suitable for bottling and packaging. With a throughput capacity ranging from 1 to 10 tons per hour, it seamlessly integrates into continuous operations with PLC controls that optimize processing precision. The plant supports energy-efficient operations, which are achieved through optimized motor control, reducing energy consumption. Manufactured from high-grade materials to ensure corrosion resistance and longevity, this system is compatible with CIP systems, providing efficient and contamination-free maintenance. Meeting stringent industry standards, it is a reliable choice for those seeking consistency in water treatment within the food, beverage, and industrial sectors.

Benefits

  • Ensures consistent purity, enhancing the quality of bottled and packaged water products.
  • Minimizes operational costs through reduced energy consumption via optimized motor control.
  • Seamlessly integrates into existing production lines with its continuous operation capabilities.
  • Simplifies maintenance with CIP compatibility, allowing quick and contamination-free cleaning.
  • Adapts to various water sources, providing flexibility in product offerings for diverse markets.

General


Applications
Mineral water,Pure water,Drinking water,Spring water
End products
Packaged spring water,Bottled mineral water,Purified drinking water,Distilled water containers,Alkaline water bottles
Steps before
Multi Medium Filtration,Initial Water Screening
Steps after
UV Sterilization,Ozone Treatment,Water Bottling,Packing
Input ingredients
raw water,source water,feed water
Output ingredients
pure water,mineral water,drinking water,spring water
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
1ton ~10 ton / hour
Output Capacity
500Liter ~50ton Per hour
Filter technology
Reverse Osmosis
Automation
Automatic

Operating Characteristics


Working Mechanism
Reverse Osmosis
Integrated Steps
Filtration and Sterilization
Automation Level
Automatic
Batch vs. Continuous Operation
Inline Continuous
Cleaning Method
CIP
Capacity Range
1ton ~10 ton/hour
Application Type
Drinking water / Pure water / Mineral Water

Material Compatibility


Biological compatibility
Potable water production
Cleanability
Reverse osmosis system
Corrosive resistance (e.g. acids)
Yes
Density/particle size
Removes ions,molecules,larger particles

Physical Characteristics


Machine footprint
Customized
Tank shape and size
Variable
Feed/discharge method
Automatic
Control panel type
Digital
