Automatic Pet preform injection moulding

Optimize your production with high-speed injection molding capable of shaping diverse plastic materials, from PET preforms to ABS automotive components, ensuring precision and efficiency in every cycle.

Molds PET Preforms and Plastic Products

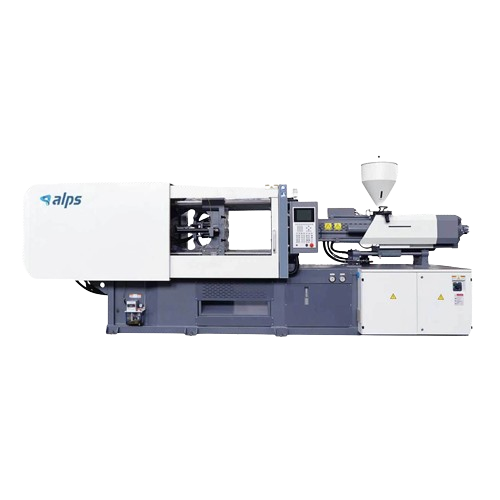

The Automatic PET Preform Injection Moulding Machine (Model: INJ2400A) from Alps Machinery delivers precision and efficiency for industries such as plastics and automotive. With a clamping force range from 100 to 850 tons, it processes PET, HDPE, PP, PS, and ABS products in high-speed, continuous operations. Equipped with a five-point twin toggle clamping system and a balanced double injection cylinder, the INJ2400A ensures stable plastic molding conditions. The machine’s PLC control with imported computer systems offers precise processing, while its energy-efficient design utilizes proportional pressure and flow control to reduce consumption. Ideal for producing PET bottles, HDPE jugs, and more, this equipment integrates seamlessly into existing lines with options for hydraulic adjustments and remote monitoring capabilities. The durable construction allows material versatility, and maintenance is simplified by the close-loop PID temperature control system, ensuring operator safety and consistent output quality.

Benefits

  • Enhances production speed and consistency with automated processes.
  • Minimizes energy costs through efficient hydraulic system controls.
  • Ensures operator safety with dual mechanical and electrical safety systems.
  • Adapts to diverse production needs with versatile material compatibility.
  • Simplifies integration into existing lines with modular design options.

General


Applications
Hdpe products,Abs products,Plastic boxes,Pp products,Pet products,Ps products,Bottle caps,Plastic handles
End products
Storage boxes,Pet bottles,Pp yogurt containers,Ps disposable cutlery,Abs automotive parts,Soda bottle caps,Plastic tool handles,Hdpe milk jugs
Steps before
Material Preparation,Material Melting,Mould Preparation
Steps after
Cooling,Trimming,Assembly,Quality Inspection,Packaging
Input ingredients
PET,HDPE,PP,PS,ABS,plastic resin
Output ingredients
PET preform,bottle cap,plastic handle,plastic box
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Clamping Force
1000KN - 8500KN
Shot Weight
128g - 4350g
Heat Power
7.6KW - 28.1KW
Pump Power
11KW - 74KW
Oil Tank Capacity
180L - 1300L
Dimensional
4.3*1.5*1.6M - 11*2.4*2.8M
Machine Weight
3.4t - 45t
Function
Plastic Injection
Capacity
100–850 tons
Working System
Hydraulic System
Automation
High Efficiency Energy Saving Injection Molding Machine
Control System
Imported Computer with High Precision
Temperature Control
Close-loop PID
Safety Features
Machine Safety,Electrical Safety

Operating Characteristics


Working Mechanism
Hydraulic System
Automation Level
PLC-Controlled
Clamping System
5-Point Twin Toggle Clamping
Injection Control
Proportional Pressure and Flow Control
Temperature Control
Close-loop PID
Safety Features
Machine and Electrical Safety
Changeover Time
Automatic Mold Height Adjustment
Energy Efficiency
High Efficiency Energy Saving
Shock Control
Gentle Shock
Display Type
LCD Display with High Clarity
Injection Cylinder Technology
Balanced Double Injection Cylinder

Product type Characteristics


Material Type
PET,HDPE,PP,PS,ABS
Product Form
Preform,Bottle Cap,Plastic Handle,Plastic Box
Mold Specificity
Standard/Custom

Physical Characteristics


Machine footprint
e.g. 8.6*2.2*2.3 m (depending on the model)
Clamping force range
10–850 ton
Shot weight
128g to 4350g (depending on the model)
Oil tank capacity
180L to 1300L (depending on the model)
Weight
3.4t to 45t (depending on the model)

Custom Options


Control panel type
Imported computer with multiple functions
Integration possibilities
Servo-motor,Variable Pump,PLC control
Safety features
Machine and electrical safety systems
Clamping system
5-point twin toggle
