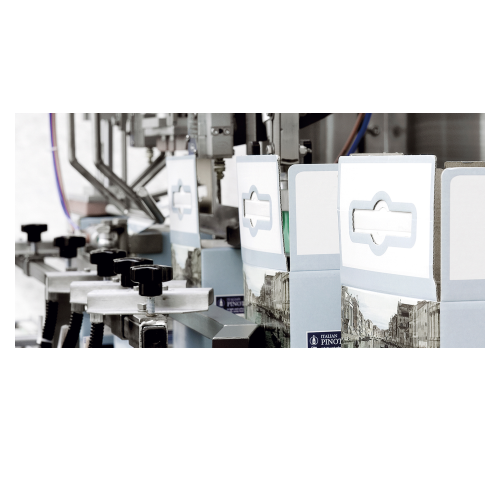

Automatic packaging line for bag-in-box

Streamline your bag-in-box production with a seamless solution that ensures precision and efficiency, integrating case erecting, sealing, and packing processes into one cohesive system.

Automates Packing and Sealing of Bag-in-Box Products

The Bag-in-Box Packaging Automation Line from APE Impianti provides a comprehensive solution for efficient packaging operations in the wine, beer, spirits, and food industries. This automated line, featuring the FORM BIB, CH BIB, and TRIO units, integrates seamlessly into your production line to enhance efficiency and precision. It begins with the FORM BIB case erector, adept at preparing cases for the next stages. The CH BIB case sealer ensures secure package closures, while the TRIO unit’s specialized head efficiently manages bag placement. Capable of processing up to 1,000 units per hour, this system excels in managing high-speed operations with minimal human intervention. Constructed with durable materials to withstand rigorous use, the line is ideal for liquid products in varied packaging environments. Designed for easy integration and optimal energy use, this line supports remote monitoring and requires straightforward maintenance, ensuring continuous operation with reduced downtime.

Benefits

  • Increases productivity by processing up to 1,000 units per hour.
  • Enhances packaging precision, reducing error rates in high-volume environments.
  • Streamlines integration into existing lines, minimizing installation and setup time.
  • Decreases labor costs through automated, user-friendly operation.
  • Lowers operational expenses with energy-efficient components.

General


Applications
Food,Liquid formulations,Wine,Spirits,Beer
End products
Bag-in-box wine,Bag-in-box spirits,Bag-in-box liquid sauces,Bag-in-box beer,Bag-in-box fruit juice
Steps before
Product Preparation,Filling
Steps after
Sealing,Palletising,Distribution
Input ingredients
empty bags,corrugated cardboard,cases,packaging materials
Output ingredients
bag-in-box,sealed cases,packaged boxes
Market info

Technical Specifications


Speed
Up to 1,000 BIB/h
Automation
Automatic packaging line
Human-machine interaction
Precision,efficiency,simplicity
Bag type
Bag-in-Box
Machine Components
Case erector,case sealer,monoblock TRIO

Operating Characteristics


Automation level
Automatic
Packaging type
Bag-in-Box
Integrated steps
Case erecting,sealing,and bag picking
Output capacity
Up to 1,000 BIB/h
Human-machine interaction
Precision,efficiency,simplicity
Changeover time
Rapid setup
System components
FORM BIB,CH BIB,TRIO

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine type
Case erector,Case sealer,Monoblock
Design customization
Specific criteria for product-type
Integration type
Automatic packaging line

Custom Options


Control Panel Type
Touchscreen HMI
Integration Possibilities
PLC/SCADA Integration
Output Capacity
Up to 1,000 BIB/h
Modular Design
Yes
