Automatic netting and clipping system

Streamline your meat processing with a system that automatically nets and clips products, enhancing efficiency, reducing labor, and ensuring quality consistency for items like brisket and ham.

Automates Netting and Clipping Processes

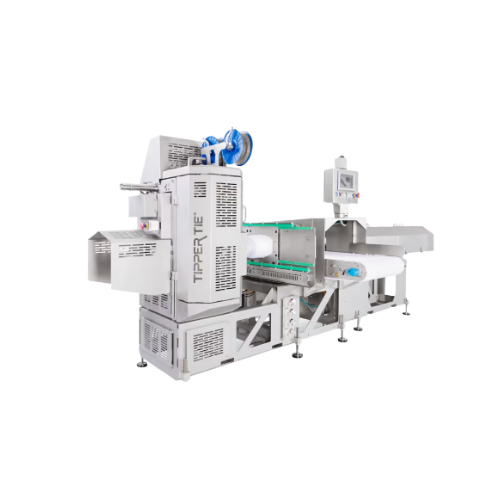

The TIPPER TIE TN2004 from JBT is an automated system designed to streamline your netting and clipping operations for protein products such as bone-in hams and small briskets. Utilizing high-speed electric servo technology, it offers superior control and speed, ensuring reliable production with minimal downtime. This system processes up to 12 pieces per minute, fitting seamlessly into food and meat processing lines. Its electric infeed conveyor allows for smooth operation and energy efficiency, while the unique hygienic frame design facilitates easy cleaning. Available in both right and left orientations, the TN2004 can be customized to fit your layout, ensuring efficient space utilization in your facility. With IP65 protection and low air consumption, it meets industry standards for safety and performance. Built for ease of maintenance, this system is supported by JBT’s PRoCARE® service for ongoing operational assurance.

Benefits

  • Enhances productivity by automating netting and clipping, reducing labor needs.
  • Minimizes material waste with precise control of netting materials.
  • Facilitates easy cleaning with an open hygienic frame design.
  • Adapts to existing layouts with customizable left or right-hand configurations.
  • Reduces maintenance and operation costs with an electric servo system.

General


Applications
Small briskets,Large bone-in hams,Protein products,Formed items,Processed meats
End products
Honey-baked ham,Pre-cooked pulled brisket,Smoked brisket cuts,Pre-formed meatloaf,Ready-to-cook ham roasts,Customized meat forms,Net-wrapped ham rolls,Deli-style ham logs,Spiral-cut ham,Seasoned brisket slices
Steps before
Injection,Marination,Grinding,Mixing,Forming
Steps after
Packaging,Labeling,Tray Sealing,Chilling,Freezing
Input ingredients
large bone-in hams,small briskets,formed items
Output ingredients
netted and clipped hams,netted and clipped briskets,netted and clipped formed items
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Width
5280 mm [208″]
Depth
1750 mm [68.75″]
Height
1925-2025 mm [75.75″-79.75″]
Speed
12 pcs/min (start stop)
Supply Power
400/480 V,30amp
Clip Type
Z321
Chute Length
683 mm (26.875″)
Protection Class
IP65
Air Consumption
15 SCFM at 12 pcs/min

Operating Characteristics


Automation level
Automatic
Changeover time
Quick due to auto chute change
CIP/SIP
Easy cleaning with hygienic frame design
Batch vs. continuous operation
Continuous
Cleaning method
Manual due to the open design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


IP Protection Class
IP65
Hygienic Design Requirements
Yes

Physical Characteristics


Machine Footprint - Width
5280mm [208″]
Machine Footprint - Depth
1750mm [68.75″]
Machine Footprint - Height
1925-2025mm [75.75″-79.75″]
Machine Orientation
Available as Left- or Right-hand
Chute Length
683mm (26.875″)
Discharge Method
Electric Infeed Conveyor

Custom Options


Machine orientation
Left-hand / Right-hand
Conveyor type
Electric Infeed Conveyor
Hygienic frame design
Open design for easy cleaning
Automation type
High speed electric servo
Chute change system
Automatic indexing
