Automatic mineral water filling system

Enhance your bottling line with an advanced solution that seamlessly integrates washing, filling, and capping processes, ensuring precision and efficiency for varying bottle sizes and water types.

Washes, Fills, and Caps Bottled Water

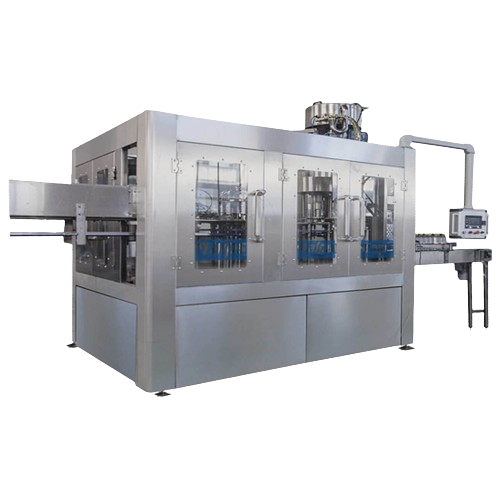

The 2000BPH Mineral Water Filling Machine CGF8-8-3 is engineered by Alps Machinery to streamline water bottling production lines. Combining washing, filling, and capping in a single automated unit, this equipment is ideal for producing bottled still, spring, purified, mineral, and sparkling waters. It uses gravity filling technology for precise, smooth operations, handling 2000 to 3000 bottles per hour with bottle sizes ranging from 250ml to 2000ml. The PLC-controlled system ensures seamless integration into existing production lines, optimizing throughput while maintaining high hygiene standards with stainless steel components. Equipped with aseptic rinsing medium, it minimizes water usage and ensures efficient cleaning, all while adhering to industry requirements for quality and safety. The machine is constructed for durability and reliability, making it a key asset in any high-speed bottling operation.

Benefits

  • Increases production efficiency with integrated washing, filling, and capping processes.
  • Reduces water usage through precise rinsing and filling technologies.
  • Minimizes operational downtime with reliable PLC automation.
  • Ensures product safety with robust stainless steel construction.
  • Flexibly adapts to various bottle sizes for versatile production needs.

General


Applications
Mineral water,Still water,Sparkling water,Pure water,Ro water
End products
Bottled still water,Bottled mineral water,Bottled sparkling water,Bottled spring water,Bottled purified water
Steps before
Water Treatment,Bottle Blowing,Bottle Molding
Steps after
Labeling,Packing,Distribution
Input ingredients
PET bottles,still water,pure water,RO water,mineral water,sparkling water,aseptic water,caps
Output ingredients
filled PET bottles,capped PET bottles
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
2000 ~ 3000 BPH
Automation
PLC-controlled
Bottle Sizes
250ml ~ 2000ml
Filling method
Gravity filling
Filling volume
250 ml – 2 L
Power
4.4 kW
Dimensions
2.3 x 1.9 m
Weight
2500 kg
Bottle Diameter
Dia50 ~ Dia115mm
Bottle Height
150 ~ 320 mm
Compressor Air
0.3 ~ 0.7 Mpa
Washing Medium
Aseptic water
Rinsing Pressure
>0.06Mpa,<0.2Mpa

Operating Characteristics


Automation level
PLC-controlled
Batch vs. continuous operation
Inline Continuous
CIP/SIP
CIP
Cleaning method
CIP

Material Compatibility


Cleanability
304/316 Stainless Steel
Corrosive resistance (e.g. acids)
304/316 Stainless Steel

Physical Characteristics


Compact footprint
2.3X1.9m
Machine height
2.3m
Discharge method
Gravity filling with guide rail support

Custom Options


Control panel type
PLC-controlled
Compact footprint
2.3x1.9 meters
