Automatic mineral water filling system

Optimize your bottling line with a machine designed for high-speed washing, filling, and capping, ensuring precision and efficiency for bottled water products across various volumes.

Washes, Fills, and Caps Bottled Water

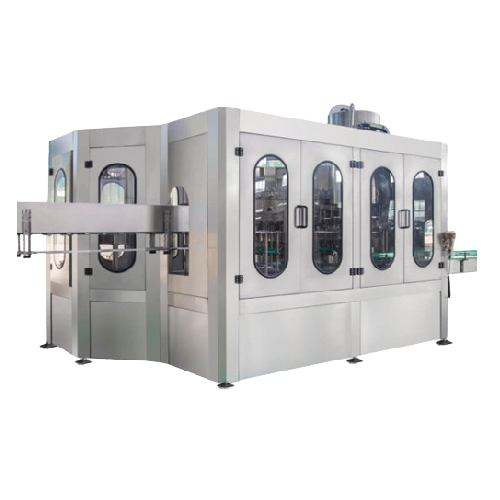

The 15000BPH Mineral Water Filling Machine CGF32-32-10 from Alps Machinery streamlines bottling processes with its seamless integration of washing, filling, and capping operations in one automated unit. Designed for high-speed production lines, it excels in maintaining precision and efficiency across different bottle sizes ranging from 250ml to 2000ml. This machine is particularly suited for producing bottled mineral, spring, purified, and sparkling waters. Utilizing gravity filling and a sophisticated PLC control system, it ensures accurate and stable filling without product spillage. The hygienic design employs SUS304/316 stainless steel materials to prevent contamination and facilitate easy cleaning, supported by a CIP option for swift maintenance. Able to handle up to 15,000 bottles per hour, it offers essential flexibility and reliability for beverage manufacturers and water bottling companies.

Benefits

  • Enhances production efficiency with high-speed bottling capacity up to 15,000 BPH.
  • Minimizes contamination risks using hygienic stainless steel construction.
  • Reduces operational labor demands through full automation and PLC control.
  • Ensures flexibility to accommodate various bottle sizes and types.
  • Simplifies maintenance and cleaning with integrated CIP system.

General


Applications
Still water,Mineral water,Pure water,Sparkling water
End products
Bottled mineral water,Bottled purified water,Bottled sparkling water,Bottled spring water,Bottled filtered water
Steps before
Water Treatment,Bottle Blowing,Bottle Sorting
Steps after
Labeling,Packing,Quality Control
Input ingredients
PET bottles,screw cap,aseptic water,compressed air
Output ingredients
still water,pure water,RO water,mineral water,sparkling water,capped PET bottles
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Automation
PLC-controlled
Filling method
Gravity filling
Capacity
13000-15000 Bottles/hour
Filling speed
12000-15000 BPH
Filling volume
250 ml – 2 L
Total power
7.2 kW
Compressor air
0.3 ~ 0.7 Mpa
Rinsing pressure
>0.06Mpa <0.2Mpa
Overall dimensions
3.4 x 2.8 m
Height
2.6 m
Weight
7500 kg
Suitable bottle shapes
PET Circular or Square
Bottle diameter
Dia50 ~ Dia115 mm
Bottle height
150 ~ 320 mm

Operating Characteristics


Automation level
PLC-controlled
Batch vs. continuous operation
Inline Continuous
CIP/SIP
CIP / Manual
Cleaning method
CIP

Material Compatibility


Cleanability
High
Corrosive resistance (e.g. acids)
304/316 stainless steel
Biological compatibility
Food grade materials
Abrasion resistance
Stainless steel components

Physical Characteristics


Compact footprint
3.4 x 2.8 m
Machine height
2.6 m
Machine weight
7500 kg
Bottle size range
250 ml – 2 L
Bottle diameter
Dia 50 ~ Dia 115 mm
Bottle height range
150 ~ 320 mm

Custom Options


Control Panel Type
Automatic controls
Bottle Size Adjustment
250ml to 2L
Place,Capping System
Electromagnetic capping heads
