Automatic meat ball and fish ball forming solution

Streamline your meat and seafood ball production with a high-speed, automated forming and rounding solution designed to deliver consistency and quality in every batch, ensuring your products stand out in texture and appearance.

Forms and Rounds Meat and Fish Balls

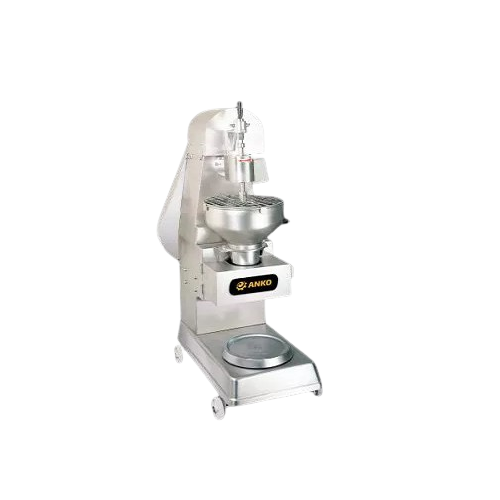

The FMB-60 from ANKO is a robust meatball and fish ball forming machine designed for seamless integration into food processing lines, particularly in the meat and seafood industries. It automates the production of uniform, ball-shaped foods by utilizing a rotary round platform that prevents sticking through a water collection system. Versatile in its applications, it serves markets including frozen foods, ethnic, and halal food production, producing consistent outcomes such as fish balls, pork balls, and vegetarian variations. With a capacity of up to 300 pieces per minute for 20mm diameter products, it ensures high-speed, continuous operations. Its stainless steel construction offers durability and hygiene, aligning with industry standards for ease of cleaning and maintenance. Additionally, the FMB-60 can integrate with upstream filling machinery for optimized line efficiency.

Benefits

  • Enhances production efficiency by forming up to 300 pieces per minute.
  • Reduces labor costs with automated, high-speed operation.
  • Maintains product integrity with a non-stick water collection system.
  • Provides versatility in producing diverse food types, including vegetarian and halal options.
  • Facilitates easy integration within existing food processing lines for streamlined operations.

General


Applications
Meat products,Snacks,Ethnic foods,Seafood products,Halal foods,Frozen foods,Vegetarian foods
End products
Fish balls,Meatballs,Pork balls,Al dente fish balls,Vegetarian dumplings,Halal meatballs,Pulpety (polish meatballs),Spanish meatballs,Frozen fish balls
Steps before
Loading fish paste,Loading meat paste,Separating meat,Removing fish bones,Slicing meat,Mincing meat,Stirring with sauces
Steps after
Boiling,Cooling,Packaging
Input ingredients
meat paste,fish paste,fresh beef,fresh pork,frozen beef,frozen pork,frozen fish meat
Output ingredients
fish balls,meatballs,pork balls,pulpety,Spanish meat balls
Market info

Technical Specifications


Dimensions
500 (L) x 800 (W) x 1,400 (H) mm
Power
0.75 kW
Capacity
300 pcs/min at 20 mm dia.
Capacity
200 pcs/min at 25 mm dia.
Capacity
100 pcs/min at 35 mm dia.
Product Diameter
18–35mm (unadjustable)
Weight (Net)
150 kg
Weight (Gross)
250 kg
Extruding Nozzles
3 standard sizes

Operating Characteristics


Automation level
Automatic
Batch vs. continuous operation
Continuous
Cleaning method
Manual / Water collection
Changeover time
Quick setup
Energy efficiency
0.75 kW power usage

Material Compatibility


Biological compatibility
Fish paste/Meat paste
Cleanability
Easy to clean surfaces,prevents sticking
Corrosive resistance (e.g. acids)
Compatible with food-grade acidity
Density/particle size
Fish/Meat paste density suitable for forming balls

Product type Characteristics


Ball shape compatibility
Fish ball,meatball,pork ball

Physical Characteristics


Feed method
Hopper loading
Discharge method
Rotary round platform with water bowl

Custom Options


Control panel type
Touchscreen / Button Interface
Hopper size
Customizable upon request
Die nozzle sizes
Customizable / Multiple sizes available
Rotary platform configuration
Optional customization
Water collection setup
Customizable for different capacities
Material options
Stainless steel grades
Integration possibilities
Integration with existing production lines
