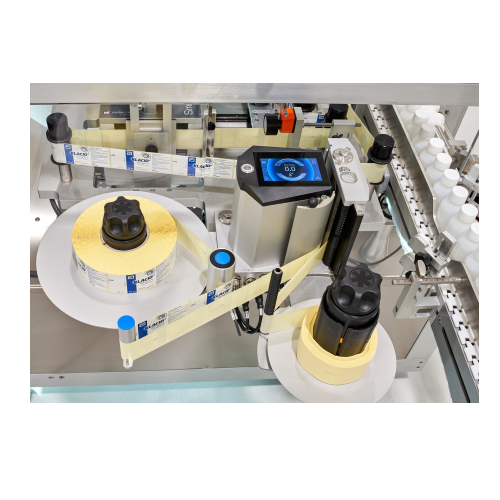

Automatic labelling system for pharmaceutical vials and bottles

Optimize your bottle labelling process with precision alignment and high-speed throughput, ensuring accurate label application and seamless integration into your production line.

Labels, Inspects, and Rejects Bottles and Jars

The ETFR-150/200 from Siempharma is a high-speed rotary labeling machine engineered to enhance packaging efficiency for pharmaceutical, nutraceutical, and cosmetic industries. It specializes in accurately labeling cylindrical and square containers, such as syrup bottles, vitamin supplement jars, and essential oil vials. This machine utilizes a servo motor design for minimal mechanical transmission, ensuring seamless operation and reducing maintenance demands. Its rotary system integrates a central carousel with brushless motor-driven plates, enabling precise orientation and labeling, even with varying container sizes.

The ETFR-150/200 supports a comprehensive range of labeling processes, including label peeling, orientation, and inspection. It features automatic rejection systems for mislabeled items, ensuring product integrity and quality control. The user-friendly HMI touch screen facilitates fast configuration and reduces downtime for size changeovers. With compliance to CFR21 Part 11, EU Annex 11, and Industry 4.0 standards, this machine ensures integration with modern production lines. Additionally, its stainless-steel construction promotes durability and ease of cleaning, essential for maintaining hygiene standards. The ETFR-150/200 is an optimal choice for manufacturers seeking efficient, reliable, and compliant labeling solutions.

Benefits

  • Enhances production efficiency with high-speed labeling capabilities, accommodating up to 200 containers per minute.
  • Minimizes operational downtime with quick, tool-free changeovers and intuitive HMI controls.
  • Ensures product quality and compliance by rejecting incorrectly labeled products automatically.
  • Promotes sustainable operations by integrating energy-efficient servo motor technology.
  • Maintains high hygiene standards with easy-to-clean stainless-steel construction.

General


Applications
Nutraceuticals,Liquid formulations,Cosmetics,Pharmaceuticals
End products
Liquid soap bottles,Oral suspension bottles,Vitamin supplement bottles,Essential oil vials,Syrup bottles,Herbal extract bottles,Shampoo bottles,Dietary supplement jars,Facial cream jars
Steps before
Bottle cleaning,Bottle filling,Cap sealing
Steps after
Quality control,Packing,Distribution
Input ingredients
cylindrical vials,square bottles,pharmaceutical bottles,jars,booklet
Output ingredients
labelled round bottles,labelled square bottles,labelled vials,rejected bottles
Market info

Technical Specifications


Automation
PLC-controlled
Container type
Round / Square Bottles and Jars
Label Application
3 sides of square containers
Machine Compliance
Industry 4.0 standard
Manufacturing Standards
GMPs standards
Servo Motor Design
Integral
Conveyor Belt Type
Tunnel protections
Reel Control
Reel end,backing paper breakage
Vision System
Optional for OCR-OCV and barcode checks
Printing Technologies
Thermal Transfer,Thermal Ink Jet,Laser
Rejection System
Automatic rejection of bottles without labels
Label Checking
UV reading sensors

Operating Characteristics


Working Mechanism
Rotary self-adhesive labelling
Integrated Steps
Automatic labelling,Control of successful labelling,Ejection of unsuitable products
Changeover Time
User-friendly size changeover
Automation Level
Touch Screen HMI,PLC
Compliance with Standards
CFR21 part 11 / EU Annex 11,Industry 4.0
CIP/SIP
GMP standards compliance
Cleaning Method
User-friendly maintenance

Product type Characteristics


Container type
Vials / Jars

Physical Characteristics


Machine chassis material
Aluminum with AISI 304 stainless-steel panels
Safety guards
Aluminum frame and Lexan doors
Footprint
Compact design
Control panel type
Touch screen interface
Capacity for containers
Round and square bottles/jars
Infeed system
Conveyor belt with spacing endless screw
Carousel system
6/8 rotating plates with brushless motor
Label application system
Wrap around rubber belt
Label detection system
UV reading sensors
Rejection system
Stainless-steel bin for rejected bottles
Label peeling adjustment
Micrometric adjustment

Custom Options


Control panel type
Touch Screen HMI
Integration possibilities
Industry 4.0 standard
Modular configuration
Label application on 3 sides
Servo motor usage
Integral servo motor design
Flexibility in bottle dimensions
User-friendly size changeover
