Automatic dispenser for radiopharmaceutical syringes

Streamline your radiopharmaceutical syringe preparation with precise filling, accurate calibration, and secure dispensing, all while minimizing operator exposure to radiation. Ideal for environments demanding seamless integration and high throughput in dose management.

Dispenses and Calibrates Radiopharmaceutical Syringes

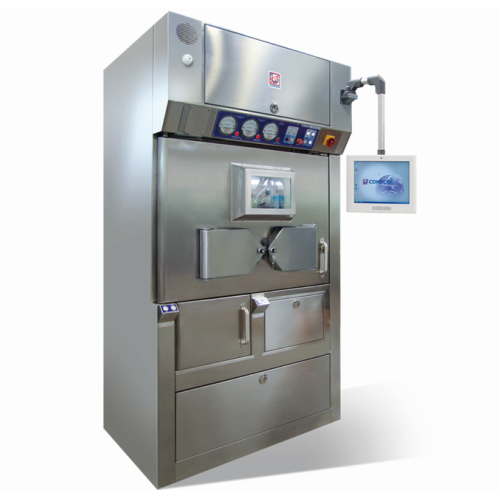

The ALTHEA PC from Comecer is a modular system designed to automate the filling and calibration of radiopharmaceutical syringes, primarily for use in hospital pharmacies and nuclear medicine departments. What sets this system apart is its ability to significantly reduce radiation exposure for operators while ensuring precise dose calibration. The ALTHEA PC seamlessly integrates downstream in your existing production line, directly connecting to synthesis modules or drawing from mother vials in shielded containers. It features a touch screen interface for both the hot cell and dispensing system, and automatic pressure adjustments for optimal operation. Applications include the preparation of FDG doses and customized calibrated syringes using physiological solutions when necessary. With its built-in dose calibrator available in 2 Ci or 20 Ci versions, the system supports continuous operation, contributing to efficient workflow in radiopharmaceutical processing. The equipment complies with GMP standards and offers configurations for both 5 ml and 10 ml syringes with mechanical adjustments. Enhanced by airtight radioactive fluid connections and DOP test features, it ensures contamination-free operations and aligns with safety regulations.

Benefits

  • Minimizes operator radiation exposure through automated syringe handling.
  • Enhances dose accuracy with integrated calibration functionality.
  • Streamlines workflow with touch screen-controlled system operations.
  • Facilitates compliance with GMP standards in pharmaceutical applications.
  • Ensures flexible production with modular configuration options.

General


Applications
Nuclear medicine,Radiopharmaceuticals,Pharmaceuticals
End products
Radiopharmaceutical syringes,Calibrated syringe doses with physiological solution,Fdg (fluorodeoxyglucose) doses,Shielded transport containers with radiopharmaceuticals
Steps before
Radiopharmaceutical synthesis,Dose preparation,Material entry through air-lock
Steps after
Documentation and label printing,Syringe calibration,Sealing and shielding,Transport container placement
Input ingredients
radiopharmaceuticals,FDG,mother vial,shielded container,physiological solution
Output ingredients
calibrated syringe,adequate volume,selected activity,pierceable plug,shielded transport container
Market info
Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.

Technical Specifications


Modular Design
Yes
Automation
Automatic
Touch Screen Console
Included
Airtight Connections
For Radioactive Fluids
Dose Calibrator
2 Ci or 20 Ci
Peristaltic Pump
Dispensing
Material Air Lock Entry
Included
Product Extraction System
Drawing System
Internal Pressure Adjustment
Automatic
Particle Counter Connection
Available

Operating Characteristics


Automation level
Manual / PLC / Touch Screen Console
Batch vs. continuous operation
Batch / Flexible Configuration
Cleaning method
Airtight connections / DOP test connections
Internal pressure adjustment
Automatic by modulating valves

Material Compatibility


Corrosive resistance
Acid resistant
Cleanability
Easy to clean
Biological compatibility
Biocompatible with radiopharmaceuticals
Abrasion resistance
High abrasion resistance
Density/particle size
500-2500 kg/m³ / 0.5–2 µm

Physical Characteristics


Control Panel Type
Touch screen

Custom Options


Control panel type
Touch screen
Syringe size compatibility
5 ml,10 ml
Modular design
Flexible configuration
Integration with synthesis modules
Internal production
Integration with external production
Mother vial in shielded container
Activity calibration
Integrated dose calibrator
