Automatic cartoning solution for 3-20l aseptic bags

Streamline your aseptic packaging with an integrated cartoning solution, designed to efficiently handle bag sizes from 3 to 20 liters. Boost production speed and maintain product integrity with a compact machine that automates carton forming, packing, and sealing processes.

Forms, Packs, and Seals Cartons for Liquids

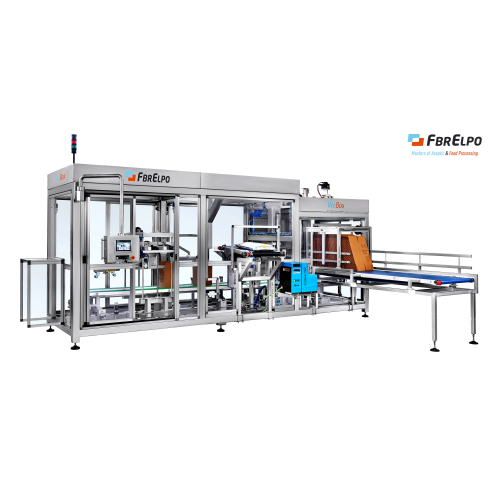

The WE BOX Cartoning Machine by FBR ELPO is designed to enhance aseptic packaging processes by seamlessly forming, packing, and sealing cartons for liquids such as tomato paste, fruit purees, and ready-to-drink juices. This compact machine features a robotic carton forming unit that allows rapid format changes for varying carton sizes (3-20 liters), supporting continuous, high-speed operations at up to 1,000 cartons per hour. Integrated with FBR ELPO’s Bag in Box series, it simplifies the downstream packaging workflow. You can choose between tape, glue, or both for carton closing, with the flexibility to adjust the empty carton warehouse capacity. Housed within a stainless steel monoblock, the WE BOX is designed for easy maintenance, and its compact dimensions help in space-constrained environments. With an installed power of 25 kW and air consumption of 3 Nm³/h at 8 bar, it offers efficient performance for food and beverage manufacturers looking to optimize their packaging lines.

Benefits

  • Enhances productivity with seamless carton integration and high-speed operation.
  • Reduces overall production costs with flexible carton sealing options.
  • Minimizes maintenance requirements and downtime due to its compact stainless steel monoblock design.
  • Adapts to various packaging needs with rapid format changes facilitated by a robotic system.
  • Optimizes space usage and workflow with an adjustable and versatile empty carton warehouse configuration.

General


Applications
Liquid formulations,Tomato processing,Bag in box packaging,Fruit processing,Aseptic packaging
End products
Smoothies,Ready-to-drink juices,Liquid hand soaps,Liquid seasonings,Liquid detergents,Concentrated beverage mixes,Bagged water,Bulk wine,Non-dairy milk alternatives,Juice concentrates,Liquid nutritional supplements,Sauces and condiments,Tomato paste,Liquid cleaning agents,Diced tomatoes,Liquid flavorings,Fruit puree
Steps before
Aseptic Bag Filling
Steps after
Palletization
Input ingredients
3 l bags,5 l bags,10 l bags,20 l bags,aseptic Bag in Box filler
Output ingredients
cartons filled with 3 l bags,cartons filled with 5 l bags,cartons filled with 10 l bags,cartons filled with 20 l bags
Market info
FBR ELPO is known for its expertise in manufacturing industrial equipment, specializing in engineered-to-order solutions for food and beverage processing, particularly in thermal processing and aseptic technology, and holds a strong reputation for innovation and reliability in the market.

Technical Specifications


Operating Speed
Up to 1,000 cartons per hour
Height
3,000 mm
Width
2,000 mm
Length
5,000 mm
Installed Power
25 kW
Air Consumption
3 Nm³/h at 8 bar
Bag Capacity
3-5-10-20 L
Automation
Electronics run each phase
Closing Options
Tape,glue,or both
Material
Stainless Steel

Operating Characteristics


Working mechanism
Single unit with carton forming,packing,and closing
Automation level
Electronic control for each phase
Changeover time
Quick format change
Batch vs. continuous operation
Inline Continuous
Cleaning method
Easy maintenance

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel
Cleanability
Stainless steel
Biological compatibility
Food grade

Product type Characteristics


Bag size
3–20 L
Container size and shape
Cartons
Bag type
Aseptic Bag in Box
Packaging type
Cartoning
Filling purpose
Aseptic packaging
Carton closure type
Tape / Glue
Carton loading method
Robotic system

Physical Characteristics


Machine footprint
5000 mm x 2000 mm
Machine height
3000 mm
Material
Stainless steel
Compact footprint
Yes
Carton size capacity
3-5-10-20 L bags
Carton forming unit
Included
Carton closing options
Tape/Glue/Both
Warehouse adjustment
Three sides placement
Structure Type
Monoblock

Custom Options


Carton closure method
Tape / Glue / Both
Warehouse placement
3 of 4 sides adjustable
Format change speed
Fast via robotic system
