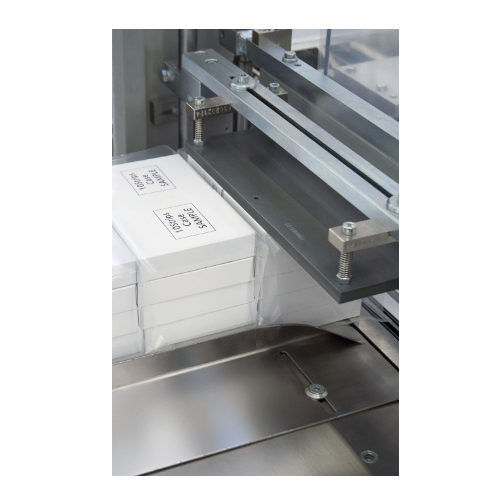

Automatic bundling machine for cartons and bottles

Streamline your packaging line with a compact system that efficiently collates, bundles, and secures cartons, bottles, and trays, reducing changeover times and ensuring consistent package integrity.

Bundles and Wraps Diverse Packaging Types

The FA-38 VESTA by Siempharma is a compact automatic bundling and wrapping machine designed for high-speed operations in the pharmaceutical, nutraceutical, and cosmetic industries. It efficiently collates and wraps cartons, bottles, and trays, using a single reel of stretch or shrink film to minimize changeover times and maintain consistent tension through its electromechanical stretching system. The machine’s design ensures uniform sealing, enhancing package appearance and integrity via a precise sealing bar. With in-line infeed, products are pneumatically collated and mechanically moved through the wrapping area, while ergonomic components facilitate easy cleaning and size changes. Equipped with a user-friendly touch screen HMI and compliant with Industry 4.0 standards, the FA-38 VESTA offers seamless integration into existing production lines, adhering to GMP and CE regulations. The machine also permits customization with various collation systems to accommodate special products like blisters, ensuring versatility in packaging solutions.

Benefits

  • Enhances productivity with high-speed continuous bundling operations.
  • Minimizes material waste through efficient film usage and precise tension control.
  • Reduces setup time with quick-change size parts and user-friendly controls.
  • Ensures packaging integrity with consistent sealing and advanced collation methods.
  • Compliant with Industry 4.0, supporting seamless integration into modern production environments.

General


Applications
Nutraceuticals,Cartons,Blisters,Cosmetics,Trays,Bottles,Pharmaceuticals
End products
Vitamin supplement bottles,Vitamin blister packs,Cosmetic cream jars,Medication cartons,Dietary supplements,Prescription drug boxes,Blister packs for tablets,Skincare product trays
Steps before
Carton Feeding,Product Collation,Layer Stacking
Steps after
Film Wrapping,Sealing,Shrink Wrapping
Input ingredients
cartons,bottles,trays,blisters,various products,wrapping material,stretchable film,shrinkable films
Output ingredients
bundled products,collated products,sealed bundles,shrink-wrapped packages
Market info

Technical Specifications


Wrapping Material Reels
Single reel usage
Band Tension
Constant,independent of reel diameter
Sealing Position
Single,accurately repeated
Sealing Method
Sealing bar with film brake unit
Film Type
Stretchable or shrinkable
Film Wrapping and Stretching
Electromechanical stretching system
Infeed Version
In-line
Collation Systems
Various,depending on packing required
Product Types Handled
Cartons,bottles,trays,blisters,etc.
Main Drive Unit
Brushless motor
Changeover Times
Reduced due to design
Control Interface
Touch Screen HMI
Machine Standards
GMPs,CE rules,INDUSTRY 4.0

Operating Characteristics


Working Mechanism
Automatic bundling
Integrated Steps
Collation,wrapping,sealing
Changeover Time
Reduced due to single reel usage
Automation Level
PLC-controlled
Batch vs. Continuous Operation
Batch with inline continuous features
Cleaning Method
Easy clean design
Energy Efficiency
Industry 4.0 compliant

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size
Various
Product arrangement
Cartons,bottles,trays
Film type
Stretchable / Shrinkable
Packing requirements
Bundling
Special product handling
Blisters

Physical Characteristics


Machine footprint
Compact
Structure material
Aluminium
Frame design
Strong structure with safety guards
Machine access
Transparent doors with safety interlock switches
Size changeover
Easy change size parts
Film reel holder location
Ergonomic height
Conveyor system
In-line infeed version

Custom Options


Control panel type
User-friendly Touch Screen HMI
Safety features
Safety interlock switches
Size changeover
Easy change size parts
