Automatic beverage bottle shrink packaging solution

Optimize your beverage packaging process with advanced shrink wrapping technology, perfect for securing multipacks efficiently and reducing material waste while maintaining product integrity.

Shrink-Wraps Bottles and Cans Efficiently

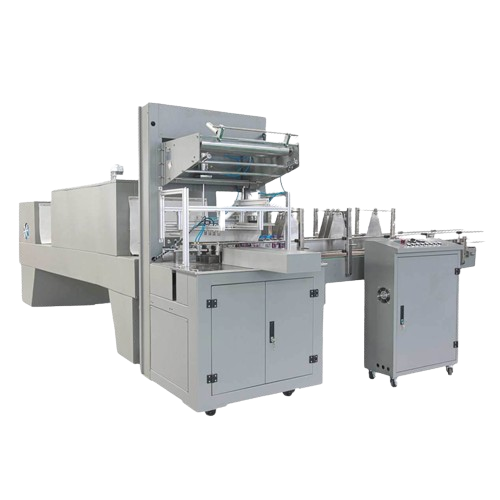

The FPK150 from Alps Machinery is a high-speed shrink packing solution, specially engineered for beverage and packaging industries. It uses a robust combination of seven actuating motors to precisely wrap PE film around bottles or cans, forming stable, tray-less packages. With a maximum capacity of 12 bags per minute, this machine supports various product sizes and types, from bottled mineral water to canned drinks. The FPK150 integrates seamlessly into production lines, operated via a PLC system for fully automatic functionality. Its design prioritizes long-term reliability and efficient operation, utilizing imported components for enhanced durability. Available with options for different film types and thicknesses, this machine can be tailored to meet specific production requirements, making it an invaluable asset for businesses aiming to enhance their packaging efficiency.

Benefits

  • Enhances packaging efficiency by wrapping multiple bottles or cans swiftly and securely.
  • Minimizes operational costs with reliable, uninterrupted performance due to high-quality imported components.
  • Increases production adaptability by accommodating a range of bottle sizes and packaging materials.
  • Simplifies integration into existing lines with its fully automated, PLC-controlled functionality.
  • Optimizes space usage with compact, tray-less packaging solutions.

General


Applications
Beverages,Mineral water,Canned drinks,Juices,Soft drinks,Edible oil,Beer
End products
Bottled mineral water,Bottled fruit juices,Pet bottled carbonated soft drinks,Packaged edible oils,Canned beer,Canned carbonated beverages
Steps before
Bottle Sorting,Cleaning,Filling
Steps after
Labeling,Storage,Transportation
Input ingredients
PET bottle,Glass bottle,Pop can,Jar,Plastic cup,Bottle cap,PE film,POF film
Output ingredients
Shrink-wrapped beverage bottles,Shrink-wrapped water bottles,Shrink-wrapped PET cans,Shrink-wrapped pop cans,Shrink-wrapped plastic cups
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Max Capacity
8~12 bags/min
Bottle Size
100ml ~2L
Bottle Diameter
28~125mm
Max Packing Size
600*400*350mm
Mini Packing Size
210×140×100mm
Material of Shrink Film
PE film
Thickness of Shrink Film
0.06-0.15mm
Width of Shrink Film
<600mm
Equipment Power
20kw
Overall Dimensions
5050*3300*2100mm
Weight
1500kg

Operating Characteristics


Automation level
Automatic
Batch vs. continuous operation
Batch
Cleaning method
Manual

Material Compatibility


Material of shrink film
PE film
Thickness of shrink film
0.06-0.15mm
Package Material
PE film / POF film
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
PET bottle / Glass bottle / Pop can / Jar
Bottle Sizes
100ml ~2L
Suitable for
Beverage Bottle / Water Bottle / PET can / Pop can / Plastic cup / Bottle cap

Physical Characteristics


Machine footprint
L5050 x W3300 x H2100 mm
Max packing size
L600 x W400 x H350 mm
Mini packing size
L210 x W140 x H100 mm
Weight
1500 kg
Max Capacity
8-12 bags/minute
Material of shrink film
PE film
Thickness of shrink film
0.06-0.15 mm
Width of shrink film
<600 mm
Power
20 kW

Custom Options


Control panel type
Advanced HMI
Integration possibilities
Compatible with existing PE film shrink tunnels
Motor type
7 actuating motors
Film type compatibility
PE film / POF film
Machine dimensions customization
L5050*W3300*H2100mm
Shrink film thickness range
0.06-0.15mm
