Automatic batter breading system for deep-fried foods

Effortlessly achieve even coating of various foods with waterfall-type batter breading technology, ensuring high-quality deep-fried products.

Coats and Breads Deep-Fried Food Products

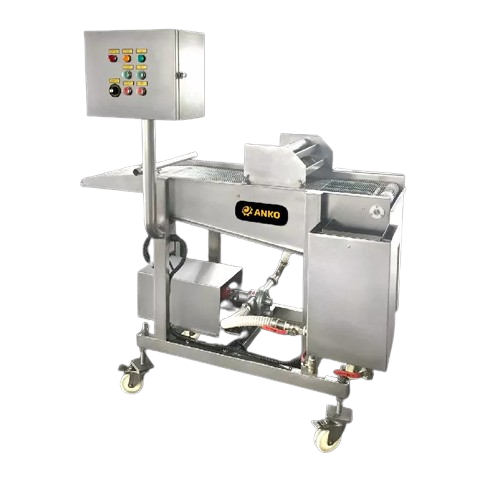

The WBB-400 from ANKO Food Machine is a versatile Waterfall Type Batter Breading Machine designed to optimize the coating process for a variety of deep-fried foods such as chicken nuggets, tempura prawns, and gluten-free chicken tenders. It features a waterfall-type system that efficiently coats food items in both thin and thick batters, ensuring uniform coverage. This machine is ideal for food manufacturers, commercial kitchens, and ethnic food producers focused on high-volume and consistent output.

The WBB-400 operates with an automatic, continuous process, supported by a batter recycling system that minimizes waste and sediment buildup. With dimensions of 1,340 mm (L) x 850 mm (W) x 1,500 mm (H) and a power requirement of 1.2 kW, the machine achieves a capacity of up to 280 kg per hour, making it suitable for high-speed production environments.

Constructed from stainless steel for durability and corrosion resistance, the WBB-400 integrates seamlessly into existing production lines, especially in processing and pre-processing departments. The machine is easy to disassemble, facilitating quick and thorough cleaning, and supports seamless integration with deep-fry preparation and crumb coating equipment.

ANKO ensures engineering support and customization options to meet specific production requirements, allowing optimal flexibility in handling various product sizes and recipes.

Benefits

  • Ensures uniform batter coverage, enhancing product quality and reducing rework.
  • Minimizes ingredient waste with an integrated batter recycling system.
  • Reduces labor costs through fully automatic, continuous operation.
  • Supports high-capacity production, handling up to 280 kg per hour.
  • Facilitates easy cleaning and maintenance, improving operational efficiency.

General


Applications
Meat products,Halal,Snacks,Confectionery,Vegetarian,Seafood products,Frozen foods,Gluten-free
End products
Chicken nuggets,Battered onion rings,Breaded fish fillets,Gluten-free chicken tenders,Samosa pastries,Vegetarian tempura,Crumb-coated shrimp,Tempura prawns
Steps before
Mixing,Marinating,Cutting
Steps after
Deep Frying,Cooking,Packaging
Input ingredients
batter,bread crumbs,chicken,fish,pork
Output ingredients
battered food,breaded food,deep-fried chicken,deep-fried fish,deep-fried pork,tempura
Market info

Technical Specifications


Dimensions
1,340 (L) x 850 (W) x 1,500 (H) mm
Power
1.2 kW
Capacity
280 kg/hr
Available working width of conveyor net
400 mm
Available size of product
length and width > 15 mm,height < 35 mm
Weight (net)
130 kg
Weight (gross)
160 kg
Material
Stainless steel
Batter recycling system
Prevents food waste and sedimentation
Automation
Automatic

Operating Characteristics


Working mechanism
Waterfall type coating
Automation level
Automatic
Batch vs. continuous operation
Continuous
Cleaning method
Easy to disassemble for cleaning
Batter recycling system
Prevents food waste and sediments
Energy efficiency
1.2 kW

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless Steel
Cleanability
Easy to disassemble for cleaning residue
Abrasion resistance
Stainless Steel Construction

Physical Characteristics


Machine Footprint
1,340 (L) x 850 (W) x 1,500 (H) mm
Conveyor Width
400 mm
Product Size Compatibility
Length and width > 15 mm,height < 35 mm
Material
Stainless Steel
Net Weight
130 kg
Gross Weight
160 kg

Custom Options


Material
Stainless steel
Disassembly for Cleaning
Easy to disassemble
