Automated liquid handler for hydrogenation reactions
Enhance reaction efficiency and precision in laboratory settings with an advanced liquid handling solution designed to automate sampling and reaction optimization, crucial for producing high-purity compounds and substances.
Automates Liquid Sampling and Handling

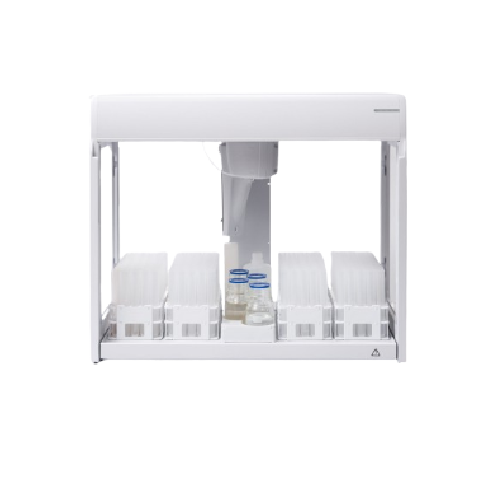

The Brooks AIM4000 Autosampler, designed specifically for ThalesNano’s H-Cube® Pro, revolutionizes lab automation with its precise liquid sampling and handling capabilities. Integrating seamlessly with hydrogenation flow reactors, it facilitates the development of active pharmaceutical ingredients and custom chemical compounds. Its moving probe arm minimizes sample contamination while ensuring accurate sampling, which is crucial for achieving desired reaction outcomes.
Engineered for the pharmaceutical and chemical industries, this autosampler excels in small-scale and high-speed applications. It offers flexibility with customizable probe speeds and travel limits, adapting to varied laboratory needs. Compact and portable, the AIM4000 is chemically resistant and easy to maintain, supporting rigorous lab environments.
The AIM4000 enhances process automation, allowing efficient reaction sequences via an intuitive interface. As a result, you can focus on optimizing reaction conditions and accelerating research outcomes, with the reassurance of consistent performance and seamless operation.
Benefits
- Enhances lab efficiency through precise and automated liquid handling, reducing manual intervention.
- Minimizes sample contamination with a carefully engineered probe mechanism, ensuring data integrity.
- Adapts to varying lab requirements with customizable settings, offering flexibility in operations.
- Resilient to harsh chemicals, extending equipment lifespan and reducing maintenance costs.
- Compact design maximizes lab space without compromising on performance capabilities.
- Applications
- Chemical reactions,Laboratory automation,Fine chemicals,Pharmaceuticals
- End products
- Active pharmaceutical ingredients (apis),Automated sample preparations,Hydrogenated active substances,Custom chemical compounds
- Steps before
- Sample preparation,Vial loading,Solution mixing
- Steps after
- Reaction observation,Data analysis,Sample collection
- Input ingredients
- liquid samples,standards,chemical solvents,acids
- Output ingredients
- optimized reactions,hydrogenation products,chemical reaction solutions
- Market info
- Thalesnano is known for manufacturing advanced flow chemistry solutions, particularly in catalyst and hydrogenation technologies. They are recognized for their expertise in continuous processes, enhancing safety and efficiency in chemical synthesis.
- Footprint
- 600 mm x 317 mm (23.6” x 12.5”)
- Height
- 510 mm (20.1”)
- Weight
- approx. 15 kg / 33.1 Ibs
- Sample Racks
- Various options to accommodate specific needs
- Maximum Vial Height
- 150 mm
- Power Input
- 100 - 240 V,47 - 63 Hz,1.5 A
- Automation level
- Integrated with H-Cube Pro
- Batch vs. continuous operation
- Batch
- Changeover time
- Minimal due to seamless integration
- Cleaning method
- Manual
- Energy efficiency
- Compact footprint for efficiency
- Corrosive resistance (e.g. acids)
- High chemical resistance to acids and organic solvents
- Compact footprint
- Optimized for space efficiency
- Portability
- Easy to transport
- Control panel type
- User-friendly interface
- Integration capabilities
- Seamless integration with H-Cube Pro
- Customization of probe movements
- Adjustable probe speed,depth,travel limits
- Portability
- Easily transportable within lab
- Programming flexibility
- Highly flexible programming capabilities
