Automated dough divider for high accuracy dough handling

Ensure precision in dough portioning with this solution, designed to enhance consistency in bakery operations while accommodating varying dough characteristics.

Divides and Portions Dough Efficiently

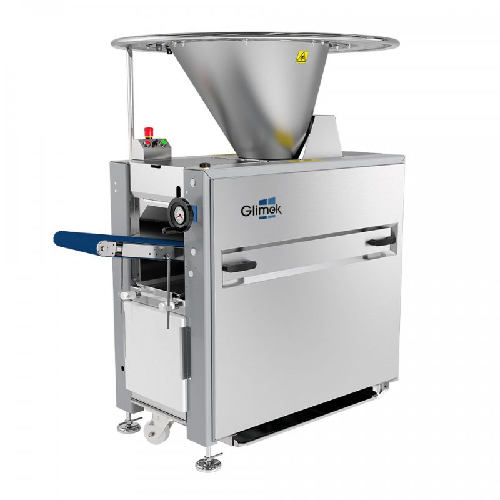

The Glimek SD180 from Sveba Dahlen is a versatile suction-fed dough divider designed for both small and industrial bakery operations. Its volumetric technique ensures precise weight accuracy by pulling dough into a hopper and cutting it at the correct volume, accommodating various fermentation times. The SD180 efficiently processes up to 1800 dough pieces per hour, supporting products such as baguettes, croissants, ciabatta, and a range of artisan breads. Its silent operation, rated at 72 dB(A), and advanced safety features, like the auto stop safety edge, provide a user-friendly and secure environment.

This automatic dough divider integrates seamlessly into production lines, offering flexible weight ranges from 35 to 2300 grams, facilitated by standard and optional mini pistons. The SD180’s energy-efficient operation is driven by a frequency converter for variable speed control. Construction materials include stainless steel for enhanced durability, with options for a non-stick coated hopper for easier cleaning. Maintenance is simplified with removable covers and a unique emptying function that ensures no dough remains in the hopper. Customization options include hopper sizes, speed variations, and additional features like a touch screen control panel and outfeed conveyor oiling.

Benefits

  • Ensures precise dough consistency, enhancing final product quality across a wide range of bakery items.
  • Increases production efficiency with capacity up to 1800 pieces per hour, reducing operational time.
  • Enhances safety with auto stop features, protecting operators and maintaining a secure work environment.
  • Lowers noise pollution in the workplace with silent operation at 72 dB(A).
  • Simplifies cleaning and maintenance with removable stainless steel components, minimizing downtime.

General


Applications
Bread,Sensitive dough,Pastries,Bakery products,Artisan bread
End products
Baguettes,Whole wheat rolls,Rye bread,Puff pastries,Rustic breads,Croissants,Sourdough loaves,Ciabatta,Brioche,Focaccia
Steps before
Dough Mixing,Fermentation
Steps after
Proofing,Baking,Cooling,Packaging
Input ingredients
dough,fermented dough,raw dough
Output ingredients
divided dough,dough pieces,dough buns,artisan bread,sensitive bread,perfectly divided dough
Market info
Sveba Dahlen (Middleby) is renowned for its expertise in designing and manufacturing high-quality, innovative baking and food preparation equipment, including ovens and mixers, for commercial and industrial kitchens.

Technical Specifications


Capacity
750–1800 pieces/hour
Weight Range
35–2300 g
Power Supply
1.1 kW
Fuse (amp)
16A
Hopper Size
90L or 225L
Noise Level
72 dB(A)
Cleaning Method
Easy to clean,removable stainless steel covers
Safety Features
Auto stop safety edge function on hopper
Automation
Automatic suction-fed
Dosing Type
Volumetric
Flexibility with Dough Type
Compatible with various dough types
Material
Stainless Steel
Weight Accuracy
High accuracy

Operating Characteristics


Automation level
Automatic suction-fed
Cleaning method
Easy to clean,manual
Batch vs. continuous operation
Continuous
Energy efficiency
Low energy consumption
Safety features
Auto stop safety edge
Noise level
Extremely silent 72 dB(A)

Material Compatibility


Abrasion resistance
Yes/No
Biological compatibility
Food-grade
Cleanability
Easy to Clean/Removable covers
Corrosive resistance (e.g. acids)
Stainless Steel
Density/particle size
Variable depending on dough

Product type Characteristics


Dough Type Compatibility
All types of dough

Physical Characteristics


Control panel type
Touch screen

Custom Options


Control panel type
Touch screen control panel
Hopper size
90L or 225L stainless steel
Non-stick coating option
Available for hoppers
Variable speed
Frequency converter
Height extension
100 mm,stainless steel
Oiling options
Hopper and belt
