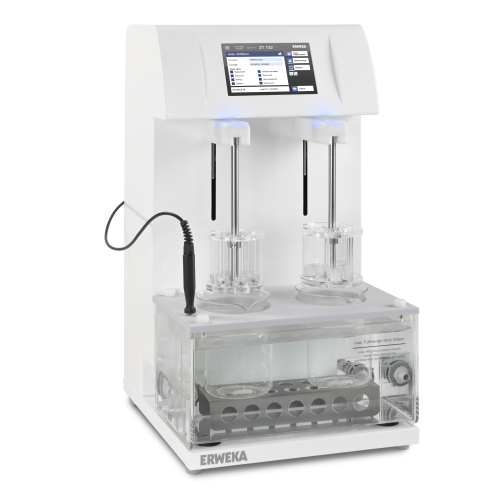

Automated disintegration tester for tablets

Efficiently determine tablet disintegration times with advanced waterbath technology and intuitive touch control, ensuring precise quality control in pharmaceutical testing.

Automates Tablet Disintegration Testing

The ZT 730 Series from ERWEKA is an innovative solution designed for automated disintegration testing of pharmaceutical tablets in laboratory and R&D environments. It features a unique cable-free AirBasket system that seamlessly integrates with the equipment’s reliable waterbath technology, providing precise control over testing conditions. Ideal for pharmaceutical manufacturers and research labs, the ZT 730 Series ensures compliance with USP/EP standards for immediate-release and enteric-coated tablets. Its intuitive 7-inch touchscreen interface allows for easy navigation and management of up to 200 different test methods. With corrosion-resistant materials, the equipment is suitable for use in acidic environments, enhancing its durability and versatility. Optional configurations include single or dual test stations, and Type A or B baskets, allowing for tailored solutions specific to production needs.

Benefits

  • Enhances quality assurance with precise, automated disintegration testing.
  • Streamlines operations with intuitive touch-screen control, reducing user training time.
  • Customizable testing options meet varied product specifications, improving operational flexibility.
  • Durable and resistant to corrosive media, increasing equipment lifespan.
  • Maintains regulatory compliance with USP/EP standards, ensuring market readiness.

General


Applications
Supplements,Pharmaceutical tablets
End products
Mineral supplements,Enteric-coated tablets,Vitamin supplements,Immediate-release tablets
Steps before
Media Preparation,Pre-heating
Steps after
Data Storage,Result Analysis
Input ingredients
standard tablets,bigger tablets,acidic media,water
Output ingredients
disintegration time,test results
Market info
ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.

Technical Specifications


Test Stations
1 (ZT 731) or 2 (ZT 732)
Display
7" touch display
Memory Capacity
4 GB for 100 products/methods and approx. 1 million test results
Strokes per Minute
30 ± 1 strokes/min
Stroke Height
55 ± 2 mm
Basket Types
AirBasket type A (6 test tubes) or type B (3 test tubes)
Temperature Sensor
External PT 100
Heating System
Integrated flow-through
Automation
Cable-free AirBasket with automatic determination of disintegration time
Waterbath Technology
Thermal inertia of water

Operating Characteristics


Working Mechanism
Magnets and sensors for disintegration detection
Integrated Steps
Flow-through heating system
Automation Level
Automatic determination of disintegration time
Batch vs. Inline Operation
Batch
Cleaning Method
Dishwasher proof,sealed electronics compartment
Changeover Time
Ready to test within seconds


USP Standards
USP/EP
Dishwasher Proof
Yes

Physical Characteristics


Basket type
AirBasket Type A or B
Test station availability
1 (ZT 731) or 2 (ZT 732) test stations
Touch display
7" touch display
Control panel type
Intuitive touch interface
Footprint
Compact
Waterbath technology
Integrated flow-through heating system
Machine configuration
Cable-free AirBasket setup

Custom Options


Control panel type
7" touch display
Integration possibilities
Memory for products and methods
Test station configuration
One (ZT 731) or two (ZT 732) test stations
Basket type options
Type A (6 test tubes) or Type B (3 test tubes)
Heat system compatibility
Integrated flow-through heating system
