Automated clipped netting system for meat packaging

Enhance your packaging line with a system designed for rapid and precise netting and clipping, ensuring consistent quality and efficiency in meat and food processing operations.

Automates Netting, Clipping, and Packaging

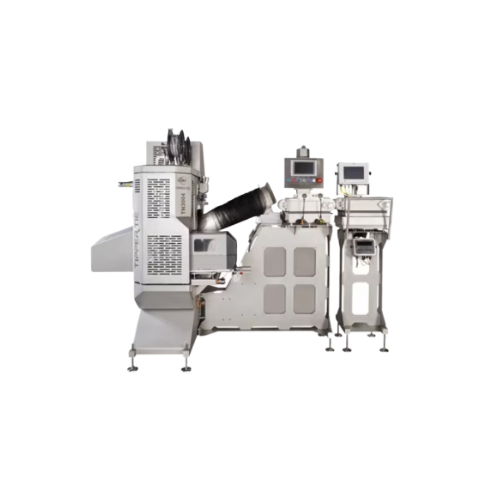

The TIPPER TIE TN3004 Clipped Netting & Packaging System from Tipper Tie is engineered for efficiency and reliability in food packaging applications. It automates netting, clipping, and labeling processes, crucial for meat processing and packaging facilities. The TN3004 enhances production lines with a high-speed capacity of up to 12 pieces per minute, supported by its modern conveyor and electric feed system, which replaces pneumatic motors for reduced air requirements and higher control. This equipment significantly minimizes waste during operation, fostering a more sustainable packaging approach.

Applications range from ready meals and seafood to plant-based products and oils. Its robust stainless-steel construction provides superior resistance to corrosion and adheres to stringent hygiene standards, with an innovative design that facilitates easy cleaning. Featuring PLC-controlled automation with Sigma IPC and LabelPak for streamlined operational management, the system offers flexibility and precision through its automated handle maker and double-clipper mechanisms. The TN3004 comes equipped with options for an integrated printer or tagger, allowing real-time data printing, enhancing traceability, and effectively reducing operator intervention to optimize labor costs.

Benefits

  • Increases efficiency with high-speed packaging, handling up to 12 pieces per minute.
  • Minimizes waste through precise netting and clipping, enhancing sustainability.
  • Cuts labor costs by requiring only one operator for dual-machine operation.
  • Enhances hygiene with easy-to-clean stainless steel construction, reducing contamination risk.
  • Streamlines operations with integrated labeling and real-time data management.

General


Applications
Seafood,Ready meals,Sauces,Meat,Fruits,Oils,Nuts,Plant-based protein,Fresh cut produce,Dressings,Poultry,Seasonings
End products
Salmon fillets,Sliced vegetables,Tofu blocks,Olive oil bottles,Whole roasted chicken,Tomato sauce jars,Salad dressings,Shelled nuts,Microwave dinners,Beef sausages,Packaged fruit salads,Herb seasoning packets
Steps before
Grinding,Mixing,Injection,Marination,Forming
Steps after
Labeling,Packing,X-ray Food Inspection,Weighing,Bagging
Input ingredients
netting,product,clips,tags
Output ingredients
netted package,clipped package,labeled package,uniform handle,tight-fitted packaging
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Automation
Ready for maximum automation,robot-fed
Speed
12 pieces per minute
Motor Type
High torque multi-pole motors
Construction Material
Stainless steel and non-corrosive materials
Cleaning Method
Hygienic design,easy cleaning
Labeling System
Sigma IPC and LabelPak software
Product Handling
Automatic double-clipper,automatic handle maker
Printer
Built-in printer or tagger (optional)
Control System
Allen Bradley controls
Conveyor System
Electric conveyor feed system

Operating Characteristics


Automation level
High / Robot fed
Batch vs. continuous operation
Continuous
Energy efficiency
High torque motors
Cleaning method
Improved access for cleaning
Changeover time
Quick removal and realignment of printer
Labeling sophistication
Sigma IPC and LabelPak software
Waste Reduction
Minimized netting waste
Operational Speed
Up to 12 pieces per minute
Handle making
Automatic

Material Compatibility


Cleanability
Easy to clean design
Non-corrosive material
Stainless steel

Physical Characteristics


Machine footprint
Compact
Construction Material
Stainless steel
Frame Design
I-beam frame
Feed method
Electric conveyor feed system
Automation level
Automatic
Printer Tray
Always Aligned
Netting System
Automatic
Double Clipper
Automatic
Operator Requirement
Single operator
Cleaning Accessibility
Easy access for cleaning
Motor Type
High torque multi-pole motors

Custom Options


Control panel type
Allen Bradley controls
Integration possibilities
Robot fed capability
Printer system
Built-in printer or tagger (optional)
Frame design
I-beam frame design
Labeling system
Sigma IPC and LabelPak software
