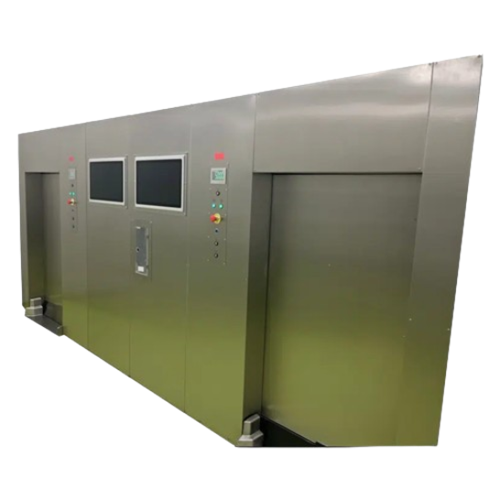

Autoclave for sterilizing medical instruments and containers

Achieve reliable sterilization for a wide range of medical and pharmaceutical loads, ensuring contamination-free end-products with precision load management and integrated bioseals.

Sterilizes and Decontaminates Diverse Medical and Pharmaceutical Loads

The versatile Autoclave from Actini Group offers a comprehensive solution for the sterilization needs of pharmaceutical, biotech, and medical industries. This autoclave specializes in processing diverse load types, including sterile injectable drugs, parenteral nutrition solutions, and sterile medical instruments. It operates using saturated steam, ventilated air/steam, and superheated water technologies, accommodating both solid and liquid products. With capacities ranging from 30 to 24,000 liters, it suits any scale of operation. Fully automated, the system integrates seamlessly into production lines, complete with recipe management and logging. Built to PED 2014/68/EU and CODAP standards, this autoclave meets stringent GMP compliance. Available with various material options, it ensures durability and corrosion resistance. The modular design allows for customized configurations, adapting to specific operational needs with optional loading baskets and configurable door openings. Additionally, it offers advanced cleaning features, including H2O2 cycles for optimized maintenance and hygiene.

Benefits

  • Increases production efficiency with customizable loading solutions tailored to specific load types.
  • Enhances patient safety by ensuring aseptic conditions for sterile medical products.
  • Saves energy through optimized steam and water usage in sterilization processes.
  • Ensures regulatory compliance with GMP and PED 2014/68/EU standards.
  • Minimizes operator intervention and error with fully automatic operation and integrated recipe management.

General


Applications
Textile products,Medical devices,Laboratory instruments,Containers,Nutraceuticals,Biopharmaceuticals,Pharmaceuticals
End products
Sterile injectable drugs,Sterile pharmaceutical packaging,Ventilated laboratory containers,Filled syringes,Parenteral nutrition solutions,Sterilized fabric surgical drapes,Sterile medical instruments,Glucose solution bags
Steps before
Washing,H2O2 cycle
Steps after
Drying,Cooling,Packing
Input ingredients
open vials,unfilled syringes,caps,closures,instruments,textiles,sealed vials,solution bags,parenteral nutrition bags,filled syringes,injectable ampoules,sealed full bottles,ampoules,solid loads,liquid loads
Output ingredients
sterilized open vials,sterilized unfilled syringes,sterilized caps,sterilized closures,sterilized instruments,sterilized textiles,sterilized sealed vials,sterilized solution bags,sterilized parenteral nutrition bags,sterilized filled syringes,sterilized injectable ampoules,sterilized sealed full bottles,sterilized ampoules
Market info
Actini is known for its expertise in manufacturing advanced thermal treatment systems, notably for biowaste decontamination, ensuring biosafety and compliance with rigorous environmental standards. They hold a strong reputation for innovative and reliable engineered-to-order solutions.

Technical Specifications


Capacity
30 to 24,000 liters
Form
Cylindrical,Rectangular
Technology
Steam vacuum,Ventilated (air/steam),Superheated water
Ouverture
Single or double door,Side opening,vertical downwards or upwards,hinged
Loading
Load-sized / height-adjustable / designed to HSE requirements
Loading baskets
Designed according to loads to be handled
Automatic conveying
Yes
Level loading
Yes
Design
Standard or customized
Bioseal Integration
Yes
Automation
Fully automatic with front panel
Recipe management
Yes
Logging system
Batch reports,raw data exportable
Standards Compliance
PED 2014/68/EU,CODAP
Utilities requirement
Electricity,steam,demineralized water,compressed air,N2
Sterilizing fluid filtration
With integrity test option
Slave steam generator
If required

Operating Characteristics


Working mechanism
Saturated steam,ventilated,superheated water
Batch vs. Continuous operation
Batch
Automation level
Fully automatic with front panel
CIP/SIP
Available
Cleaning method
Washing before sterilization
Loading
Automatic conveying,load-sized
Recipe management
Batch reports,logging system

Material Compatibility


Corrosion resistance
Resistant to saturated steam
Heat resistance
Suitable for high-temperature steam
Cleanability
Compatible with CIP/SIP
Biological compatibility
Compatible with pharmaceuticals

Product type Characteristics


Container size and shape
Up to 24m³
Load types
Open vials,Unfilled syringes,Caps,closures,Instruments,Textiles
Sensitive load processing
Sealed vials,Solution bags,Parenteral nutrition bags
Material state
Solid and/or liquid

Physical Characteristics


Footprint
Adaptable
Loading baskets designed according to loads
Opening
Single or double door
Side,vertical,hinged options
Shape
Cylindrical,Rectangular
Capacity
30 to 24,000 liters
Loading
Automatic conveying,Load-sized,height-adjustable

Custom Options


Autoclave Form
Cylindrical / Rectangular
Opening Direction
Lateral / Vertical / Hinged
Door Type
Single / Double
Loading Method
Automatic conveying / Level loading
Recipe Management
Fully automatic operation with front panel
Bioseal Integration
Available
Design Environment
cGMP / Standard or Customized
Steam Technology
Steam vacuum / Ventilated (air/steam) / Superheated water
Cart Design
According to cycles and loads
Sterilizing Fluid Filtration
With integrity test option
