Aseptic sterilizers for fruit concentrates and pulp

Optimize your fruit processing by maintaining product quality and shelf life with advanced sterilization technology, ensuring aseptic conditions for sensitive purees and concentrates.

Sterilizes and Homogenizes Fruit Juices and Purees

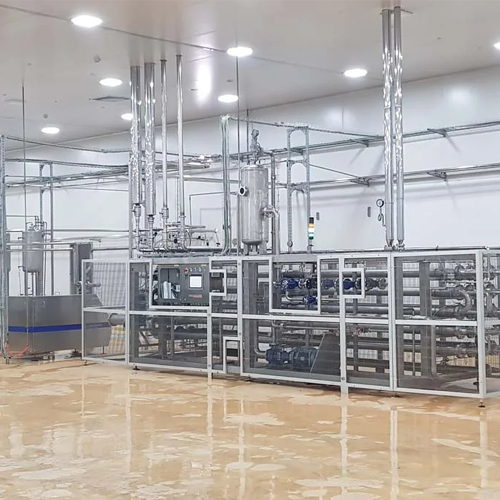

The Sterilizer POSEIDON TCMA from Tropical Food Machinery is engineered for precise and reliable treatment of fruit pulps and concentrates. Utilizing a four-tube concentric system, it provides uniform heat treatment essential for aseptic packaging. Suitable for high viscosity products like mango puree and guava juice, its processing capacity spans from 500 kg/h to 15,000 kg/h. The sterilization module features automated controls for seamless integration into continuous operations. Constructed from AISI 316 stainless steel, it offers robust corrosion resistance. With a focus on energy efficiency, the system employs a steam-powered superheated water circuit for heat treatment, ensuring minimal energy consumption. The POSEIDON TCMA’s design also allows for easy integration with upstream and downstream processes like deaeration and homogenization, making it an indispensable component in juice production and fruit processing lines.

Benefits

  • Ensures product safety for aseptic packaging, minimizing contamination risks.
  • Accommodates high viscosity products, expanding your production capabilities.
  • Streamlines operations through automated controls, reducing manual intervention.
  • Optimizes energy usage by utilizing a steam-powered heating system.
  • Built with high-grade stainless steel for superior corrosion resistance and longevity.

General


Applications
Concentrated juice,Jam,Fruit beverage,Fruit purée,Fruit pieces,Mango puree,Fruit pulp,Guava puree,Tomato sauce,Fruit juice,Fruit concentrate
End products
Guava purée spread,Pineapple pieces in syrup,Mango pulp concentrate,Strawberry jam,Mango fruit bar,Aseptic guava juice,Peach purée,Aseptic mango juice,Guava juice concentrate,Mango nectar,Guava nectar,Tomato ketchup
Steps before
Extraction,Collection,Circulation,Filtering,Homogenization
Steps after
Aseptic Packaging,Cooling,Packing
Input ingredients
fruit pulp,fruit concentrate,mango puree,guava puree,high viscosity juice
Output ingredients
aseptically packaged fruit pulp,aseptically packaged fruit concentrate,aseptic mango puree,aseptic guava puree,aseptically packaged high viscosity juice
Market info
Tropical Food Machinery is known for manufacturing engineered-to-order (ETO) industrial equipment, specializing in fruit and vegetable processing machinery. They are reputed for innovation, quality, and global service in the food processing industry.

Technical Specifications


Work Capacity
500–15,000 kg/h
Inlet Temperature
> 50 °C
Maximum Sterilization Temperature
> 115 °C
Holding Time
Up to 60 seconds
Cooling Treatment
Mains water and chilled water circuit
Product Outlet Temperature
30 °C
Material
AISI 316 stainless steel
Automation
Automated management
Heat Treatment
Steam powered superheated water circuit

Operating Characteristics


Automation level
Automated with PLC system
Batch vs. continuous operation
Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP
Processing viscosity
Processes high viscosity juices and purées
Homogenization
Includes homogenizer
Cooling Treatment
Mains and chilled water circuit
Heat Treatment
Steam powered superheated water circuit
Holding Time
Up to 60 seconds

Material Compatibility


Abrasion resistance
AISI 316 stainless steel
Corrosive resistance (e.g. acids)
AISI 316 stainless steel
Cleanability
AISI 316 stainless steel for hygienic design
Biological compatibility
AISI 316 stainless steel is suitable for food processing

Physical Characteristics


Machine footprint
Customizable based on the line
Tank shape and size
Concentric tube design
Control panel type
Automated with PLC
Discharge method
Automated system
Material
AISI 316 stainless steel

Custom Options


Control panel type
Automated / PLC
Material construction
AISI 316 stainless steel
System integration
Compatible with all TFM Lines
